KP61-PGHGS (1981)

Toyota Starlet

Production Aug 1981 - Aug 1982
Engine 4KU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4KU

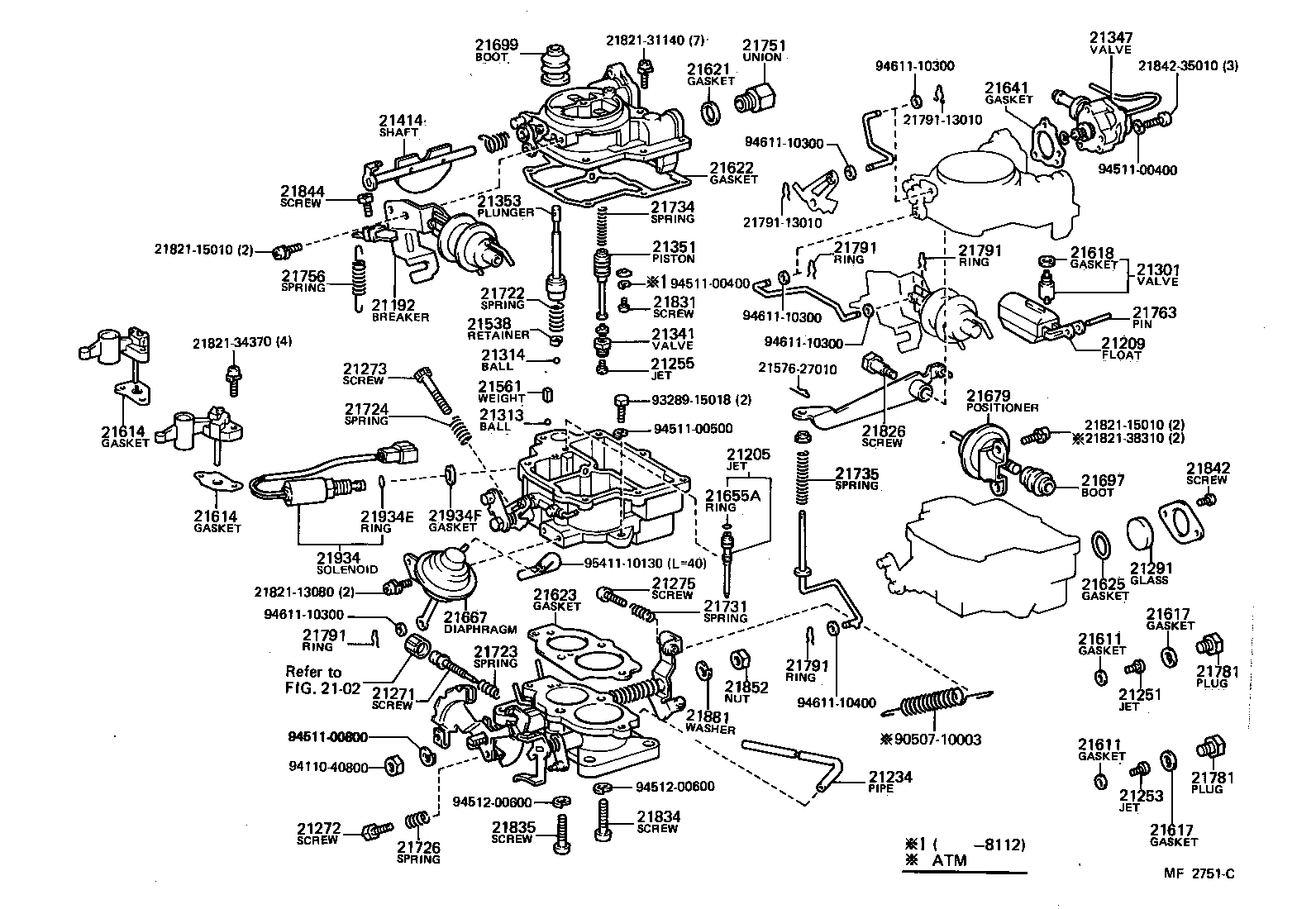

Click highlighted areas on diagram

diagram 2102 21192 21205 21209 21234 21251 21253 21255 21271 21272 21273 21275 21291 21301 21313 21314 21341 21347 21351 21353 21414 21538 21561 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21622 21623 21625 21641 21655A 21667 21679 21697 21699 21722 21723 21724 21726 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21791 21791 2179113010 2179113010 2182113080 2182115010 2182115010 2182131140 2182134370 2182138310 21826 21831 21834 21835 21842 2184235010 21844 21852 21881 21934 21934E 21934F 9050710003 9328915018 9411040800 9451100400 9451100400 9451100500 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9461110400 9541110130
Part # Description Qty Price
21209 - FLOAT SUB-ASSY
21209-24480

3KHJ,4KU,4KJ..KP6#

 1
21234 - PIPE OR HOSE
21234-24361

4KU..KP61

 1
21253 - JET, 2ND MAIN
90999-42150

4KU..KP61

 1
21271 - SCREW, IDLE ADJUSTING
21271-24470

3KHJ,4K#..KP6#

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21814-33010

3KHJ,4KU,4KJ..KP6#

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-24230

3KHJ,4KU..KP6#

 1
21275 - SCREW, ADJUSTING
21275-24360

3KHJ,4KU..KP6#

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-24360

3KHJ,4KU..KP6#

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

3KHJ,4KU,4KJ..KP6#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

3KHJ,4KU,4KJ..KP6#

 1
21353 - PLUNGER, PUMP
21305-22011

3KHJ,4KU..KP6#

 1
21414 - SHAFT, CHOKE
21054-13010

4KJ,4KU..KP61

 1
21538 - RETAINER, BALL CHECK
21538-31010

3KHJ,4KU,4KJ..KP6#

 1
21561 - WEIGHT, PUMP DISCHARGE
21561-22010

3KHJ,4KU,4KJ..KP6#

 1
21611 - GASKET, MAIN JET
21611-22010

3KHJ,4KU,4KJ..KP6#

 2
21611 - GASKET, MAIN JET
21611-22010

3KHJ,4KU,4KJ..KP6#

 2
21614 - GASKET, VENTURI
21614-24360

3KHJ,4KU,4KJ..KP6#

2ND

 1
21614-22010

3KHJ,4KU,4KJ..KP6#

1ST

 1
21614 - GASKET, VENTURI
21614-24360

3KHJ,4KU,4KJ..KP6#

2ND

 1
21614-22010

3KHJ,4KU,4KJ..KP6#

1ST

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

3KHJ,4KU,4KJ..KP6#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

3KHJ,4KU,4KJ..KP6#

 2
21618 - GASKET, NEEDLE VALVE SEAT
21618-24030

3KHJ,4KU..KP6#

 1
21621 - GASKET, UNION NIPPLE
21633-24030

3KHJ,4KU,4KJ..KP6#

 1
21622 - GASKET, AIR HORN
21622-24360

3KHJ,4KU..KP6#

 1
21667 - DIAPHRAGM
21667-13010

4KU..KP61

 1
21679 - POSITIONER
21679-13010

4KU..KP61

 1
21697 - BOOT(FOR SLIDING ROD)
21699-41010

4KJ,4KU..KP61

 1
21699 - BOOT(FOR PUMP PLUNGER)
21699-21061

3KHJ,4KU..KP6#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

3KHJ,4KU,4KJ..KP6#

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

3KHJ,4KU,4KJ..KP6#

 1
21724 - SPRING, THROTTLE ADJUSTING
21864-24230

3KHJ,4KU,4KJ..KP6#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

3KHJ,4KU,4KJ..KP6#

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21864-24010

3KHJ,4KU,4KJ..KP6#

 1
21735 - SPRING, PUMP ARM
21735-22010

4KJ,4KU..KP61

 1
21751 - UNION, NIPPLE
21751-24034

3KHJ,4KU,4KJ..KP6#

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21864-13010

4KU..KP61

 1
21763 - PIN, FLOAT LEVER
21763-38010

3KHJ,4KU,4KJ..KP6#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020

3KHJ,4KU..KP6#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020

3KHJ,4KU..KP6#

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3KHJ,4KU,4KJ..KP6#

 5
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3KHJ,4KU,4KJ..KP6#

 5
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3KHJ,4KU,4KJ..KP6#

 5
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3KHJ,4KU,4KJ..KP6#

 5
21826 - SCREW, PUMP ARM SET
21826-24470

4KJ,4KU..KP61

 1
21831 - SCREW, POWER PISTON STOP
21842-33010

3KHJ,4KU..KP6#

 1
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31010

3KHJ,4KU,4KJ..KP6#

 1
21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21835-40010

3KHJ,4KU,4KJ..KP6#

 1
21852 - NUT, THROTTLE LEVER SET
21852-30010

3KHJ,4KU,4KJ..KP6#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

3KHJ,4KU,4KJ..KP6#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-24360

3KHJ,4KU..KP6#

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

3KHJ,4KU,4KJ..KP6#

 1
21934F - GASKET
21617-10010

3KHJ,4KU,4KJ..KP6#

 1
Common parts
21576-27010
21791-13010
21821-13080
21821-15010
21821-31140
21821-34370
21821-38310
21842-35010
90507-10003
93289-15018
94110-40800
94511-00400
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400
95411-10130
Linked diagrams
2102
