KP61-PGCNS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

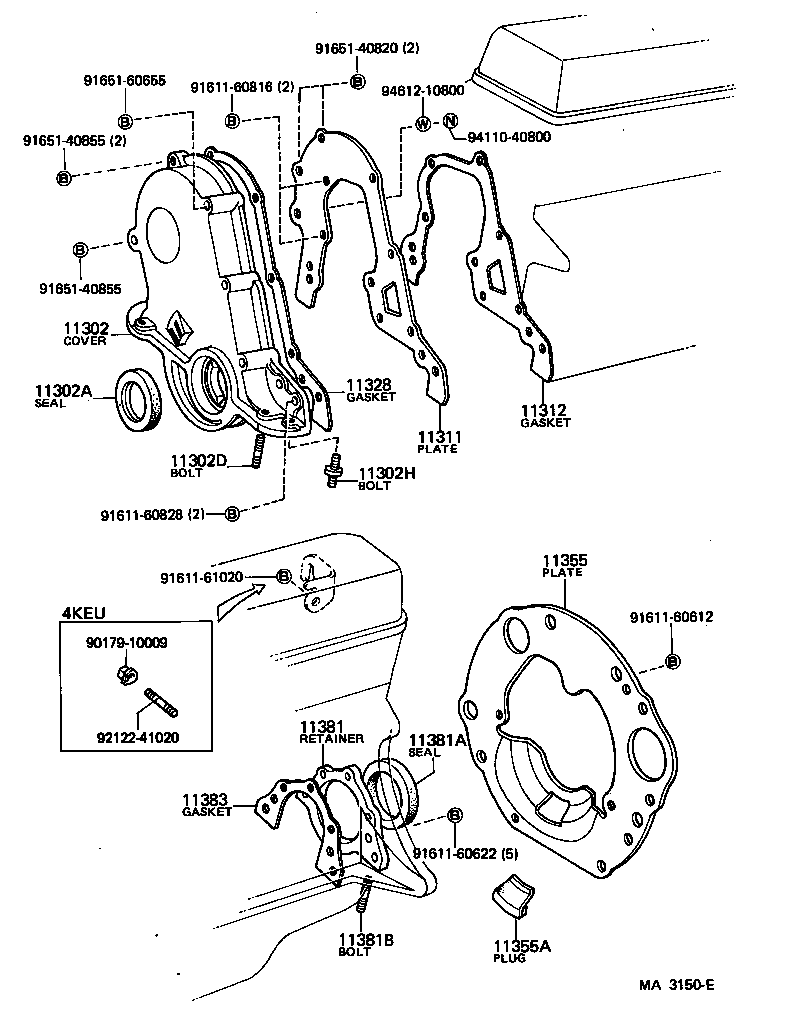

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302H 11311 11312 11328 11355 11355A 11381 11381A 11381B 11383 9017910009 9161160612 9161160622 9161160816 9161160828 9161161020 9165140820 9165140855 9165140855 9165160655 9212241020 9411040800 9461210800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-13010

3KHJ,4KU..KP6#

 1
11321-13030

3KHJ,4KU..KP6#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

3KHJ,4K#..KP6#

HTC 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
92132-60614

4KU..KP61

L=26,S=12&12

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06006

3KHJ,4K#..KP6#

L=26.4,S=12&12

 2
11311 - PLATE, FRONT END
11311-13010

3KHJ,4K#..KP6#

 1
11312 - GASKET, FRONT END PLATE
11312-13010

3KHJ,4KU..KP6#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-13010

3KHJ,4KU..KP6#

 1
11355 - PLATE, REAR END
11355-24041

4KU..KP61..2FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01215

4KU..KP61..2FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-13010

3KHJ,4K#..KP6#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70001

3KHJ,4K#..KP6#

HTC 70 92 12

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06035

3KHJ,4K#..KP6#

L=23,S=12&9

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-13010

3KHJ,4K#..KP6#

 1
Common parts
90179-10009
91611-60612
91611-60622
91611-60816
91611-60828
91611-61020
91651-40820
91651-40855
91651-60655
92122-41020
94110-40800
94612-10800
