KP61-PGCGS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1981
Engine
4KU
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7802-8108)2FC

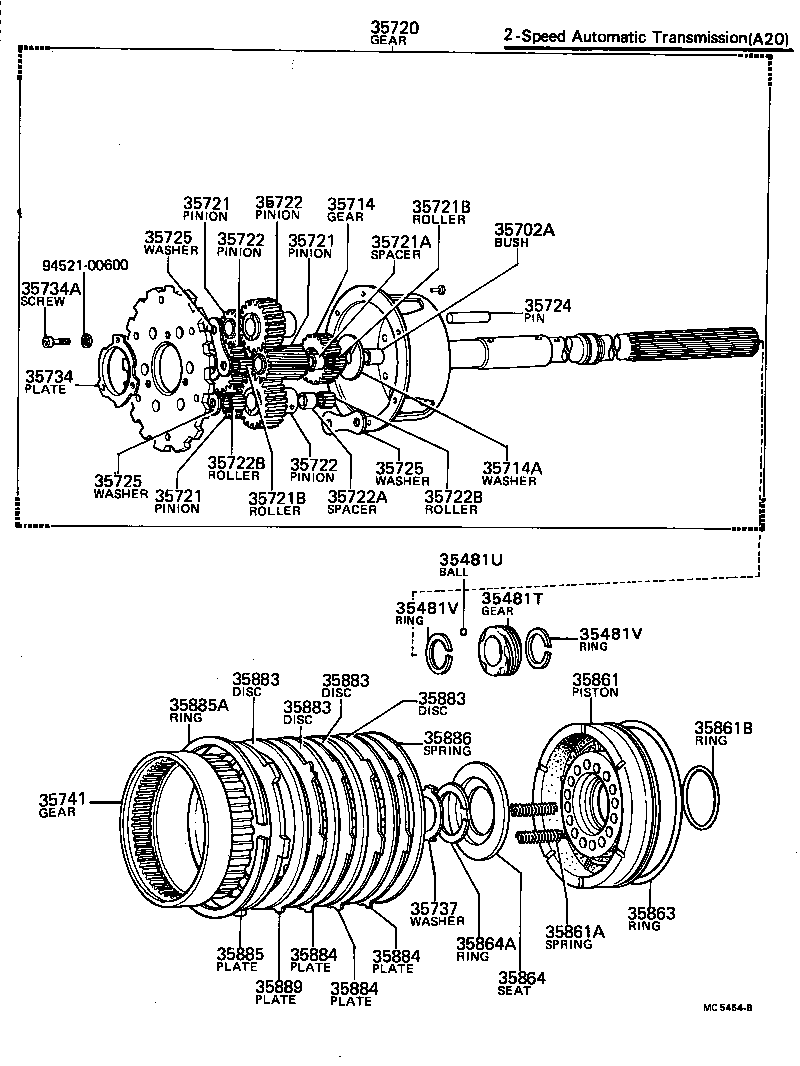

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35481T - GEAR, SPEEDMETER DRIVE (ATM) | ||||
| 33481-14010 |
KP61..2FC N=6 |
1 | ||
| 33481-20080 |
KP61..2FC N=6 |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-05006 |
KP61..2FC |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-21066 |
KP61..2FC |
2 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-21066 |
KP61..2FC |
2 | ||
| 35702A - BUSH, BIMETAL FORMED (FOR PLANETARY OUTPUT SHAFT) | ||||
| 90999-73040 |
KP61..2FC |
1 | ||
| 35714 - GEAR, INPUT SUN | ||||
| 35714-12010 |
KP61..2FC |
1 | ||
| 35714A - WASHER (FOR INPUT SUN GEAR THRUST) | ||||
| 90209-10053 |
KP61..2FC |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-20031 |
KP61..2FC |
1 | ||
| 35721 - PINION, PLANETARY LONG | ||||
| 35721-12010 |
KP61..2FC |
3 | ||
| 35721 - PINION, PLANETARY LONG | ||||
| 35721-12010 |
KP61..2FC |
3 | ||
| 35721A - SPACER (FOR PLANETARY LONG PINION) | ||||
| 90560-08220 |
KP61..2FC |
3 | ||
| 35721B - ROLLER (FOR PLANETARY LONG PINION) | ||||
| 90361-02046 |
KP61..2FC |
96 | ||
| 35721B - ROLLER (FOR PLANETARY LONG PINION) | ||||
| 90361-02046 |
KP61..2FC |
96 | ||
| 35722 - PINION, PLANETARY SHORT | ||||
| 35722-12010 |
KP61..2FC |
3 | ||
| 35722 - PINION, PLANETARY SHORT | ||||
| 35722-12010 |
KP61..2FC |
3 | ||
| 35722 - PINION, PLANETARY SHORT | ||||
| 35722-12010 |
KP61..2FC |
3 | ||
| 35722A - SPACER (FOR PLANETARY SHORT PINION) | ||||
| 90560-08220 |
KP61..2FC |
3 | ||
| 35722B - ROLLER (FOR PLANETARY SHORT PINION) | ||||
| 90361-02046 |
KP61..2FC |
96 | ||
| 35722B - ROLLER (FOR PLANETARY SHORT PINION) | ||||
| 90361-02046 |
KP61..2FC |
96 | ||
| 35724 - PIN, PLANETARY SHORT PINION | ||||
| 35724-12010 |
KP61..2FC |
6 | ||
| 35725 - WASHER, PLANETARY PINION THRUST, NO.1 | ||||
| 35725-12010 |
KP61..2FC |
6 | ||
| 35725 - WASHER, PLANETARY PINION THRUST, NO.1 | ||||
| 35725-12010 |
KP61..2FC |
6 | ||
| 35725 - WASHER, PLANETARY PINION THRUST, NO.1 | ||||
| 35725-12010 |
KP61..2FC |
6 | ||
| 35734 - PLATE, PLANETARY PINION PIN LOCK | ||||
| 35734-12010 |
KP61..2FC |
1 | ||
| 35734A - SCREW (FOR PLANETARY PINION PIN LOCK PLATE) | ||||
| 90154-60006 |
KP61..2FC |
3 | ||
| 35737 - WASHER, PLANETARY CARRIER THRUST | ||||
| 35737-12010 |
KP61..2FC |
1 | ||
| 35741 - GEAR, REVERSE RING | ||||
| 35741-12010 |
KP61..2FC |
1 | ||
| 35861 - PISTON, REVERSE | ||||
| 35861-20011 |
KP61..2FC |
1 | ||
| 35861A - SPRING, COMPRESSION (FOR REVERSE PISTON BACK) | ||||
| 90501-10320 |
KP61..2FC |
16 | ||
| 35861B - RING, O (FOR REVERSE PISTON INNER SEAL) | ||||
| 90301-44104 |
KP61..2FC |
1 | ||
| 35863 - RING, REVERSE PISTON OIL SEAL, OUTER | ||||
| 35863-12010 |
KP61..2FC |
1 | ||
| 35864 - SEAT, REVERSE PISTON RETURN SPRING | ||||
| 35864-12010 |
KP61..2FC |
1 | ||
| 35864A - RING, SHAFT SNAP (FOR OUTPUT) | ||||
| 90520-40078 |
KP61..2FC |
1 | ||
| 35883 - DISC, REVERSE CLUTCH | ||||
| 35883-12011 |
KP61..2FC |
4 | ||
| 35883 - DISC, REVERSE CLUTCH | ||||
| 35883-12011 |
KP61..2FC |
4 | ||
| 35883 - DISC, REVERSE CLUTCH | ||||
| 35883-12011 |
KP61..2FC |
4 | ||
| 35883 - DISC, REVERSE CLUTCH | ||||
| 35883-12011 |
KP61..2FC |
4 | ||
| 35884 - PLATE, REVERSE CLUTCH, NO.2 | ||||
| 35884-12010 |
KP61..2FC |
3 | ||
| 35884 - PLATE, REVERSE CLUTCH, NO.2 | ||||
| 35884-12010 |
KP61..2FC |
3 | ||
| 35884 - PLATE, REVERSE CLUTCH, NO.2 | ||||
| 35884-12010 |
KP61..2FC |
3 | ||
| 35885 - PLATE, REVERSE CLUTCH PRESSURE | ||||
| 35885-12010 |
KP61..2FC |
1 | ||
| 35885A - RING, HOLE SNAP (FOR CLUTCH PLATE) | ||||
| 90521-99094 |
KP61..2FC |
1 | ||
| 35886 - SPRING, REVERSE CLUTCH CUSHION | ||||
| 35886-12010 |
KP61..2FC |
1 | ||
| 35889 - PLATE, REVERSE CLUTCH, NO.2 | ||||
| 35889-12010 |
KP61..2FC |
1 | ||
| Common parts | ||||
| 94521-00600 | ||||
