KP61-PGCDS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )3D

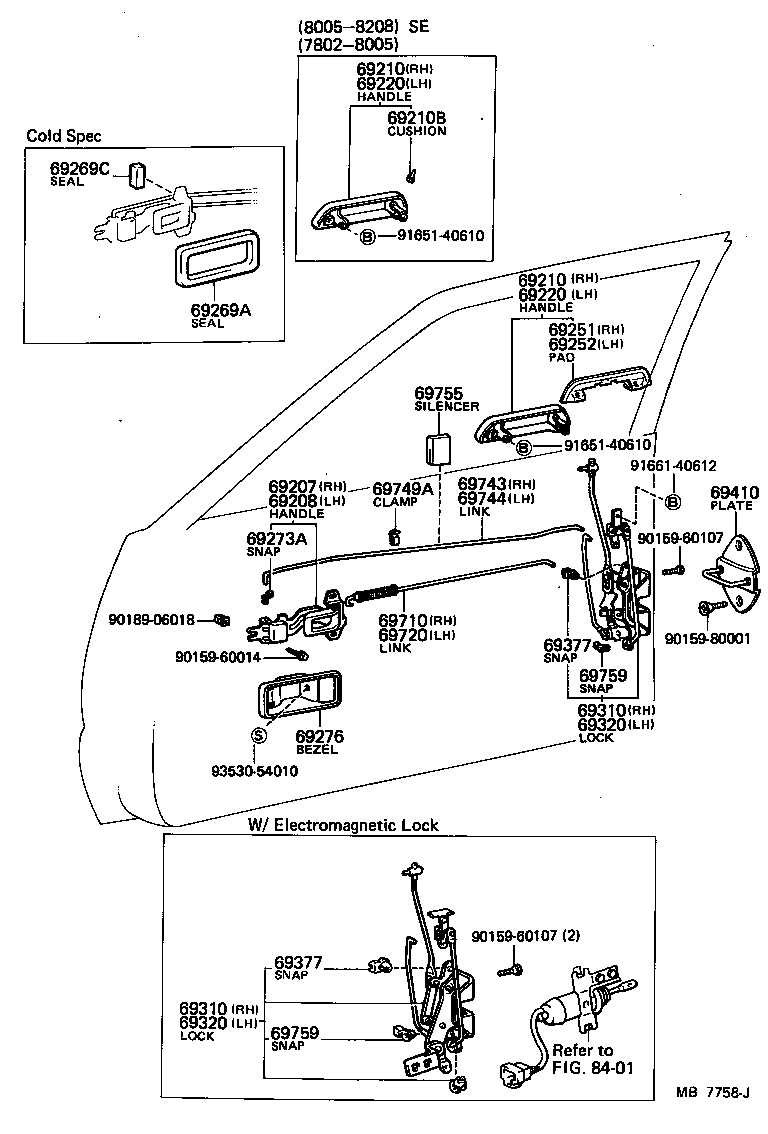

Click highlighted areas on diagram

diagram 69207 69208 69210 69210 69210B 69220 69220 69251 69252 69269A 69269C 69273A 69276 69310 69310 69320 69320 69377 69377 69410 69710 69720 69743 69744 69749A 69755 69759 69759 8401 9015960014 9015960107 9015960107 9015980001 9018906018 9165140610 9165140610 9166140612 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1001006

KP61..3D..(DLX,DXA,S,SE,XL)

LIGHT BROWN,BROWN,TRIM4#

 1
69205-1001005

KP61..3D..(DLX,S,SE,XL)

BEIGE,BEIGE,TRIM4#

 1
69205-1001004

KP61..3D..(DLX,DXA,S,SE,XL)

BLUE,BLUE,TRIM2#,4#,8#

 1
69205-1001001

KP61..3D

BLACK,BLACK,TRIM2#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1001004

KP61..3D..(DLX,DXA,S,SE,XL)

BLUE,BLUE,TRIM2#,4#,8#

 1
69206-1001005

KP61..3D..(DLX,S,SE,XL)

BEIGE,BEIGE,TRIM4#

 1
69206-1001006

KP61..3D..(DLX,DXA,S,SE,XL)

LIGHT BROWN,BROWN,TRIM4#

 1
69206-1001001

KP61..3D

BLACK,BLACK,TRIM2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-10040

KP61..S

BLACK

 1
69210-10030

KP6#

CHROME PLATED

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-10040

KP61..S

BLACK

 1
69210-10030

KP6#

CHROME PLATED

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

KP6#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-10030

KP6#

CHROME PLATED

 1
69220-10040

KP61..S

BLACK

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-10030

KP6#

CHROME PLATED

 1
69220-10040

KP61..S

BLACK

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-2001136

KP61..3D..(DLX,DXA,S,SE,XL)

LIGHT BROWN,BROWN,TRIM4#

 2
69276-2001105

KP61..3D..(DLX,S,SE,XL)

BEIGE,BEIGE,TRIM4#

 2
69276-2001104

KP61..3D..(DLX,DXA,S,SE,XL)

BLUE,BLUE,TRIM2#,4#,8#

 2
69276-2001101

KP61..3D

BLACK,BLACK,TRIM2#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-10060

KP61..3D

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-10060

KP61..3D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-10060

KP61..3D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-10060

KP61..3D

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

KP6#

 2
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

KP6#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

KP6#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710-10040

KP61..3D

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720-10040

KP61..3D

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69733-10010

KP61..3D

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69734-10010

KP61..3D

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-12010

KP61..3D

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-10030

KP61..3D

40X50,W/SLIT

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

KP6#

 4
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

KP6#

 4
Common parts
90159-60014
90159-60107
90159-80001
90189-06018
91651-40610
91661-40612
93530-54010
Linked diagrams
8401
