KP61-PGCDS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

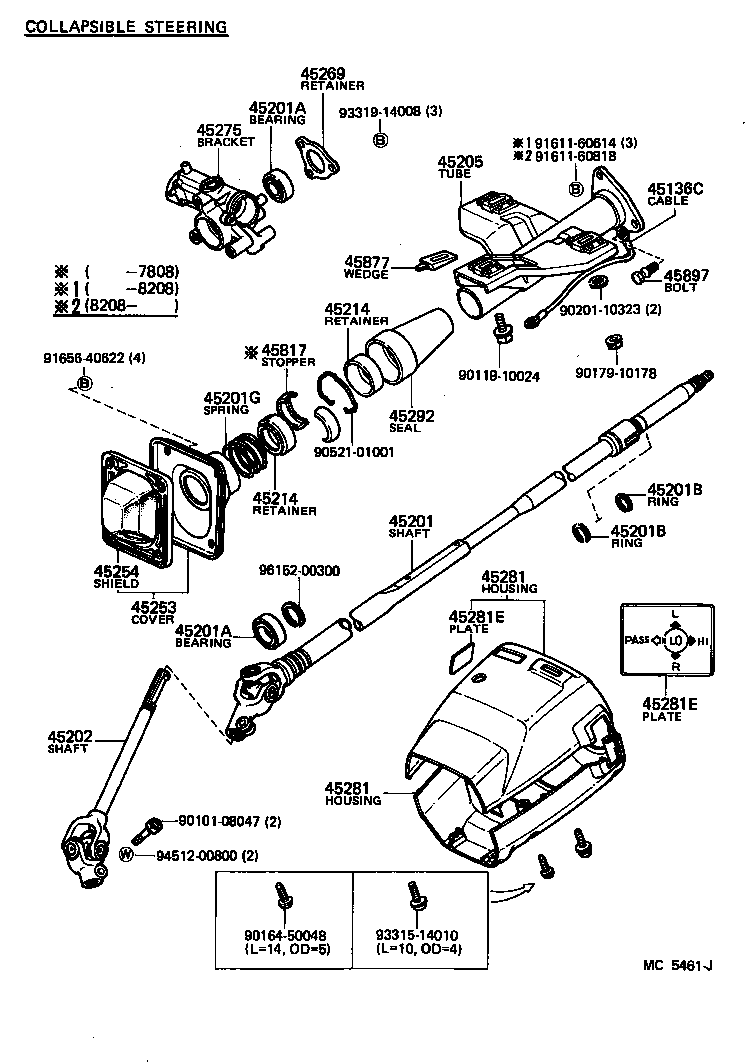

ILLUST NO. 1 OF 3(7802-8208) ; (8208- )DLX,DXA,S,SI,STD,XL

Click highlighted areas on diagram

diagram 45136C 45201 45201A 45201A 45201B 45201B 45201G 45202 45205 45214 45214 45253 45254 45269 45275 45281 45281 45281E 45281E 45292 45817 45877 45897 9010108047 9011910024 9016450048 9017910178 9020110323 9052101001 9161160614 9161160818 9165640622 9331514010 9331914008 9451200800 9615200300
Part # Description Qty Price
45136C - CABLE, BOND(FOR HORN EARTH)
90980-07129

KP6#

 1
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-10020

KP6#

COLLAPSIBLE

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-30007

KP61

LWR

 1
90363-18038

KP6#

UPR

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-30007

KP61

LWR

 1
90363-18038

KP6#

UPR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

KP6#

厚さ=1.35−1.45,T=1.35-1.45

 2
90520-17042

KP6#

厚さ=1.20,T=1.15-1.25

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

KP6#

厚さ=1.35−1.45,T=1.35-1.45

 2
90520-17042

KP6#

厚さ=1.20,T=1.15-1.25

 2
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-32003

KP6#

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-10010

KP6#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-10030

KP6#

COLLAPSIBLE

 1
45214 - RETAINER, MAIN SHAFT SPRING
45214-10010

KP6#

 2
45214 - RETAINER, MAIN SHAFT SPRING
45214-10010

KP6#

 2
45253 - COVER, STEERING COLUMN HOLE
45025-10010

KP6#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-10011

KP6#

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-20010

KP6#

 1
45269-35010

KP6#

 1
45269-35010

KP61

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45275-10020

KP6#

 1
45281 - HOUSING, STEERING COLUMN
45287-1004005

KP6#..DLX,S,SE,XL

LWR,BEIGE,BEIGE,TRIM4#

 1
45023-1001005

KP6#..DLX,S,SE,XL

UPR,BEIGE,BEIGE,TRIM4#

 1
45023-1001001

KP6#

UPR,BLACK,BLACK,TRIM2#

 1
45287-1004004

KP6#..DLX,DXA,S,SE,XL

LWR,BLUE,BLUE,TRIM2#,4#,8#

 1
45023-1001004

KP6#..DLX,DXA,S,SE,XL

UPR,BLUE,BLUE,TRIM2#,4#,8#

 1
45023-1001006

KP6#..DLX,DXA,S,SE,XL

UPR,LIGHT BROWN,BROWN,TRIM4#

 1
45287-1004006

KP6#..DLX,DXA,S,SE,XL

LWR,LIGHT BROWN,BROWN,TRIM4#

 1
45287-1004001

KP6#

LWR,BLACK,BLACK,TRIM2#

 1
45281 - HOUSING, STEERING COLUMN
45287-1004005

KP6#..DLX,S,SE,XL

LWR,BEIGE,BEIGE,TRIM4#

 1
45023-1001005

KP6#..DLX,S,SE,XL

UPR,BEIGE,BEIGE,TRIM4#

 1
45023-1001001

KP6#

UPR,BLACK,BLACK,TRIM2#

 1
45287-1004004

KP6#..DLX,DXA,S,SE,XL

LWR,BLUE,BLUE,TRIM2#,4#,8#

 1
45023-1001004

KP6#..DLX,DXA,S,SE,XL

UPR,BLUE,BLUE,TRIM2#,4#,8#

 1
45023-1001006

KP6#..DLX,DXA,S,SE,XL

UPR,LIGHT BROWN,BROWN,TRIM4#

 1
45287-1004006

KP6#..DLX,DXA,S,SE,XL

LWR,LIGHT BROWN,BROWN,TRIM4#

 1
45287-1004001

KP6#

LWR,BLACK,BLACK,TRIM2#

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

KP6#

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

KP6#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-10010

KP6#

 1
45817 - STOPPER, STEERING SHAFT THRUST
45817-10011

KP61

 1
45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)
45877-12010

KP6#

 1
Common parts
90101-08047
90119-10024
90164-50048
90179-10178
90201-10323
90521-01001
91611-60614
91611-60818
91656-40622
93315-14010
93319-14008
94512-00800
96152-00300

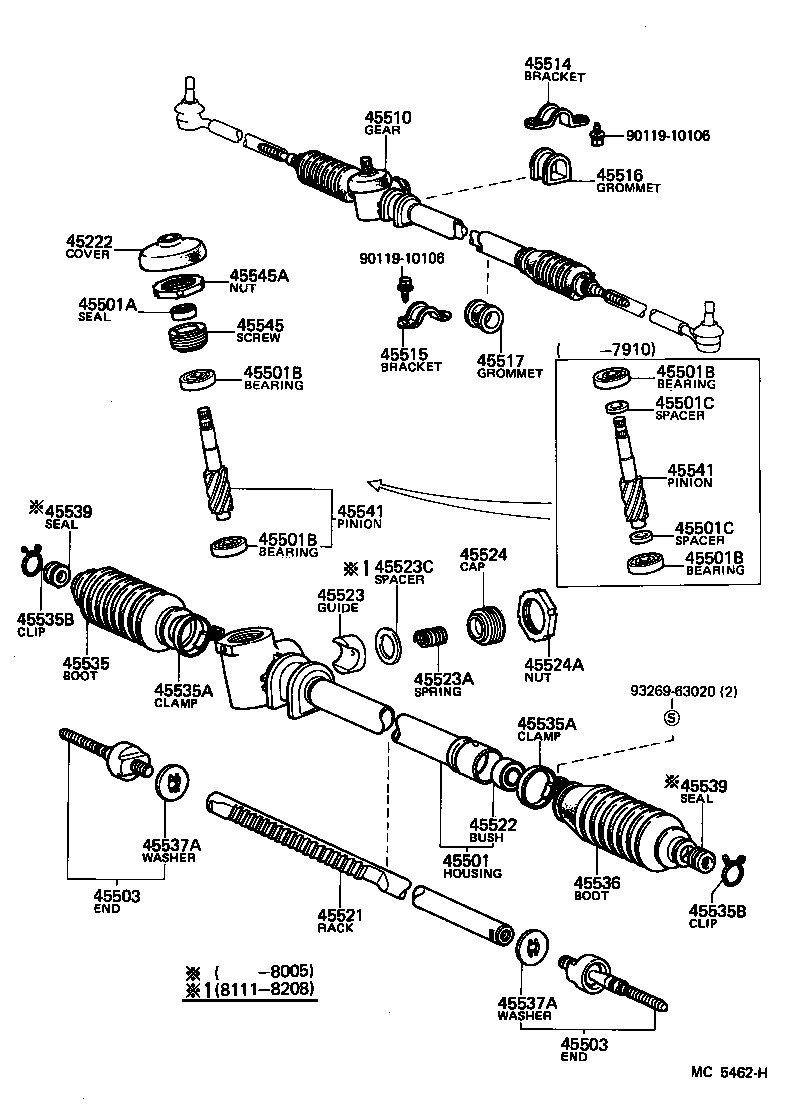

ILLUST NO. 3 OF 3(7802- )

Click highlighted areas on diagram

diagram 45222 45501 45501A 45501B 45501B 45501B 45501B 45501C 45501C 45503 45503 45510 45514 45515 45516 45517 45521 45522 45523 45523A 45523C 45524 45524A 45535 45535A 45535A 45535B 45535B 45536 45537A 45537A 45539 45539 45541 45541 45545 45545A 9011910106 9011910106 9326963020
Part # Description Qty Price
45222 - COVER, STEERING GEAR DUST
45222-10030

KP6#

 1
45501 - HOUSING SUB-ASSY, STEERING RACK
45501-10050

KP6#

 1
45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
90311-15001

KP6#

 1
45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING)
90363-15002

KP6#

LWR

 1
90363-15003

KP6#

UPR

 1
45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING)
90363-15002

KP6#

LWR

 1
90363-15003

KP6#

UPR

 1
45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING)
90363-15002

KP6#

LWR

 1
90363-15003

KP6#

UPR

 1
45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING)
90363-15002

KP6#

LWR

 1
90363-15003

KP6#

UPR

 1
45501C - SPACER(FOR STEERING RACK HOUSING)
90560-15003

KP6#

 2
45501C - SPACER(FOR STEERING RACK HOUSING)
90560-15003

KP6#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-19015

KP6#

 2
45503 - END SUB-ASSY, STEERING RACK
45503-19015

KP6#

 2
45510 - GEAR ASSY, STEERING
45510-10010

KP6#

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-10010

KP6#

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-10010

KP6#

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-10020

KP6#

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-10010

KP6#

 1
45521 - RACK, STEERING
45521-10011

KP6#

 1
45522 - BUSH, STEERING RACK
45522-10030

KP6#

 1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-10010

KP6#

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-23007

KP6#

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-10010

KP6#

 1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-36001

KP6#

 1
45535 - BOOT, STEERING RACK, NO.1
45535-10020

KP6#

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90461-10273

KP6#

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90461-10273

KP6#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19122

KP6#

 2
90467-28002

KP6#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19122

KP6#

 2
90467-28002

KP6#

 2
45536 - BOOT, STEERING RACK, NO.2
45536-10020

KP6#

 1
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14002

KP6#

 2
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14002

KP6#

 2
45539 - GUIDE, REAR STEERING CONTROL CABLE, NO.1
45539-10010

KP6#

 2
45539 - GUIDE, REAR STEERING CONTROL CABLE, NO.1
45539-10010

KP6#

 2
45541 - PINION, STEERING
45541-10010

KP6#

 1
45541 - PINION, STEERING
45541-10010

KP6#

 1
45545 - SCREW, PINION BEARING ADJUSTING
45545-10010

KP6#

 1
45545A - NUT(FOR PINION BEARING ADJUSTING SCREW)
90179-38001

KP6#

 1
Common parts
90119-10106
93269-63020
