KP61-PGCDS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1981
Engine
4KU
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7802-8108)2FC

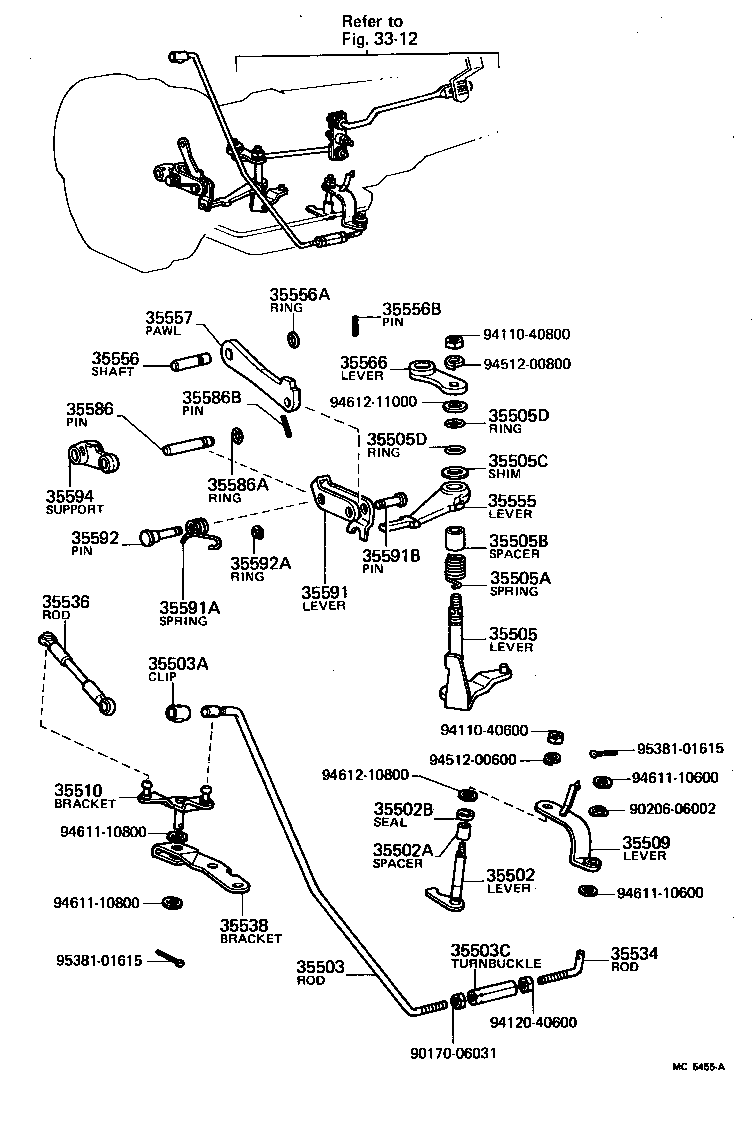

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35502 - LEVER SUB-ASSY, THROTTLE VALVE | ||||
| 35502-12010 |
KP61..2FC |
1 | ||
| 35502A - SPACER (FOR THROTTLE VALVE LEVER) | ||||
| 90560-09222 |
KP61..2FC |
1 | ||
| 35502B - SEAL, TYPE K OIL (FOR THROTTLE VALVE LEVER) | ||||
| 90313-08004 |
KP61..2FC |
1 | ||
| 35503 - ROD SUB-ASSY, THROTTLE LINK CONNECTING, 1ST | ||||
| 35503-10010 |
KP61..2FC |
1 | ||
| 35503A - CLIP(FOR THROTTLE LINK CONNECTING ROD) | ||||
| 78197-10010 |
KP61..2FC |
1 | ||
| 35503C - TURNBUCKLE(FOR THROTTLE LINK CONNECTING ROD) | ||||
| 90587-06001 |
KP61..2FC |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-12010 |
KP61..2FC |
1 | ||
| 35505A - SPRING, TORSION (FOR MANUAL VALVE LEVER) | ||||
| 90508-29099 |
KP61..2FC |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-11221 |
KP61..2FC |
1 | ||
| 35505C - SHIM (FOR MANUAL VALVE LEVER) | ||||
| 90564-11111 |
KP61..2FC |
1 | ||
| 35505D - RING, O (FOR MANUAL VALVE LEVER) | ||||
| 90301-07099 |
KP61..2FC |
2 | ||
| 35505D - RING, O (FOR MANUAL VALVE LEVER) | ||||
| 90301-07099 |
KP61..2FC |
2 | ||
| 35509 - LEVER SUB-ASSY, THROTTLE VALVE, OUTER | ||||
| 35509-10010 |
KP61..2FC |
1 | ||
| 35510 - BRACKET ASSY, THROTTLE LINK BELLCRANK, NO.2 | ||||
| 35055-12012 |
KP61..2FC |
1 | ||
| 35534 - ROD, THROTTLE LINK CONNECTING, 1ST | ||||
| 35535-12030 |
KP61..2FC |
1 | ||
| 35536 - ROD, THROTTLE LINK CONNECTING, 3RD | ||||
| 35536-12010 |
KP61..2FC |
1 | ||
| 35538 - BRACKET, THROTTLE LINK BELLCRANK, NO.1 | ||||
| 35538-12022 |
KP61..2FC |
1 | ||
| 35555 - LEVER, TOGGLE OPERATING | ||||
| 35555-12010 |
KP61..2FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12011 |
KP61..2FC |
1 | ||
| 35556A - RING, O (FOR PARRING LOCK PAWL SHAFT) | ||||
| 90301-07099 |
KP61..2FC |
1 | ||
| 35556B - PIN, SLOTTED SPRING (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90254-03009 |
KP61..2FC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-12010 |
KP61..2FC |
1 | ||
| 35566 - LEVER, MANUAL VALVE CONTROL, OUTER | ||||
| 35566-12010 |
KP61..2FC |
1 | ||
| 35586 - PIN, TOGGLE LEVER SUPPORT | ||||
| 35586-12010 |
KP61..2FC |
1 | ||
| 35586A - RING, O (FOR TOGGLE LEVER SUPPORT PIN) | ||||
| 90301-05103 |
KP61..2FC |
1 | ||
| 35586B - PIN, THROTTED SPRING (FOR TOGGLE LEVER SUPPORT PIN) | ||||
| 90254-03010 |
KP61..2FC |
1 | ||
| 35591 - LEVER, TOGGLE | ||||
| 35591-12010 |
KP61..2FC |
1 | ||
| 35591A - SPRING, TORSION (FOR TOGGLE LEVER) | ||||
| 90508-10098 |
KP61..2FC |
1 | ||
| 35591B - PIN (FOR TOGGLE LEVER) | ||||
| 90249-06021 |
KP61..2FC |
1 | ||
| 35592 - PIN, TOGGLE LEVER | ||||
| 35592-12010 |
KP61..2FC |
1 | ||
| 35592A - RING, E (FOR TOGGLE LEVER PIN STOPPER) | ||||
| 96160-00400 |
KP61..2FC |
1 | ||
| 35594 - SUPPORT, TOGGLE LEVER | ||||
| 35594-12010 |
KP61..2FC |
1 | ||
| Common parts | ||||
| 90170-06031 | ||||
| 90206-06002 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94120-40600 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94611-10600 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
| 94612-11000 | ||||
| 95381-01615 | ||||
| Linked diagrams | ||||
| 3312 | ||||
