KP61-PGCDS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

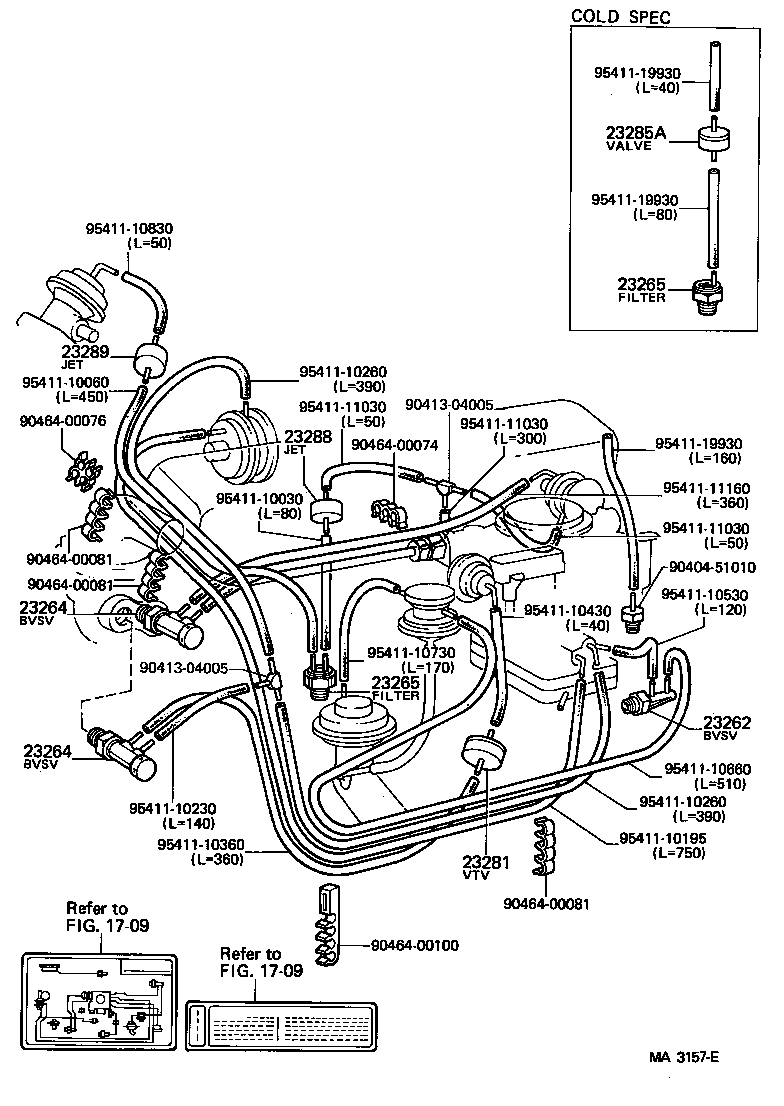

(7802-7903)4KU..2FC

Click highlighted areas on diagram

diagram 1709 1709 23262 23264 23264 23265 23265 23281 23285A 23289 9040451010 9041304005 9041304005 9046400074 9046400076 9046400081 9046400081 9046400081 9046400100 9541110030 9541110060 9541110195 9541110230 9541110260 9541110260 9541110360 9541110430 9541110530 9541110660 9541110730 9541110830 9541111030 9541111030 9541111030 9541111160 9541119930 9541119930 9541119930
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05043

4KU..KP61

 1
90925-05049

4KU..KP61

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
25820-13010

4KU..KP61..2FC

 1
25820-13010

4KU..KP61..2FC

 2
90925-05052

4KU..KP61..2FC

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
25820-13010

4KU..KP61..2FC

 1
25820-13010

4KU..KP61..2FC

 2
90925-05052

4KU..KP61..2FC

 1
23265 - FILTER, GAS, NO.1
90917-11023

4KU..KP61

 1
90917-11022

4KU..KP61

HOT AIR INTAKE,COLD SPEC

 1
23265 - FILTER, GAS, NO.1
90917-11023

4KU..KP61

 1
90917-11022

4KU..KP61

HOT AIR INTAKE,COLD SPEC

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041

4KU..KP61..2FC

 1
90925-01041

4KU..KP61

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4KU..KP61

HOT AIR INTAKE,COLD SPEC

 1
23289 - JET, NO.2
90925-04012

4KU..KP61..2FC

 2
Common parts
90404-51010
90413-04005
90464-00074
90464-00076
90464-00081
90464-00100
95411-10030
95411-10060
95411-10195
95411-10230
95411-10260
95411-10360
95411-10430
95411-10530
95411-10660
95411-10730
95411-10830
95411-11030
95411-11160
95411-19930
Linked diagrams
1709

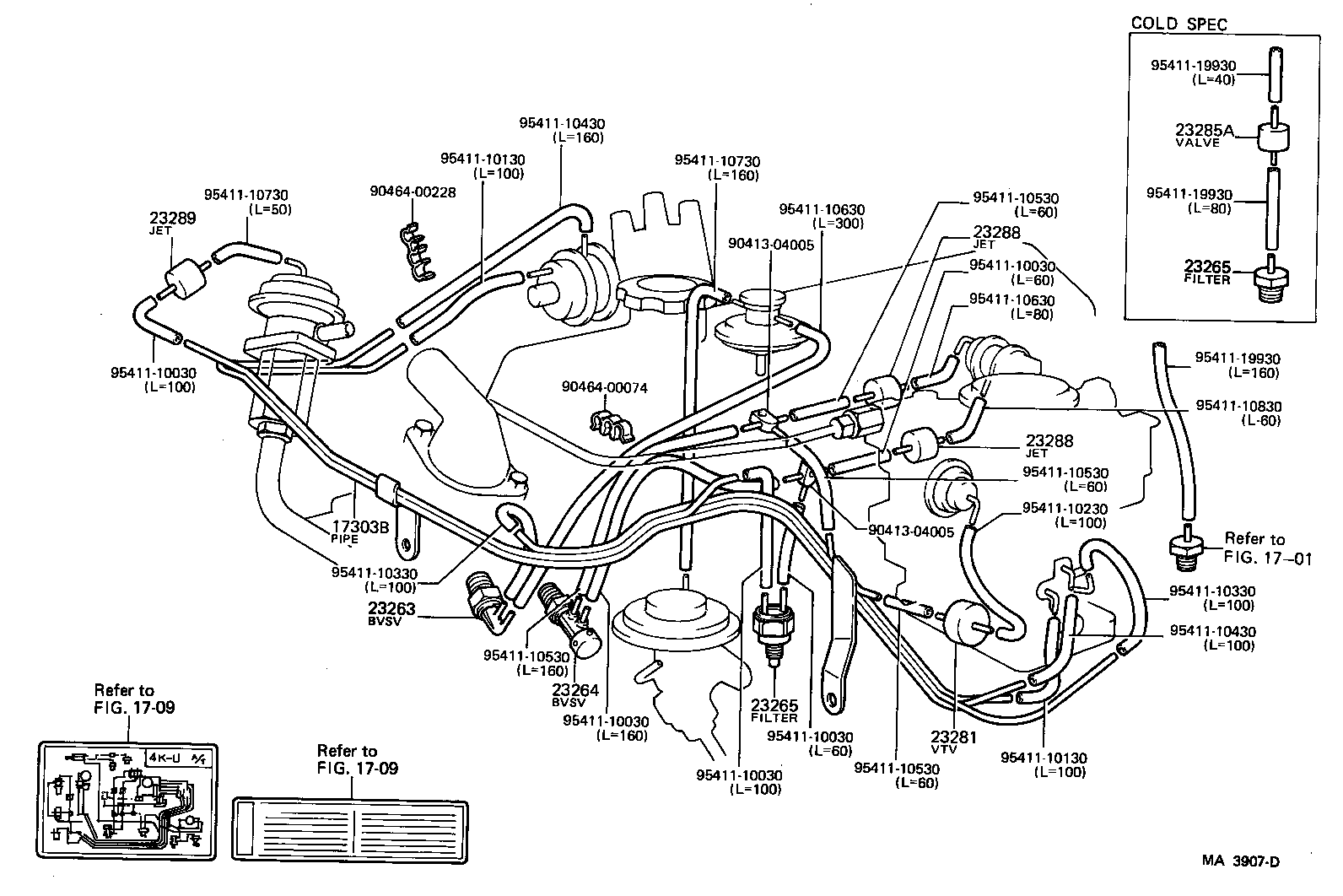

(7903-8005)4KU..2FC

Click highlighted areas on diagram

diagram 1701 1709 1709 17303B 23263 23264 23265 23265 23281 23285A 23288 23288 23289 9041304005 9041304005 9046400074 9046400228 9541110030 9541110030 9541110030 9541110030 9541110030 9541110130 9541110130 9541110230 9541110330 9541110330 9541110430 9541110430 9541110530 9541110530 9541110530 9541110530 9541110630 9541110630 9541110730 9541110730 9541110830 9541119930 9541119930 9541119930
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13041

4KU..KP61..2FC

 1
17303-13040

4KU..KP61..2FC

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05048

4KU..KP61..2FC

 1
90925-05052

4KU..KP61

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
25820-13010

4KU..KP61..2FC

 1
25820-13010

4KU..KP61..2FC

 2
90925-05052

4KU..KP61..2FC

 1
23265 - FILTER, GAS, NO.1
90917-11023

4KU..KP61

 1
90917-11022

4KU..KP61

HOT AIR INTAKE,COLD SPEC

 1
23265 - FILTER, GAS, NO.1
90917-11023

4KU..KP61

 1
90917-11022

4KU..KP61

HOT AIR INTAKE,COLD SPEC

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041

4KU..KP61..2FC

 1
90925-01041

4KU..KP61

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4KU..KP61

HOT AIR INTAKE,COLD SPEC

 1
23288 - JET, NO.1
90925-04005

4KU..KP61

 2
90925-04005

4KU..KP61

 1
23288 - JET, NO.1
90925-04005

4KU..KP61

 2
90925-04005

4KU..KP61

 1
23289 - JET, NO.2
90925-04012

4KU..KP61..2FC

 2
Common parts
90413-04005
90464-00074
90464-00228
95411-10030
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10630
95411-10730
95411-10830
95411-19930
Linked diagrams
1701
1709

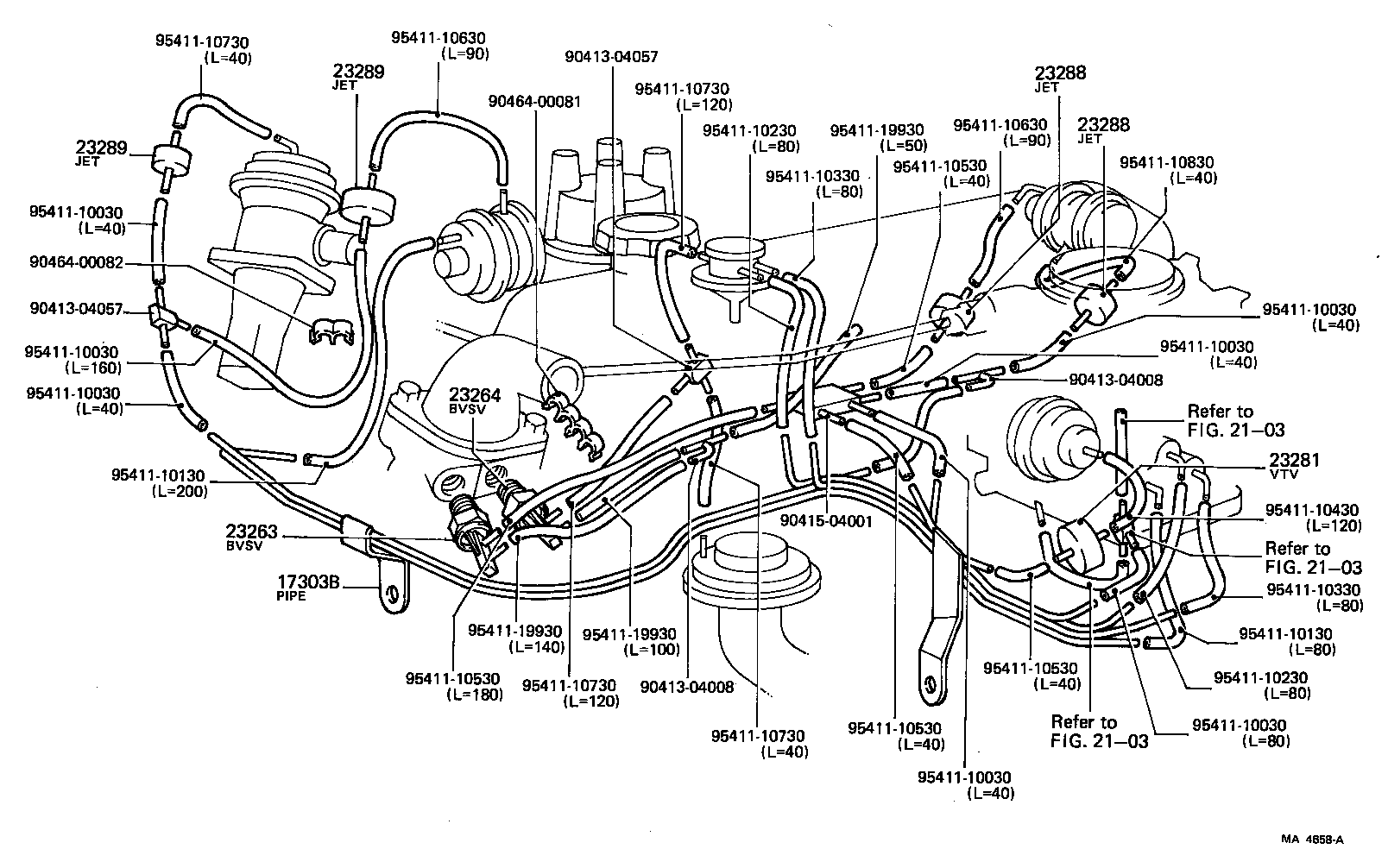

(8005-8108)4KU..2FC

Click highlighted areas on diagram

diagram 17303B 2103 2103 2103 23263 23264 23281 23288 23288 23289 23289 9041304008 9041304008 9041304057 9041304057 9041504001 9046400081 9046400082 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110130 9541110130 9541110230 9541110230 9541110330 9541110330 9541110430 9541110530 9541110530 9541110530 9541110530 9541110630 9541110630 9541110730 9541110730 9541110730 9541110730 9541110830 9541119930 9541119930 9541119930
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13041

4KU..KP61..2FC

 1
17303-13040

4KU..KP61..2FC

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05048

4KU..KP61..2FC

 1
90925-05052

4KU..KP61

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
25820-13010

4KU..KP61..2FC

 1
25820-13010

4KU..KP61..2FC

 2
90925-05052

4KU..KP61..2FC

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041

4KU..KP61..2FC

 1
90925-01041

4KU..KP61

 1
23288 - JET, NO.1
90925-04005

4KU..KP61

 2
90925-04005

4KU..KP61

 1
23288 - JET, NO.1
90925-04005

4KU..KP61

 2
90925-04005

4KU..KP61

 1
23289 - JET, NO.2
90925-04012

4KU..KP61..2FC

 2
23289 - JET, NO.2
90925-04012

4KU..KP61..2FC

 2
Common parts
90413-04008
90413-04057
90415-04001
90464-00081
90464-00082
95411-10030
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10630
95411-10730
95411-10830
95411-19930
Linked diagrams
2103

(7802- )

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082 9092501004 9092501005 9092501006 9092501008 9092501009 9092501011 9092501014 9092501015 9092501018 9092501019 9092501021 9092501027 9092501029 9092501032 9092501035 9092501036 9092501037 9092501038 9092501040 9092501041 9092501042 9092501043 9092501045 9092501046 9092501047 9092501052 9092501053 9092501055 9092501056 9092501058 9092501059 9092501060
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01004
90925-01005
90925-01006
90925-01008
90925-01009
90925-01011
90925-01014
90925-01015
90925-01018
90925-01019
90925-01021
90925-01027
90925-01029
90925-01032
90925-01035
90925-01036
90925-01037
90925-01038
90925-01040
90925-01041
90925-01042
90925-01043
90925-01045
90925-01046
90925-01047
90925-01052
90925-01053
90925-01055
90925-01056
90925-01058
90925-01059
90925-01060
