EP95-AHPXK (1998)

Toyota Starlet

Production Oct 1998 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9810- )REMIX

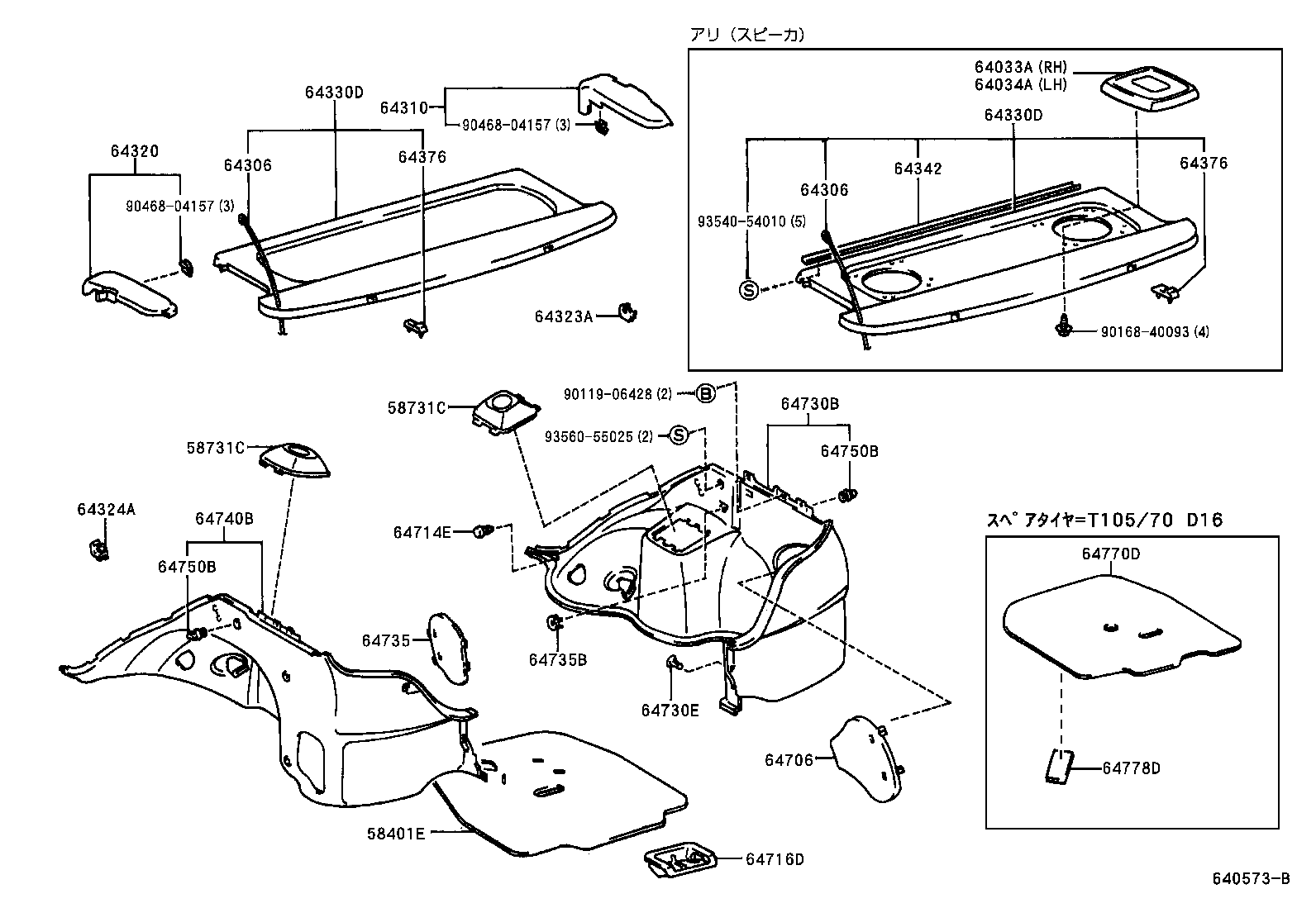

Click highlighted areas on diagram

diagram 58401E 58731C 58731C 64033A 64034A 64306 64306 64310 64320 64323A 64324A 64330D 64330D 64342 64376 64376 64706 64714E 64716D 64730B 64730E 64735 64735B 64740B 64750B 64750B 64770D 64778D 9011906428 9016840093 9046804157 9046804157 9354054010 9356055025
Part # Description Qty Price
58401E - BOARD SUB-ASSY, DECK
58410-10020

EP95..REMIX

 1
64033A - GRILLE SUB-ASSY, REAR SPEAKER, RH
64383-16040B0

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

BLUISH GRAY,TRIM1#

 1
64034A - GRILLE SUB-ASSY, REAR SPEAKER, LH
64383-16040B0

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

BLUISH GRAY,TRIM1#

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-10060

NP90..5D..4FC;EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

 2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-10060

NP90..5D..4FC;EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

 2
64310 - BRACKET, PACKAGE TRAY TRIM, RH
64310-10140B0

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
64320 - BRACKET, PACKAGE TRAY TRIM, LH
64320-10140B0

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
64323A - CLAMP, PACKAGE TRAY TRIM, RH
64323-10040C0

EP9#,NP90

BLACK,TRIM1#

 1
64324A - CLAMP, PACKAGE TRAY TRIM, LH
64324-10040C0

EP9#,NP90

BLACK,TRIM1#

 1
64342 - COVER, PACKAGE TRAY TRIM, UNDER
64342-16010

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

 1
64706 - COVER SUB-ASSY, QUARTER TRIM, JACK
64766-10030B0

EP9#..CARAT,GLZS,GLZV,REMIX

BLUISH GRAY,TRIM1#

 1
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-06055B2

EP9#..CARAT,GLZS,GLZV,REMIX

BLUISH GRAY,TRIM1#

 2
64716D - COVER, DECK TRIM, REAR
64716-10080C0

EP9#,NP90

BLACK,TRIM1#

 1
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-06017B0

EP9#..CARAT,GLZS,GLZV,REMIX

GRAY,TRIM1#

 4
90467-06017P0

EP9#,NP90

SHADOW GRAY,TRIM1#

 4
64735 - COVER, DECK TRIM SIDE SERVICE HOLE
64735-10010B0

EP9#..CARAT,GLZS,GLZV,REMIX

BLUISH GRAY,TRIM1#

 1
64735B - STOPPER, DECK TRIM SIDE SERVICE HOLE COVER
64735-16010B0

EP9#..CARAT,GLZS,GLZV,REMIX

BLUISH GRAY,TRIM1#

 1
64750B - RETAINER(FOR DECK SIDE TRIM PANEL)
67771-30070

EP9#,NP90

 2
64750B - RETAINER(FOR DECK SIDE TRIM PANEL)
67771-30070

EP9#,NP90

 2
64770D - COVER ASSY, SPARE WHEEL
64770-16250

EP95..REMIX

 1
64778D - PROTECTOR, SPARE WHEEL
64778-16020

EP9#,NP90

 4
Common parts
90119-06428
90168-40093
90468-04157
93540-54010
93560-55025
