EP95-AHPNK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

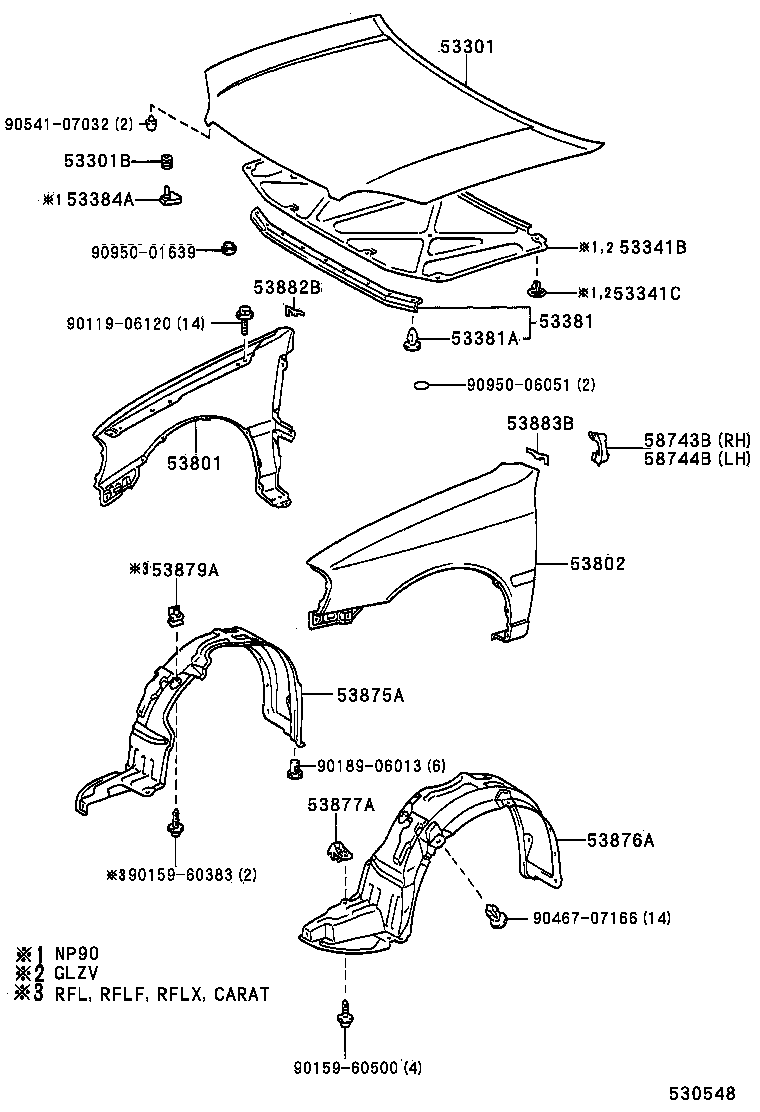

Click highlighted areas on diagram

diagram 53301 53301B 53341B 53341C 53381 53381A 53384A 53801 53802 53875A 53876A 53877A 53879A 53882B 53883B 58743B 58744B 9011906120 9015960383 9015960500 9018906013 9046707166 9054107032 9095001639 9095006051
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-10330

EP9#,NP90..RFL,RFLF,RFLX

 1
53301-10340

EP9#,NP90..RFL,RFLF,RFLX

 1
53301B - CUSHION, HOOD BUMPER
90541-15010

EP9#,NP90

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53382-10040

EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

左側

 1
53381-10120

EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

右側

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 9
53801 - FENDER SUB-ASSY, FRONT RH
53811-10540

EP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-10580

EP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX

 1
53875A - LINER, FRONT FENDER, RH
53875-10040

EP9#,NP90..RFL,RFLF,RFLX

 1
53876A - LINER, FRONT FENDER, LH
53876-10040

EP9#,NP90..RFL,RFLF,RFLX

 1
53877A - BRACKET, FRONT FENDER SPLASH SHIELD
53877-16010

EP9#,NP90

 2
53879A - RETAINER, FRONT FENDER LINER
53879-16010

EP9#,NP90..CARAT,RFL,RFLF,RFLX

 2
53882B - SEAL, FRONT FENDER, RH
53882-10060

EP9#,NP90

 1
53883B - SEAL, FRONT FENDER, LH
53882-10060

EP9#,NP90

 1
58743B - PROTECTER, FRONT FENDER PANEL, RH
58743-10020

EP9#,NP90

 1
58744B - PROTECTER, FRONT FENDER PANEL, LH
58743-10020

EP9#,NP90

 1
Common parts
90119-06120
90159-60383
90159-60500
90189-06013
90467-07166
90541-07032
90950-01639
90950-06051
