EP95-AHPNK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS,RFL,RFLF,RFLX ; (9712- )3D..CARA

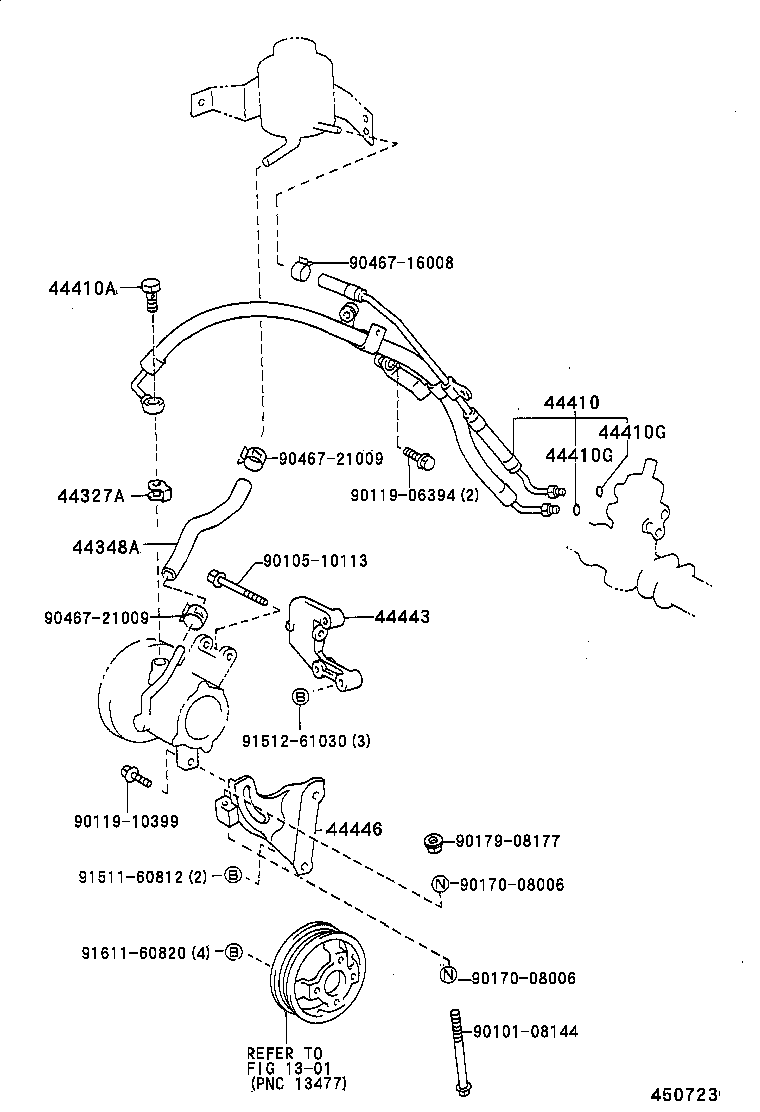

Click highlighted areas on diagram

diagram 1301 44327A 44348A 44410 44410A 44410G 44410G 44443 44446 9010108144 9010510113 9011906394 9011910399 9017008006 9017008006 9017908177 9046716008 9046721009 9046721009 9151160812 9151261030 9161160820
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

EP9#,NP90

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-10110

EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-10111

EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

EP9#,NP90

 1
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009

EP9#,NP90

 2
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009

EP9#,NP90

 2
44443 - BRACKET, PUMP
44443-10030

EP9#

 1
44446 - STRUT, ADJUSTING
44446-10050

EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
Common parts
90101-08144
90105-10113
90119-06394
90119-10399
90170-08006
90179-08177
90467-16008
90467-21009
91511-60812
91512-61030
91611-60820
Linked diagrams
1301
