EP95-AHPEK (1996)
Toyota Starlet

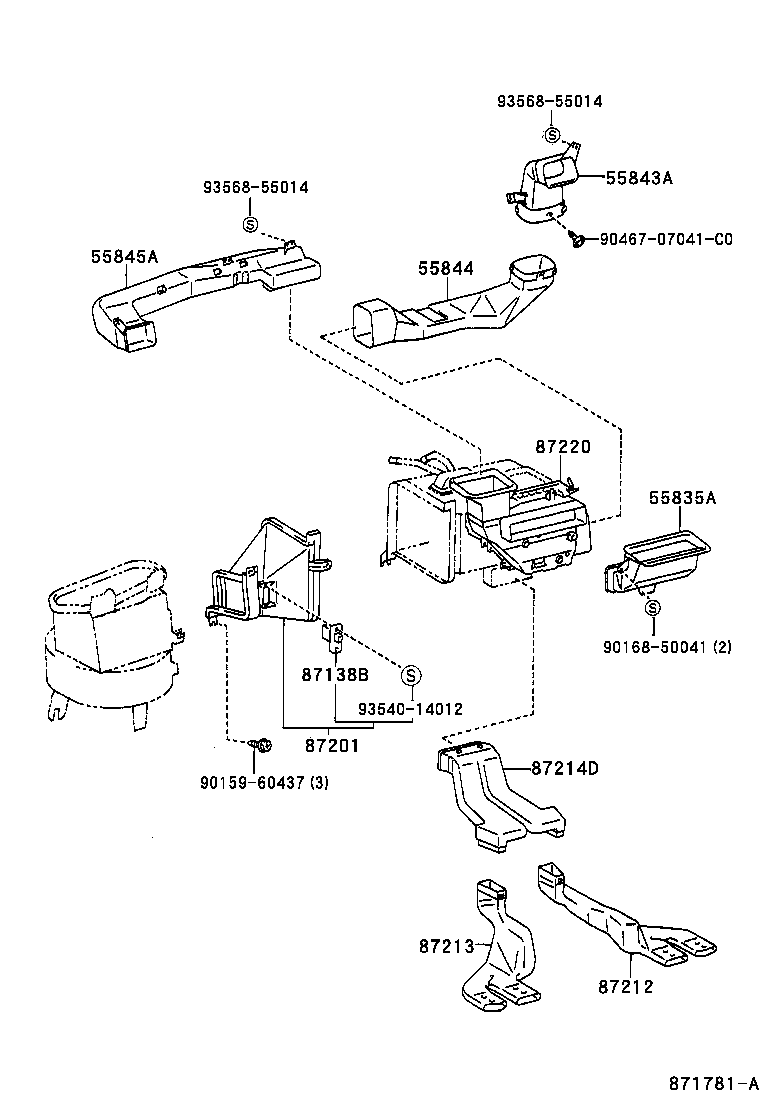

ILLUST NO. 2 OF 2(9601- )
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-10010 |
EP9#,NP90 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-10090 |
EP9#,NP90 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-10110 |
EP9#,NP90 |
1 | ||
| 55844-10090 |
EP9#,NP90 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-10070 |
EP9#,NP90 |
1 | ||
| 55845-10060 |
EP9#,NP90 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-10141 |
EP9#,NP90..GLZS,RFL,RFLF |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-10121 |
EP9#,NP90..GLZS,RFL,RFLF |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-16060 |
EP9#,NP90 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-16060 |
EP9#,NP90 |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87215-16020 |
EP9#,NP90 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-16050 |
EP9#,NP90 ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87220-16030 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87220-16030 |
EP9#..CARAT,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87220-16051 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 90159-60437 | ||||
| 90168-50041 | ||||
| 90467-07041C0 | ||||
| 93540-14012 | ||||
| 93568-55014 | ||||

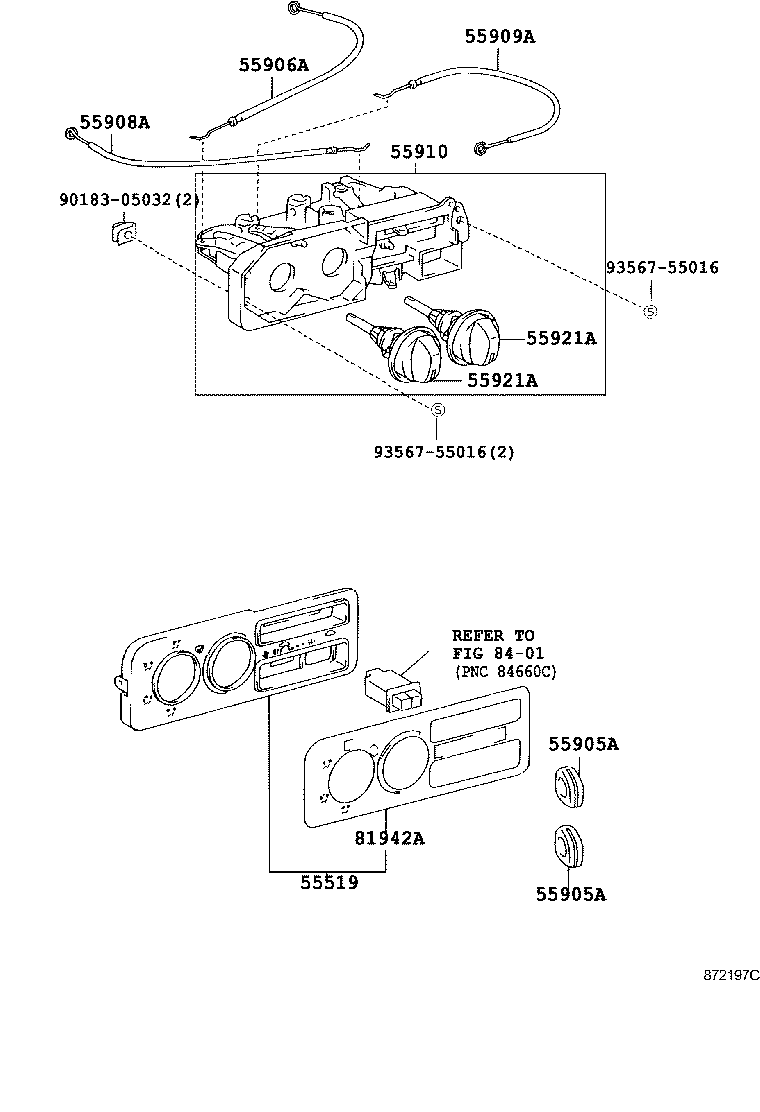

ILLUST NO. 1 OF 2(9601- )
LEVER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16090 |
EP9#,NP90 |
1 | ||
| 55519-16220 |
EP9#,NP90..GLZS,RFL,RFLF |
1 | ||
| 55519-16230 |
EP9#..CARAT,GLZV,REMIX,RFLX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20380 |
EP9#..GLZS,GLZV,RFLX ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
2 | ||
| 55905-20380 |
EP9#..CARAT,GLZV,RFLX ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
2 | ||
| 55905-89115 |
EP9#,NP90 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20380 |
EP9#..GLZS,GLZV,RFLX ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
2 | ||
| 55905-20380 |
EP9#..CARAT,GLZV,RFLX ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
2 | ||
| 55905-89115 |
EP9#,NP90 |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16120 |
EP9#,NP90 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16120 |
EP9#,NP90 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16130 |
EP9#,NP90 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16310 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
1 | ||
| 55910-16270 |
EP9#,NP90 |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-16010 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
2 | ||
| 55921-10040 |
EP9#,NP90 |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-16010 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
2 | ||
| 55921-10040 |
EP9#,NP90 |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16260 |
EP9#,NP90 |
1 | ||
| 81942-16261 |
EP9#,NP90 |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

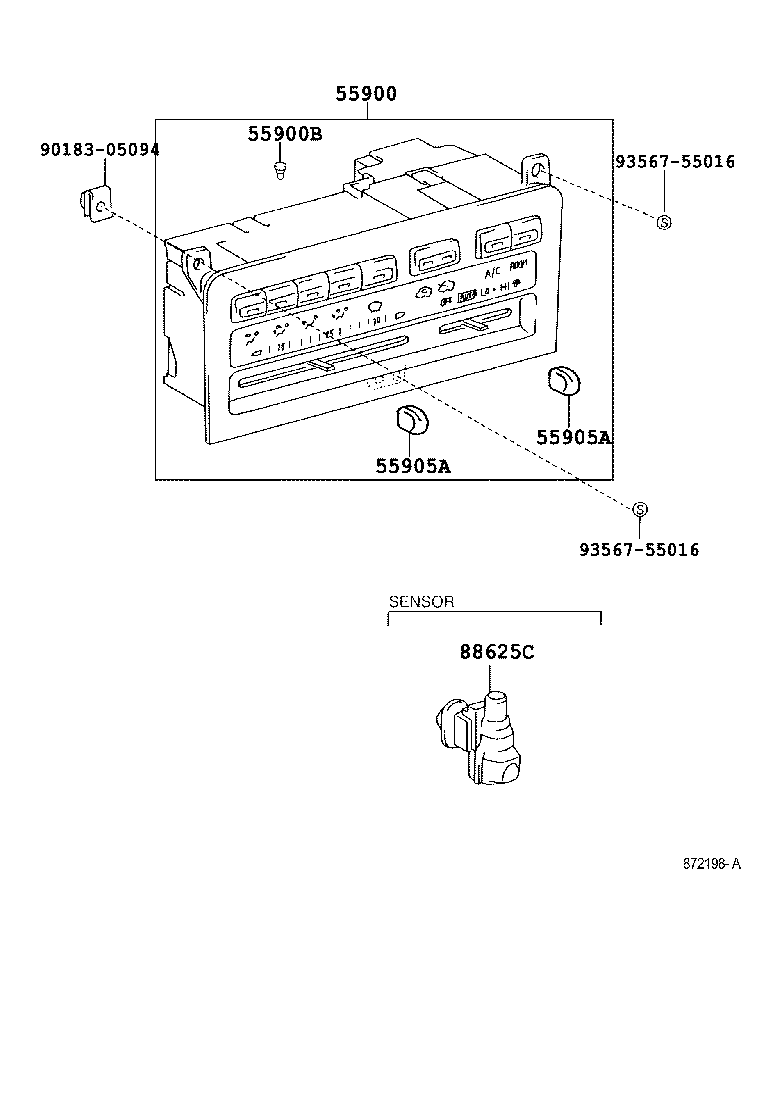

ILLUST NO. 1 OF 2(9601- )
PUSH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-10390 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| 55900-10390 |
EP9#..CARAT,GLZV,RFLX |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-70012 |
EP9#..GLZS,GLZV,RFLX 14V 1.4W,ｷｬｯﾌﾟ付き |
2 | ||
| 84999-70012 |
EP9#..CARAT,GLZV,RFLX 14V 1.4W,ｷｬｯﾌﾟ付き |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20380 |
EP9#..GLZS,GLZV,RFLX ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
2 | ||
| 55905-20380 |
EP9#..CARAT,GLZV,RFLX ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
2 | ||
| 55905-89115 |
EP9#,NP90 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20380 |
EP9#..GLZS,GLZV,RFLX ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
2 | ||
| 55905-20380 |
EP9#..CARAT,GLZV,RFLX ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
2 | ||
| 55905-89115 |
EP9#,NP90 |
2 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-16200 |
EP9#..CARAT,GLZV,RFLX |
1 | ||
| 88625-16200 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 93567-55016 | ||||
