EP95-AHPEK (1996)
Toyota Starlet

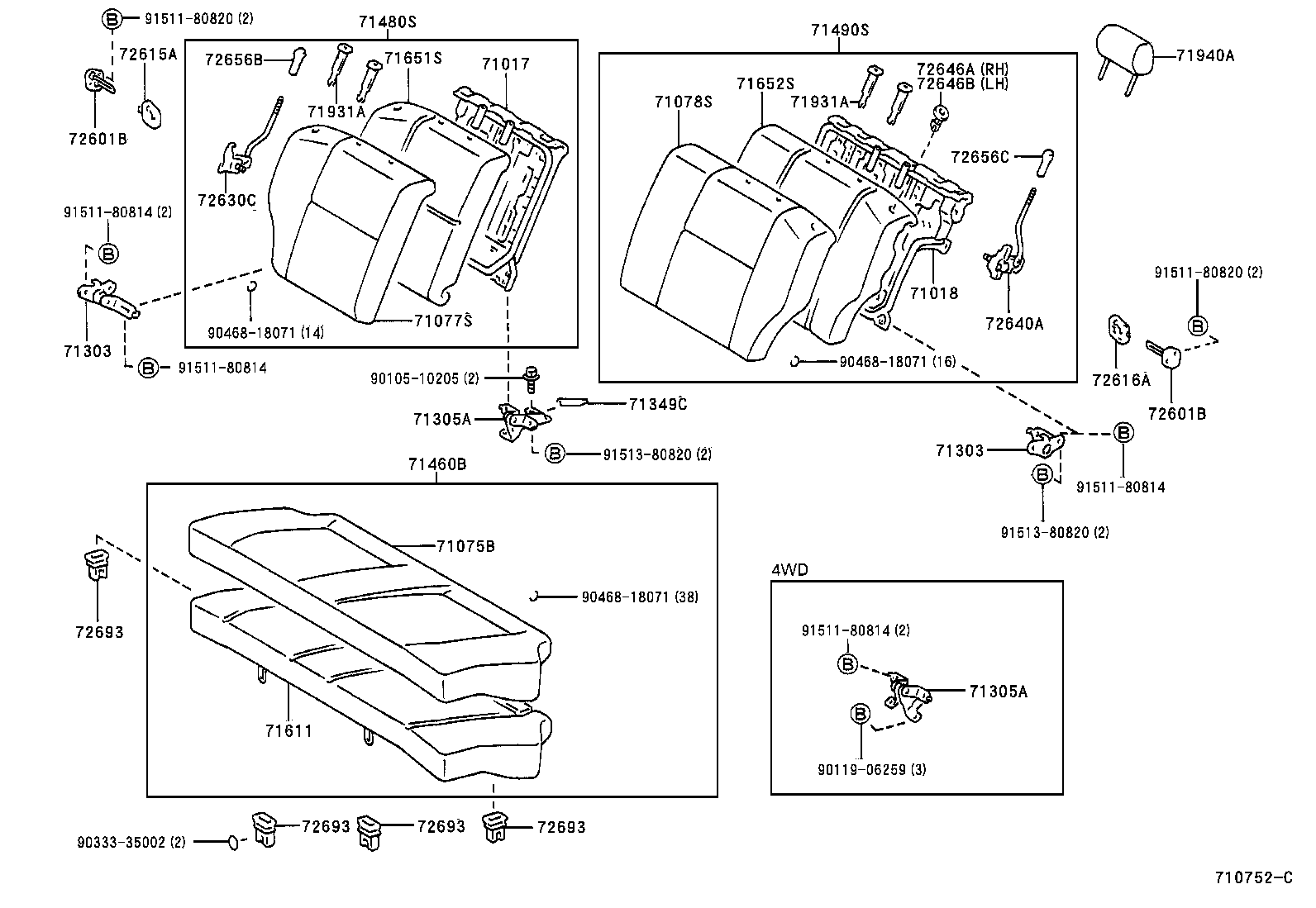

(9704- )RFLX ; (9712- )GLZV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-10090 |
EP9#..RFLX |
1 | ||
| 71017-10100 |
EP9#..5D..RFLX |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-10040 |
EP9#..RFLX |
1 | ||
| 71018-10050 |
EP9#..5D..RFLX |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-10810B0 |
EP95..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71075-1C180B0 |
EP95..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1M050B0 |
EP9#..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1M090B0 |
EP9#..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1C050B0 |
EP9#..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-1C030B0 |
EP9#..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-10040 |
EP9#,NP90 |
2 | ||
| 71303-10050 |
EP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF |
2 | ||
| 71303-10040 |
EP9#..GLZV,RFLX ｱﾘ(ﾌｵｰﾙﾃﾞｲﾝｸﾞ ﾘﾔ ｼｰﾄ) |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-10040 |
EP9#,NP90 |
2 | ||
| 71303-10050 |
EP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF |
2 | ||
| 71303-10040 |
EP9#..GLZV,RFLX ｱﾘ(ﾌｵｰﾙﾃﾞｲﾝｸﾞ ﾘﾔ ｼｰﾄ) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-10040 |
EP9#..GLZV,RFLX |
1 | ||
| 71305-10050 |
EP95..RFLX |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-10040 |
EP9#..GLZV,RFLX |
1 | ||
| 71305-10050 |
EP95..RFLX |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-10010B0 |
EP9#..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-10800B0 |
EP95..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1C170B0 |
EP95..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1M090B0 |
EP9#..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1M050B0 |
EP9#..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1C070B0 |
EP9#..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71490-1C090B0 |
EP9#..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-10100 |
EP95..5D |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-10290 |
EP9#..5D..RFLX |
1 | ||
| 71651-10280 |
EP9#..RFLX |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-10190 |
EP9#..RFLX |
1 | ||
| 71652-10220 |
EP9#..5D..RFLX |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12090B0 |
EP9#..5D..RFLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12060B2 |
EP9#..5D..RFLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12090B0 |
EP9#..5D..RFLX ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-12060B2 |
EP9#..5D..RFLX ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-10060B0 |
EP9#..5D..RFLX LT. BLUISH GRAY,TRIM1# |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-10050 |
EP9#,NP90 |
2 | ||
| 72601-10030 |
EP9#,NP90 |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-10050 |
EP9#,NP90 |
2 | ||
| 72601-10030 |
EP9#,NP90 |
2 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-10020B0 |
EP95..RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72616-10020B0 |
EP95..RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-10101 |
EP9#,NP90 |
1 | ||
| 72630-10091 |
EP9#,NP90 |
1 | ||
| 72630-10100 |
EP9#,NP90 |
1 | ||
| 72630-10091 |
EP9#..RFLX |
1 | ||
| 72630-10101 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-10091 |
EP9#,NP90 |
1 | ||
| 72640-10081 |
EP9#,NP90 |
1 | ||
| 72640-10090 |
EP9#,NP90 |
1 | ||
| 72640-10081 |
EP9#..RFLX |
1 | ||
| 72640-10091 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-10020B1 |
EP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-10020B1 |
EP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-20010B2 |
EP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-20010B2 |
EP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
EP9#,NP90 |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
EP9#,NP90 |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
EP9#,NP90 |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
EP9#,NP90 |
4 | ||
| Common parts | ||||
| 90105-10205 | ||||
| 90119-06259 | ||||
| 90333-35002 | ||||
| 90468-18071 | ||||
| 91511-80814 | ||||
| 91511-80820 | ||||
| 91513-80820 | ||||

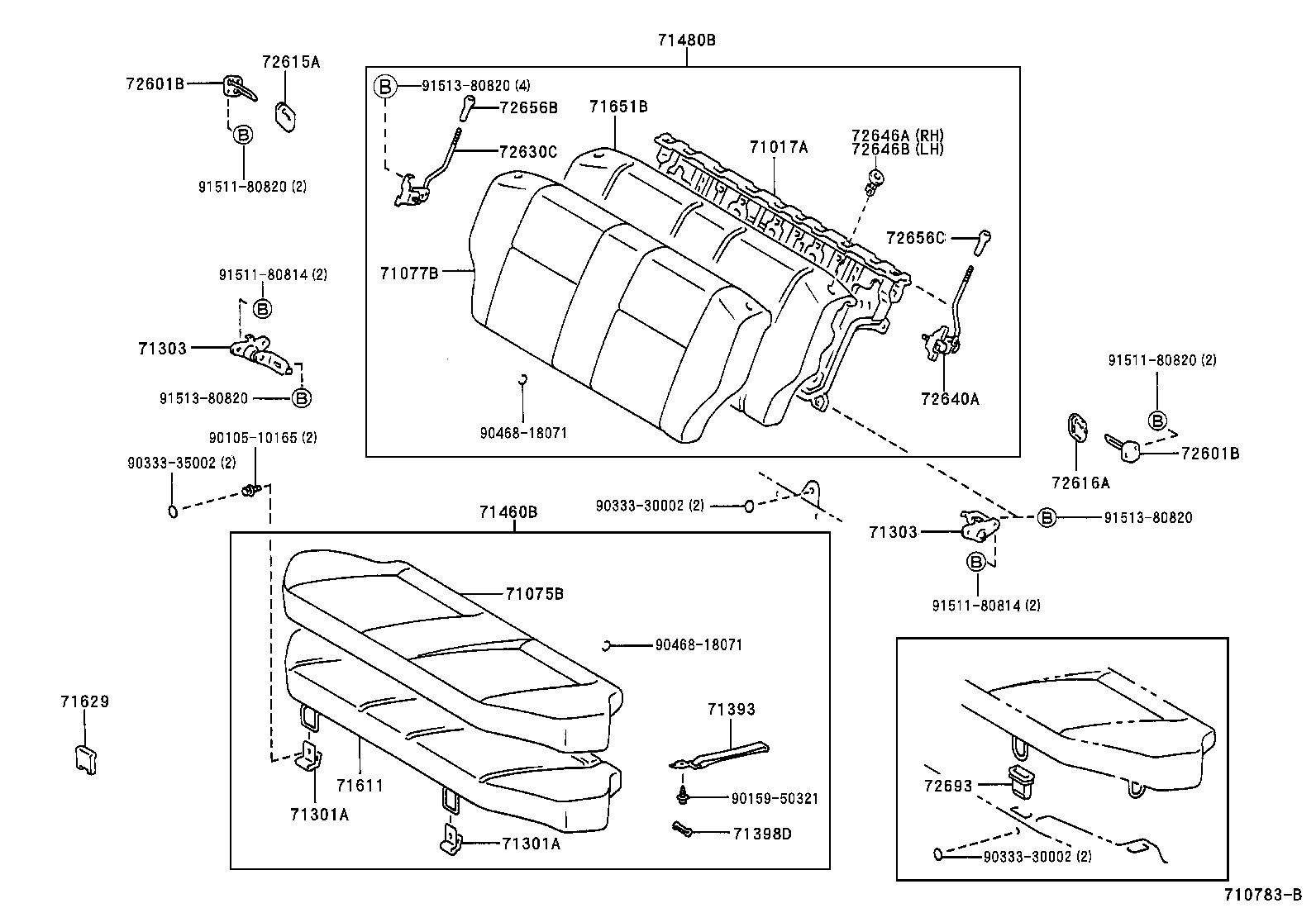

(9601-9704) ; (9704- )CARAT,GLZS,GLZV,REMIX,RFL,RFLF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-10070 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF |
1 | ||
| 71017-10110 |
EP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF |
1 | ||
| 71017-10070 |
EP9#,NP90 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-10810B0 |
EP95..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71075-1C180B0 |
EP95..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1C810B0 |
EP9#..5D..RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-10040 |
EP9#,NP90 |
2 | ||
| 71303-10050 |
EP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF |
2 | ||
| 71303-10040 |
EP9#..GLZV,RFLX ｱﾘ(ﾌｵｰﾙﾃﾞｲﾝｸﾞ ﾘﾔ ｼｰﾄ) |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-10040 |
EP9#,NP90 |
2 | ||
| 71303-10050 |
EP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF |
2 | ||
| 71303-10040 |
EP9#..GLZV,RFLX ｱﾘ(ﾌｵｰﾙﾃﾞｲﾝｸﾞ ﾘﾔ ｼｰﾄ) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-10800B0 |
EP95..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1C170B0 |
EP95..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1C790B0 |
EP9#..5D..RFLX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-10100 |
EP95..5D |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-10300 |
EP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF |
1 | ||
| 71651-10270 |
EP9#,NP90 |
1 | ||
| 71651-10270 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-10050 |
EP9#,NP90 |
2 | ||
| 72601-10030 |
EP9#,NP90 |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-10050 |
EP9#,NP90 |
2 | ||
| 72601-10030 |
EP9#,NP90 |
2 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-10020B0 |
EP95..RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72616-10020B0 |
EP95..RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-10101 |
EP9#,NP90 |
1 | ||
| 72630-10091 |
EP9#,NP90 |
1 | ||
| 72630-10100 |
EP9#,NP90 |
1 | ||
| 72630-10091 |
EP9#..RFLX |
1 | ||
| 72630-10101 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-10091 |
EP9#,NP90 |
1 | ||
| 72640-10081 |
EP9#,NP90 |
1 | ||
| 72640-10090 |
EP9#,NP90 |
1 | ||
| 72640-10081 |
EP9#..RFLX |
1 | ||
| 72640-10091 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-10020B1 |
EP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-10020B1 |
EP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-20010B2 |
EP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-20010B2 |
EP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
EP9#,NP90 |
4 | ||
| Common parts | ||||
| 90105-10165 | ||||
| 90159-50321 | ||||
| 90333-30002 | ||||
| 90333-35002 | ||||
| 90468-18071 | ||||
| 91511-80814 | ||||
| 91511-80820 | ||||
| 91513-80820 | ||||
