EP95-AHMNK (1996)
Toyota Starlet

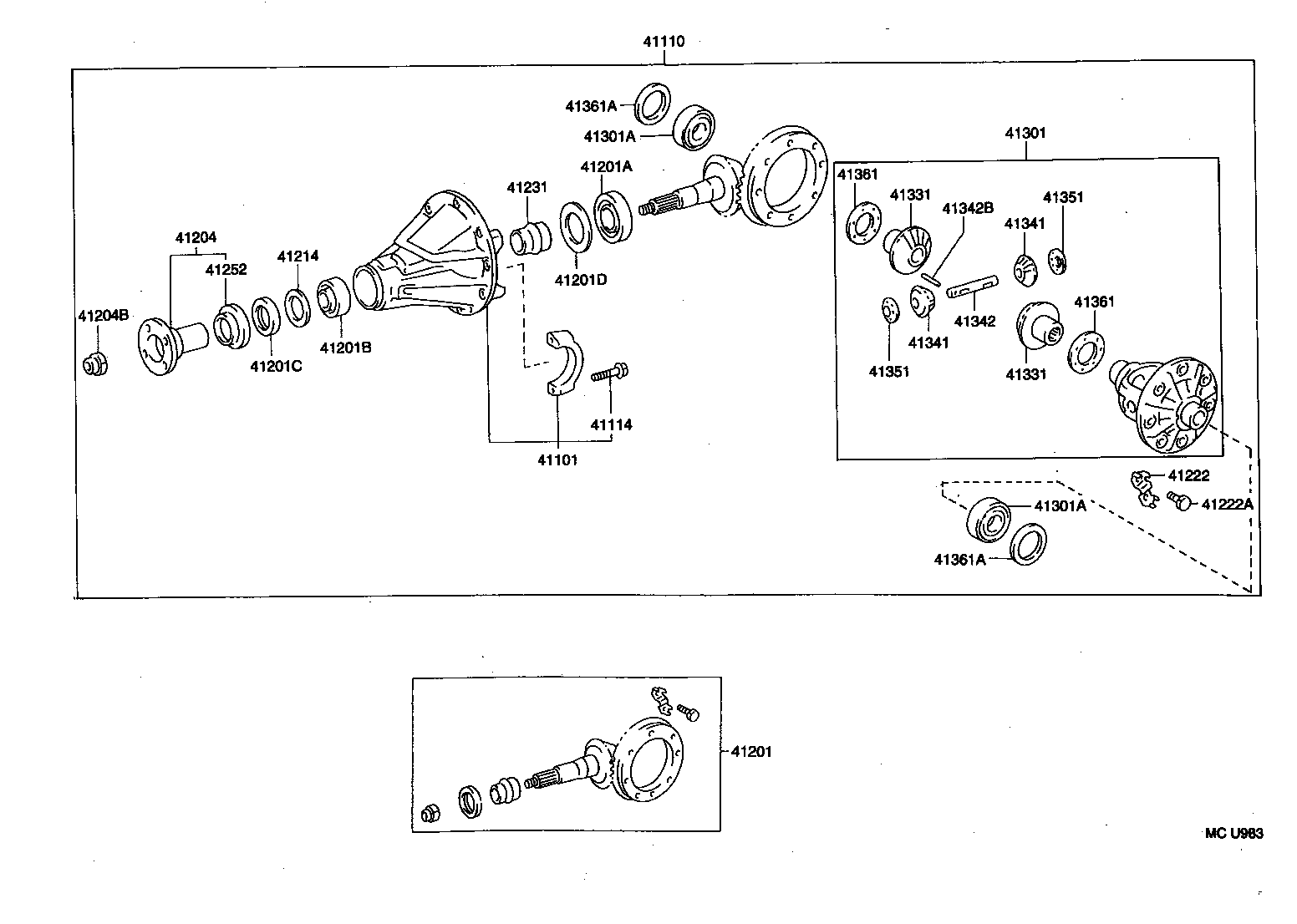

ILLUST NO. 1 OF 2(9601- )EP95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-16011 |
EP95 |
1 | ||
| 41101-16010 |
EP95 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-16141 |
EP95 *FGR=41:18=2.277 |
1 | ||
| 41110-16140 |
EP95 *FGR=41:18=2.277 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-16010 |
EP95 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-19615 |
EP95 *FGR=41:18=2.277 |
1 | ||
| 41201-19616 |
EP95 *FGR=41:18=2.277 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40058 |
EP95 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30047 |
EP95 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38015 |
EP95 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-59028 |
EP95 厚さ=2.30,ﾏｰｸ C |
1 | ||
| 90564-59030 |
EP95 厚さ=2.34,ﾏｰｸ E |
1 | ||
| 90564-59031 |
EP95 厚さ=2.36,ﾏｰｸ F |
1 | ||
| 90564-59027 |
EP95 厚さ=2.28,ﾏｰｸ B |
1 | ||
| 90564-59035 |
EP95 厚さ=2.44,ﾏｰｸ K |
1 | ||
| 90564-59037 |
EP95 厚さ=2.48,ﾏｰｸ M |
1 | ||
| 90564-59033 |
EP95 厚さ=2.40,ﾏｰｸ H |
1 | ||
| 90564-59038 |
EP95 厚さ=2.50,ﾏｰｸ N |
1 | ||
| 90564-59043 |
EP95 厚さ=2.60,ﾏｰｸ T |
1 | ||
| 90564-59036 |
EP95 厚さ=2.46,ﾏｰｸ L |
1 | ||
| 90564-59040 |
EP95 厚さ=2.54,ﾏｰｸ Q |
1 | ||
| 90564-59032 |
EP95 厚さ=2.38,ﾏｰｸ G |
1 | ||
| 90564-59039 |
EP95 厚さ=2.52,ﾏｰｸ P |
1 | ||
| 90564-59029 |
EP95 厚さ=2.32,ﾏｰｸ D |
1 | ||
| 90564-59026 |
EP95 厚さ=2.26,ﾏｰｸ A |
1 | ||
| 90564-59034 |
EP95 厚さ=2.42,ﾏｰｸ J |
1 | ||
| 90564-59042 |
EP95 厚さ=2.58,ﾏｰｸ S |
1 | ||
| 90564-59041 |
EP95 厚さ=2.56,ﾏｰｸ R |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
EP95 |
1 | ||
| 41204-48020 |
EP95 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18020 |
EP95 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-28010 |
EP95 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12030 |
EP95 |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11365 |
EP95 |
8 | ||
| 90105-11034 |
EP95 |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-16030 |
EP95 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-48020 |
EP95 |
1 | ||
| 41252-22010 |
EP95 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-16030 |
EP95 |
1 | ||
| 41301-16031 |
EP95 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34011 |
EP95 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34011 |
EP95 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-16020 |
EP95 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-16020 |
EP95 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-10030 |
EP95 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-10030 |
EP95 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-10050 |
EP95 |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04089 |
EP95 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
EP95 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
EP95 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
EP95 厚さ=1.50 |
2 | ||
| 41361-12060 |
EP95 厚さ=1.75 |
2 | ||
| 41361-12040 |
EP95 厚さ=1.65 |
2 | ||
| 41361-12020 |
EP95 厚さ=1.55 |
2 | ||
| 41361-12030 |
EP95 厚さ=1.60 |
2 | ||
| 41361-12050 |
EP95 厚さ=1.70 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
EP95 厚さ=1.50 |
2 | ||
| 41361-12060 |
EP95 厚さ=1.75 |
2 | ||
| 41361-12040 |
EP95 厚さ=1.65 |
2 | ||
| 41361-12020 |
EP95 厚さ=1.55 |
2 | ||
| 41361-12030 |
EP95 厚さ=1.60 |
2 | ||
| 41361-12050 |
EP95 厚さ=1.70 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-51003 |
EP95 厚さ=2.70,ﾏｰｸ 70 |
1 | ||
| 90564-51013 |
EP95 厚さ=3.00,ﾏｰｸ 00 |
1 | ||
| 90564-51004 |
EP95 厚さ=2.73,ﾏｰｸ 73 |
1 | ||
| 90564-51010 |
EP95 厚さ=2.91,ﾏｰｸ 91 |
1 | ||
| 90564-51001 |
EP95 厚さ=2.64,ﾏｰｸ 64 |
1 | ||
| 90564-51012 |
EP95 厚さ=2.97,ﾏｰｸ 97 |
1 | ||
| 90564-51008 |
EP95 厚さ=2.85,ﾏｰｸ 85 |
1 | ||
| 90564-51002 |
EP95 厚さ=2.67,ﾏｰｸ 67 |
1 | ||
| 90564-51006 |
EP95 厚さ=2.79,ﾏｰｸ 79 |
1 | ||
| 90564-51007 |
EP95 厚さ=2.82,ﾏｰｸ 82 |
1 | ||
| 90564-51005 |
EP95 厚さ=2.76,ﾏｰｸ 76 |
1 | ||
| 90564-51015 |
EP95 厚さ=3.06,ﾏｰｸ 06 |
1 | ||
| 90564-51011 |
EP95 厚さ=2.94,ﾏｰｸ 94 |
1 | ||
| 90564-51026 |
EP95 厚さ=3.39,ﾏｰｸ 39 |
1 | ||
| 90564-51038 |
EP95 厚さ=2.61,ﾏｰｸ 61 |
1 | ||
| 90564-51009 |
EP95 厚さ=2.88,ﾏｰｸ 88 |
1 | ||
| 90564-51021 |
EP95 厚さ=3.24,ﾏｰｸ 24 |
1 | ||
| 90564-51017 |
EP95 厚さ=3.12,ﾏｰｸ 12 |
1 | ||
| 90564-51020 |
EP95 厚さ=3.21,ﾏｰｸ 21 |
1 | ||
| 90564-51016 |
EP95 厚さ=3.09,ﾏｰｸ 09 |
1 | ||
| 90564-51022 |
EP95 厚さ=3.27,ﾏｰｸ 27 |
1 | ||
| 90564-51036 |
EP95 厚さ=2.55,ﾏｰｸ 55 |
1 | ||
| 90564-51018 |
EP95 厚さ=3.15,ﾏｰｸ 15 |
1 | ||
| 90564-51019 |
EP95 厚さ=3.18,ﾏｰｸ 18 |
1 | ||
| 90564-51014 |
EP95 厚さ=3.03,ﾏｰｸ 03 |
1 | ||
| 90564-51035 |
EP95 厚さ=2.52,ﾏｰｸ 52 |
1 | ||
| 90564-51024 |
EP95 厚さ=3.33,ﾏｰｸ 33 |
1 | ||
| 90564-51027 |
EP95 厚さ=3.42,ﾏｰｸ 42 |
1 | ||
| 90564-51023 |
EP95 厚さ=3.30,ﾏｰｸ 30 |
1 | ||
| 90564-51037 |
EP95 厚さ=2.58,ﾏｰｸ 58 |
1 | ||
| 90564-51025 |
EP95 厚さ=3.36,ﾏｰｸ 36 |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-51003 |
EP95 厚さ=2.70,ﾏｰｸ 70 |
1 | ||
| 90564-51013 |
EP95 厚さ=3.00,ﾏｰｸ 00 |
1 | ||
| 90564-51004 |
EP95 厚さ=2.73,ﾏｰｸ 73 |
1 | ||
| 90564-51010 |
EP95 厚さ=2.91,ﾏｰｸ 91 |
1 | ||
| 90564-51001 |
EP95 厚さ=2.64,ﾏｰｸ 64 |
1 | ||
| 90564-51012 |
EP95 厚さ=2.97,ﾏｰｸ 97 |
1 | ||
| 90564-51008 |
EP95 厚さ=2.85,ﾏｰｸ 85 |
1 | ||
| 90564-51002 |
EP95 厚さ=2.67,ﾏｰｸ 67 |
1 | ||
| 90564-51006 |
EP95 厚さ=2.79,ﾏｰｸ 79 |
1 | ||
| 90564-51007 |
EP95 厚さ=2.82,ﾏｰｸ 82 |
1 | ||
| 90564-51005 |
EP95 厚さ=2.76,ﾏｰｸ 76 |
1 | ||
| 90564-51015 |
EP95 厚さ=3.06,ﾏｰｸ 06 |
1 | ||
| 90564-51011 |
EP95 厚さ=2.94,ﾏｰｸ 94 |
1 | ||
| 90564-51026 |
EP95 厚さ=3.39,ﾏｰｸ 39 |
1 | ||
| 90564-51038 |
EP95 厚さ=2.61,ﾏｰｸ 61 |
1 | ||
| 90564-51009 |
EP95 厚さ=2.88,ﾏｰｸ 88 |
1 | ||
| 90564-51021 |
EP95 厚さ=3.24,ﾏｰｸ 24 |
1 | ||
| 90564-51017 |
EP95 厚さ=3.12,ﾏｰｸ 12 |
1 | ||
| 90564-51020 |
EP95 厚さ=3.21,ﾏｰｸ 21 |
1 | ||
| 90564-51016 |
EP95 厚さ=3.09,ﾏｰｸ 09 |
1 | ||
| 90564-51022 |
EP95 厚さ=3.27,ﾏｰｸ 27 |
1 | ||
| 90564-51036 |
EP95 厚さ=2.55,ﾏｰｸ 55 |
1 | ||
| 90564-51018 |
EP95 厚さ=3.15,ﾏｰｸ 15 |
1 | ||
| 90564-51019 |
EP95 厚さ=3.18,ﾏｰｸ 18 |
1 | ||
| 90564-51014 |
EP95 厚さ=3.03,ﾏｰｸ 03 |
1 | ||
| 90564-51035 |
EP95 厚さ=2.52,ﾏｰｸ 52 |
1 | ||
| 90564-51024 |
EP95 厚さ=3.33,ﾏｰｸ 33 |
1 | ||
| 90564-51027 |
EP95 厚さ=3.42,ﾏｰｸ 42 |
1 | ||
| 90564-51023 |
EP95 厚さ=3.30,ﾏｰｸ 30 |
1 | ||
| 90564-51037 |
EP95 厚さ=2.58,ﾏｰｸ 58 |
1 | ||
| 90564-51025 |
EP95 厚さ=3.36,ﾏｰｸ 36 |
1 | ||
ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-10041 |
EP95 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
EP95 ﾈｼﾞ部長さ=12 & 15,長さ=34 |
9 | ||
| 90116-08236 |
EP95 ﾈｼﾞ部長さ=12 & 15,長さ=78 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
EP95 ﾈｼﾞ部長さ=12 & 15,長さ=34 |
9 | ||
| 90116-08236 |
EP95 ﾈｼﾞ部長さ=12 & 15,長さ=78 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-16090 |
EP95 |
1 | ||
| 42110-16091 |
EP95 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
EP95 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
EP95 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
EP95 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
EP95 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
EP95 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-16010 |
EP95 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-16010 |
EP95 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-22010 |
EP95 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||
