EP95-AHMEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )5D

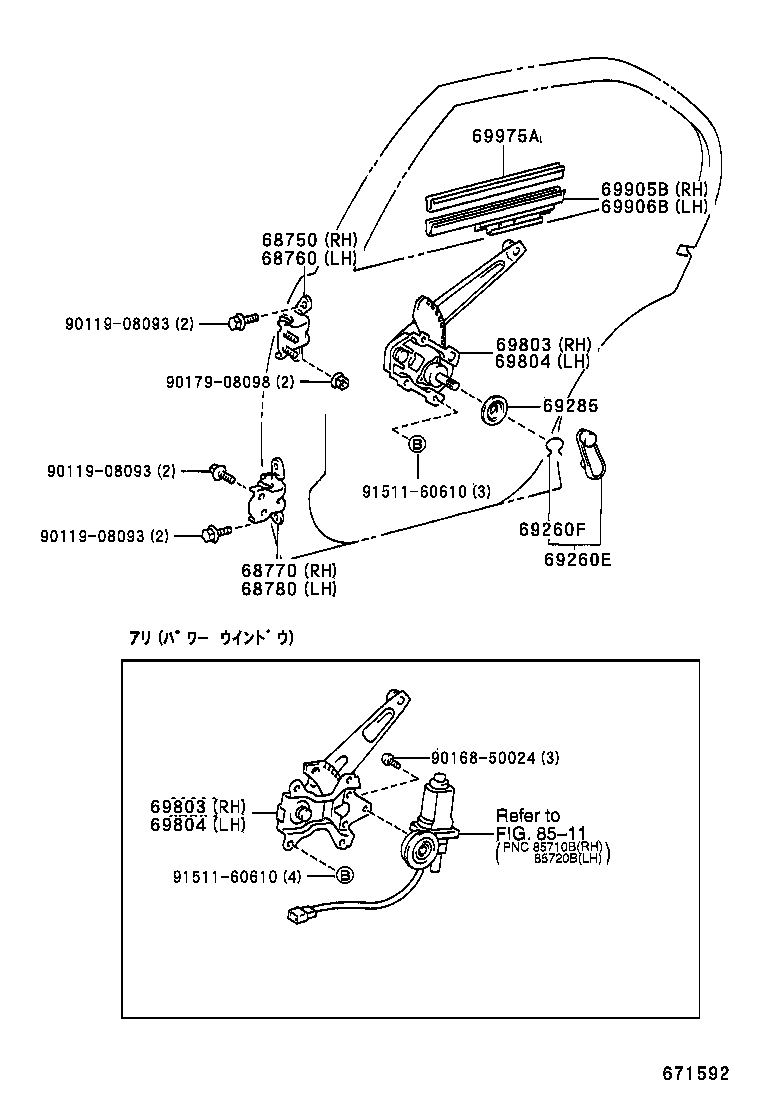

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69285 69803 69803 69804 69804 69905B 69906B 69975A 9011908093 9011908093 9011908093 9016850024 9017908098 9151160610 9151160610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-16030

EP9#,NP90..5D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-16030

EP9#,NP90..5D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20040

EP9#,NP90..5D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20040

EP9#,NP90..5D

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-10040B7

EP9#,NP90..5D..(RFL,RFLF,RFLX)

BLUE GRAY,TRIM1#

 2
69260-10040B4

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 2
69285 - PLATE, DOOR VENT WINDOW CONTROL HANDLE
69285-2201008

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

NATURAL WHITE,TRIM1#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-10020

EP9#..5D..(REMIX,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69830-10070

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-10020

EP9#..5D..(REMIX,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69830-10070

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-10070

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 1
69804-10020

EP9#..5D..(REMIX,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-10070

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 1
69804-10020

EP9#..5D..(REMIX,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-10070

EP9#,NP90..5D

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-10070

EP9#,NP90..5D

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-12010

EP9#,NP90..5D

 2
Common parts
90119-08093
90168-50024
90179-08098
91511-60610
