EP95-AGMEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

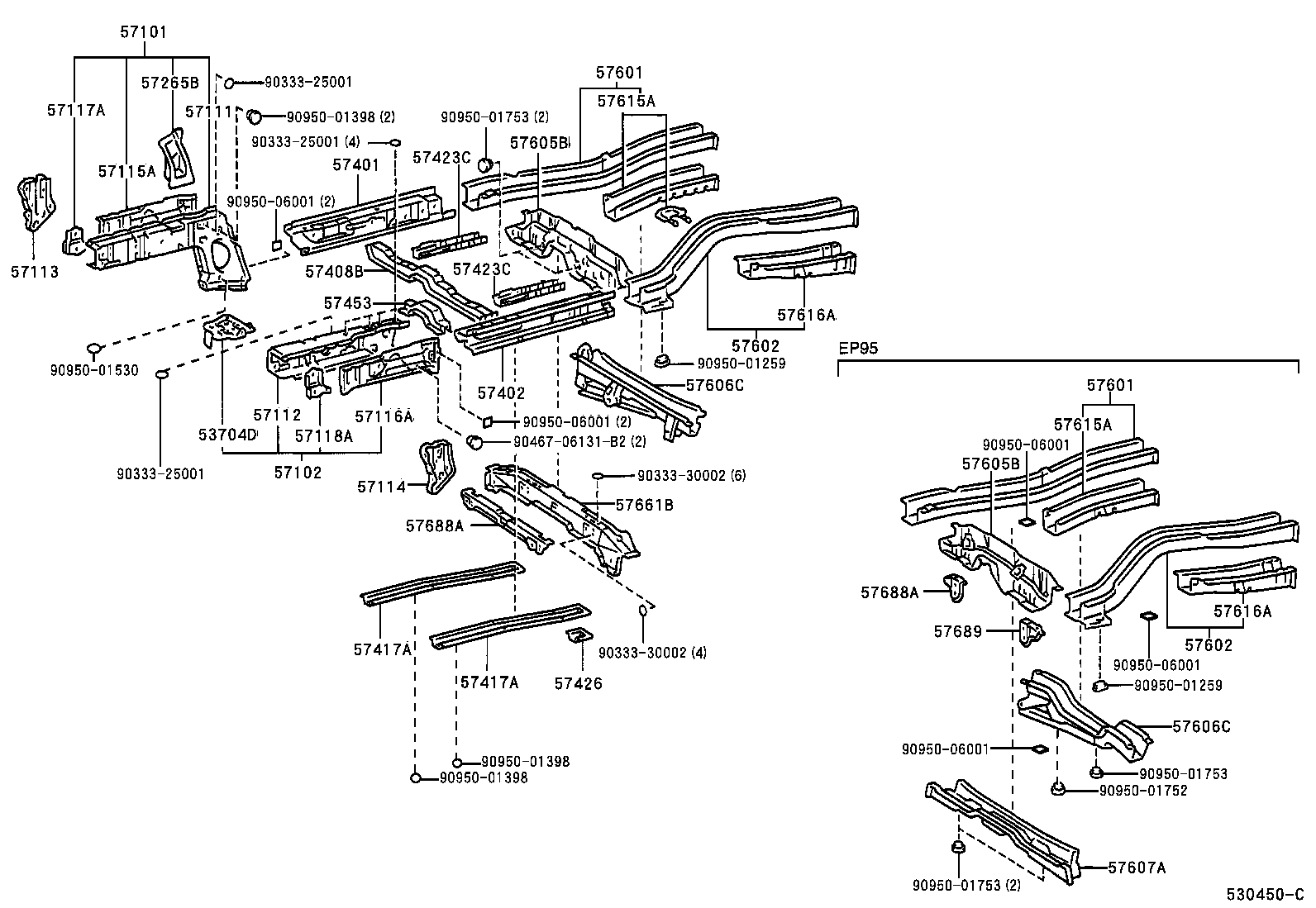

Click highlighted areas on diagram

diagram 53704D 57101 57102 57111 57112 57113 57114 57115A 57116A 57117A 57118A 57265B 57401 57402 57408B 57417A 57417A 57423C 57423C 57426 57453 57601 57601 57602 57602 57605B 57605B 57606C 57606C 57607A 57615A 57615A 57616A 57616A 57661B 57688A 57688A 57689 9033325001 9033325001 9033325001 9033330002 9033330002 9046706131B2 9095001259 9095001259 9095001398 9095001398 9095001398 9095001530 9095001752 9095001753 9095001753 9095001753 9095006001 9095006001 9095006001 9095006001 9095006001
Part # Description Qty Price
53704D - SUPPORT SUB-ASSY, BATTERY, LH
53704-16020

EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-10311

EP95;EP91,NP90..(4FC,5F)..(GLZV,RFL)

 1
57101-10310

EP9#,NP90

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-10431

EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
57102-10430

EP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX

 1
57111 - MEMBER, FRONT SIDE, RH
57111-16130

EP9#,NP90

 1
57111-16131

EP9#,NP90

 1
57112 - MEMBER, FRONT SIDE, LH
57112-16150

EP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX

 1
57112-16151

EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-10040

EP9#,NP90

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-10040

EP9#,NP90

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-10060

EP9#,NP90

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-10060

EP9#,NP90

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-10050

EP9#,NP90

 1
57117-16060

EP9#,NP90

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57118-10050

EP9#,NP90

 1
57118-16060

EP9#,NP90

 1
57265B - BRACKET, ENGINE MOUNTING, RH
57265-10020

EP9#,NP90

 1
57265-10020

EP95;EP91,NP90..(4FC,5F)..(GLZV,RFL)

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-10150

EP9#,NP90..3D

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-10150

EP9#,NP90..3D

 1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-10100

EP9#,NP90

 1
57417A - REINFORCEMENT, FRONT FLOOR UNDER
57417-10080

EP9#,NP90

 2
57417A - REINFORCEMENT, FRONT FLOOR UNDER
57417-10080

EP9#,NP90

 2
57423C - REINFORCEMENT, FRONT FLOOR UNDER, INNER
57423-46010

EP9#,NP90

 2
57423C - REINFORCEMENT, FRONT FLOOR UNDER, INNER
57423-46010

EP9#,NP90

 2
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-10020

EP9#,NP90

 1
57453 - MEMBER, FRONT FLOOR CROSS, NO.3
57453-10021

EP9#,NP90

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-10140

EP95

 1
57601-10100

EP95

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-10140

EP95

 1
57601-10100

EP95

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-10100

EP95

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-10100

EP95

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-10110

EP95

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-10110

EP95

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-10100

EP95

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-10100

EP95

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-10040

EP95

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-16918

EP95

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-16918

EP95

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-16914

EP9#,NP90

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-16914

EP9#,NP90

 1
57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER
57688-10050

EP95

 1
57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER
57688-10050

EP95

 1
57689 - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57689-10020

EP95

 1
Common parts
90333-25001
90333-30002
90467-06131B2
90950-01259
90950-01398
90950-01530
90950-01752
90950-01753
90950-06001
