EP95-AGMEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )EP95..5F ; (9601- )5F..GLZV

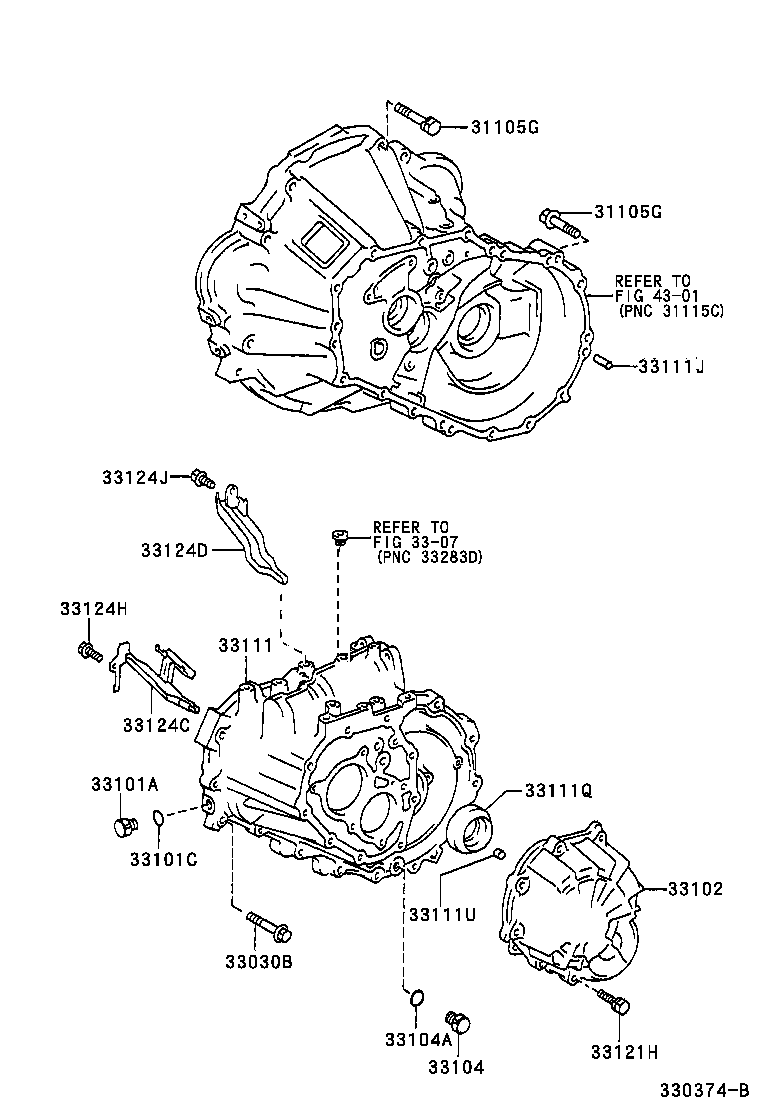

Click highlighted areas on diagram

C50F,C56

diagram 31105G 31105G 33030B 3307 33101A 33101C 33102 33104 33104A 33111 33111J 33111Q 33111U 33121H 33124C 33124D 33124H 33124J 4301
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10097

EP9#..MTM

*10−1.25PX60−22

 1
91621-60614

EP95,NP90..5F

*6−1.00PX14−14

 1
91612-41025

EP95,NP90..5F

*10−1.25PX25−25

 2
91619-61260

EP9#..MTM

*12−1.25PX60−30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10097

EP9#..MTM

*10−1.25PX60−22

 1
91621-60614

EP95,NP90..5F

*6−1.00PX14−14

 1
91612-41025

EP95,NP90..5F

*10−1.25PX25−25

 2
91619-61260

EP9#..MTM

*12−1.25PX60−30

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08064

EP95..5F;EP91..5F..GLZV

*8−1.25PX51−28

 13
90105-08086

EP95..5F;EP91..5F..GLZV

*8−1.25PX45−27.5

 3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18045

EP95..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

EP9#,NP90..MTM

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021

EP95..5F;EP91..5F..GLZV

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

EP9#,NP90..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

EP9#,NP90..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-16061

EP95..5F;EP91..5F..GLZV

 1
33111-16062

EP95..5F;EP91..5F..GLZV

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

EP9#,NP90..MTM

長さ=23,外径=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34017

EP9#,NP90..MTM

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

EP95..5F;EP91..5F..GLZV

長さ=11,外径=11

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835

EP95..5F;EP91..5F..GLZV

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-12012

EP95..5F;EP91..5F..GLZV

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

EP95..5F;EP91..5F..GLZV

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

EP9#,NP90..5F..(CARAT,GLZS,GLZV,RFL,RFLF,RFLX)

 2
33124J - BOLT, W/WASHER
91611-60820

EP9#,NP90..5F

 1
Linked diagrams
3307
4301
