EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

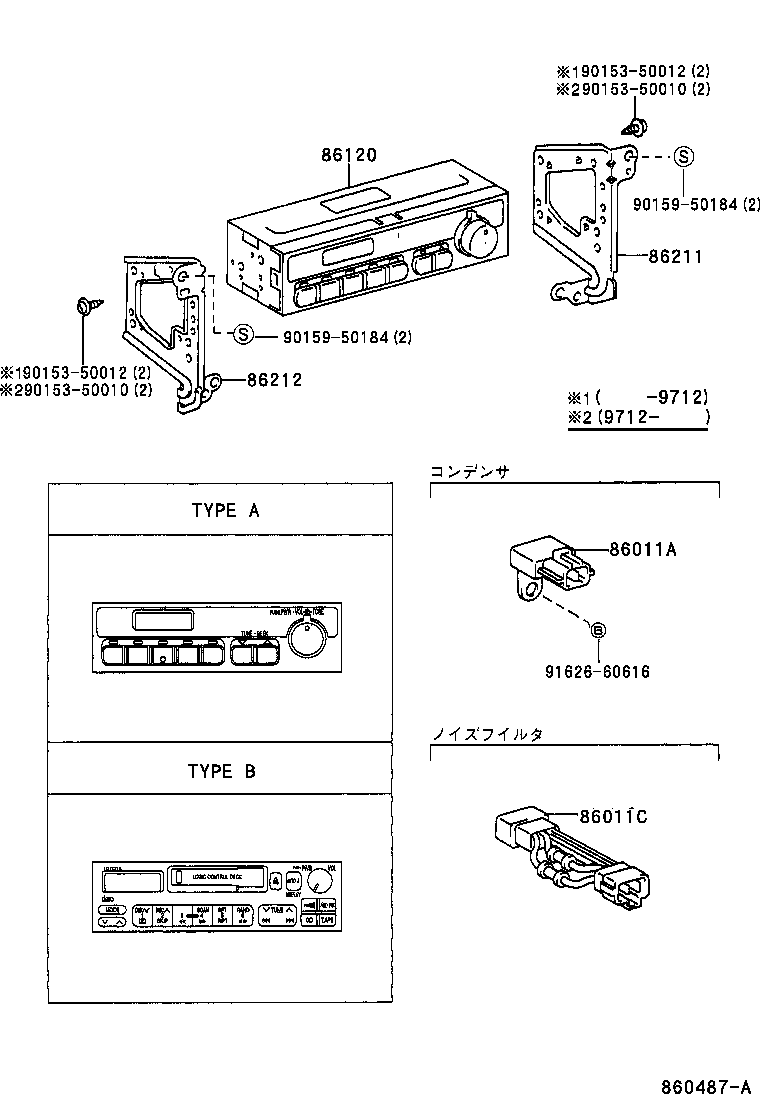

Click highlighted areas on diagram

diagram 86011A 86011C 86120 86211 86212 9015350010 9015350010 9015350012 9015350012 9015950184 9015950184 9162660616
Part # Description Qty Price
86011C - FILTER, NOISE
90980-05270

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

 1
86120 - RECEIVER ASSY, RADIO
86120-27010

EP9#,NP90..CARAT,REMIX,RFL,RFLF

FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-10450

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

FUJITSU TEN,ID=15417,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-16260

EP9#,NP90

 1
86212 - BRACKET, RADIO, NO.2
86212-16260

EP9#,NP90

 1
Common parts
90153-50010
90153-50012
90159-50184
91626-60616
