EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )CARAT,GLZS,REMIX,RFL,RFLF,RFLX

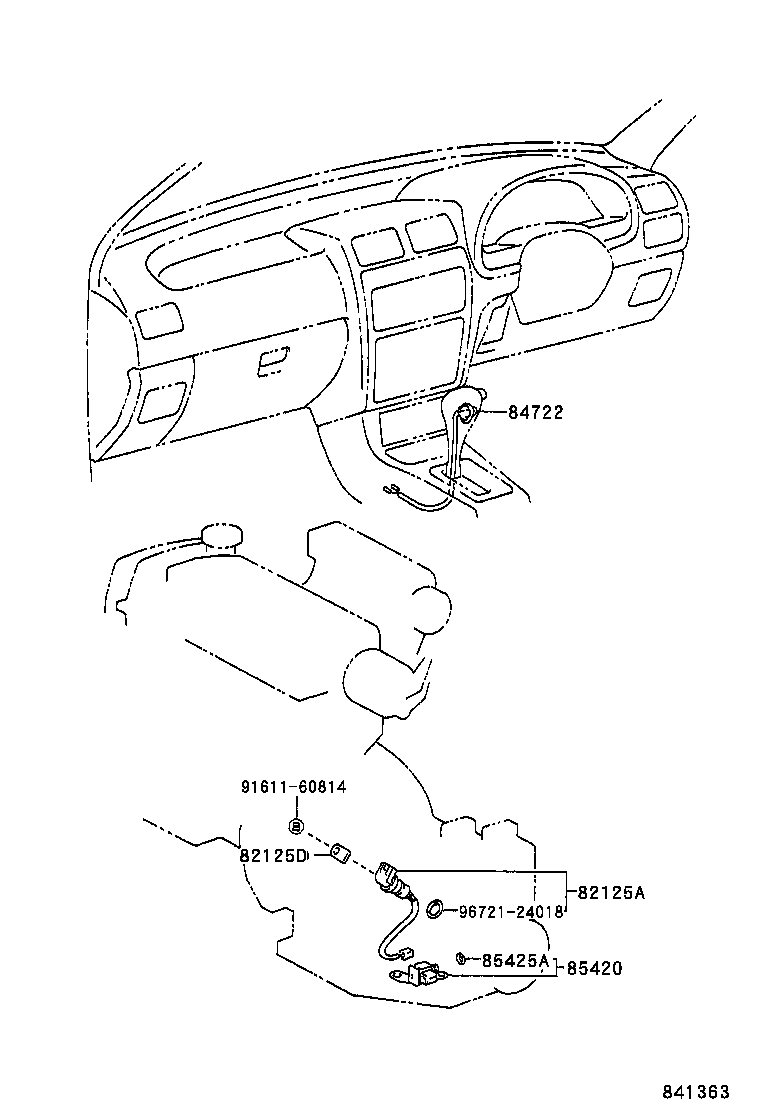

Click highlighted areas on diagram

diagram 82125A 82125D 84722 85420 85425A 9161160814 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20240

EP9#,NP90..4FC..(CARAT,GLZS,REMIX,RFL,RFLF,RFLX)

 1
82125-20240

EP95..5D..4FC;EP95..3D..4FC..(RFLF,RFLX);EP91,NP90..4FC..(GLZS,RFL,RFLX)

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

EP9#,NP90..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-10030B1

EP9#,NP90..4FC..(CARAT,RFL,RFLF,RFLX)

SHADOW GRAY,TRIM1#

 1
84722-10030B0

EP9#,NP90..4FC..(CARAT,RFL,RFLF,RFLX)

BLUISH GRAY,TRIM1#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20180

EP95..5D..4FC;EP95..3D..4FC..(RFLF,RFLX);EP91,NP90..4FC..(GLZS,RFL,RFLX)

 1
85420-20180

EP9#,NP90..4FC..(CARAT,GLZS,REMIX,RFL,RFLF,RFLX)

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-06004

EP95..5D..4FC;EP95..3D..4FC..(RFLF,RFLX);EP91,NP90..4FC..(GLZS,RFL,RFLX)

 1
90301-06004

EP9#,NP90..4FC..(CARAT,GLZS,REMIX,RFL,RFLF,RFLX)

 1
Common parts
91611-60814
96721-24018
