EP91-AHPEK (1996)
Toyota Starlet

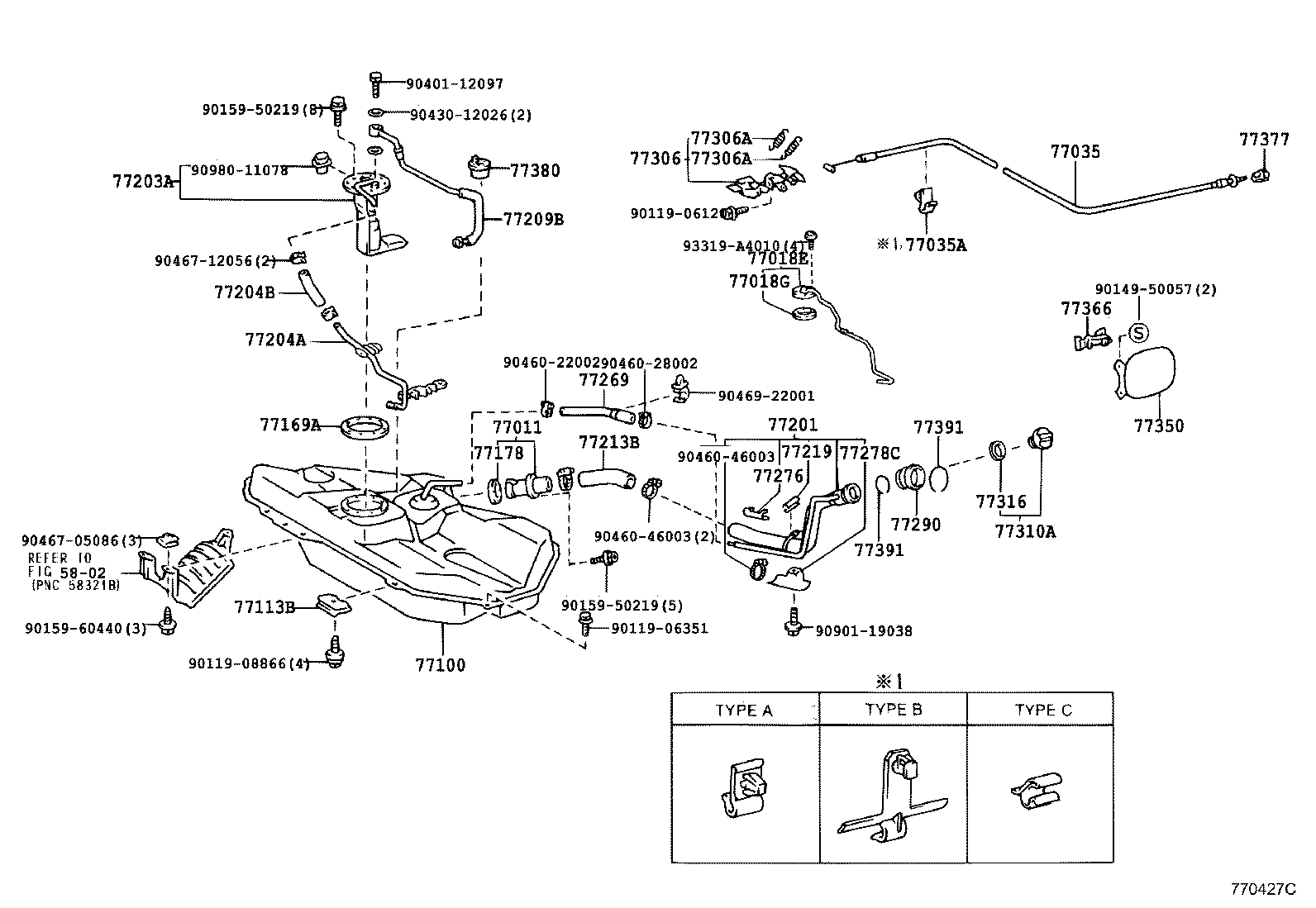

ILLUST NO. 1 OF 2(9704- )EP91
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10060 |
EP9#,NP90 |
1 | ||
| 77011-16100 |
EP91,NP90 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-16060 |
EP91,NP90 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
EP91,NP90 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-10090 |
EP9#,NP90 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP9#,NP90 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90463-05004 |
EP9#,NP90 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82711-12800 |
EP9#,NP90 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-16250 |
EP91,NP90 |
1 | ||
| 77001-16220 |
EP91,NP90 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EP91,NP90 |
4 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-16030 |
EP91,NP90 |
1 | ||
| 77169-20050 |
EP91,NP90 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
EP9#,NP90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10200 |
EP91,NP90 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 23206-11160 |
EP91 |
1 | ||
| 23206-11440 |
EP91..GLZS,GLZV,RFLF,RFLX |
1 | ||
| 77203-16050 |
EP91 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 23206-11420 |
EP91..RFL |
1 | ||
| 23206-11460 |
EP91 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77203-16040 |
EP91 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 23204-11140 |
EP91 |
1 | ||
| 77204-16010 |
EP91 |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95334-06010 |
EP91 |
1 | ||
| 95333-06020 |
EP91 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-16020 |
EP91..5D..(CARAT,RFL,RFLF,RFLX);EP91..3D..(GLZS,GLZV,RFL,RFLF,RFLX) ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 23091-11090 |
EP91 |
1 | ||
| 77209-16070 |
EP91 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-10090 |
EP91,NP90 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-10020 |
EP91,NP90 |
2 | ||
| 77269 - TUBE, FUEL CONNECTING | ||||
| 77269-10010 |
EP91,NP90 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-10050 |
EP91,NP90 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-10030 |
EP91,NP90 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12110 |
EP9#,NP90 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12060 |
EP9#,NP90 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09034 |
EP9#,NP90 |
2 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09034 |
EP9#,NP90 |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
EP9# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EP9#,NP90 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-10070 |
EP9#,NP90 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-10030 |
EP9#,NP90 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
EP9#,NP90 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
EP9#,NP90 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
EP9#,NP90 外側 |
1 | ||
| 77391-12010 |
EP9#,NP90 内側 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
EP9#,NP90 外側 |
1 | ||
| 77391-12010 |
EP9#,NP90 内側 |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90119-06351 | ||||
| 90119-08866 | ||||
| 90149-50057 | ||||
| 90159-50219 | ||||
| 90159-60440 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90460-22002 | ||||
| 90460-28002 | ||||
| 90460-46003 | ||||
| 90467-05086 | ||||
| 90467-12056 | ||||
| 90469-22001 | ||||
| 90901-19038 | ||||
| 90980-11078 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 5802 | ||||

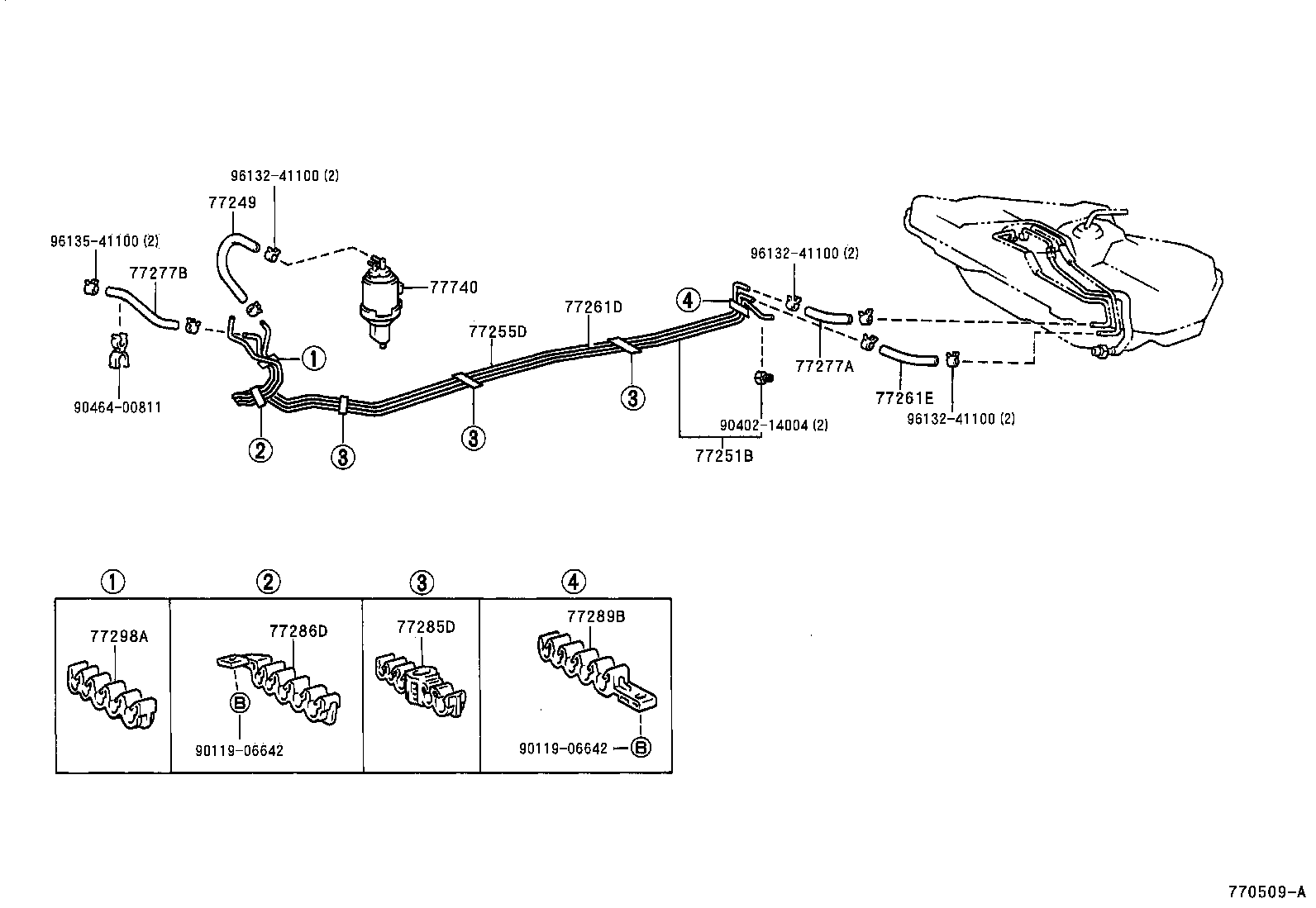

ILLUST NO. 2 OF 2(9601- )EP9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249 - HOSE, FUEL EMISSION | ||||
| 95333-06020 |
EP9# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-10310 |
EP91 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-10240 |
EP91 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-10190 |
EP91 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77419-10040 |
EP91 長さ=135 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77279-10060 |
EP9# 長さ=125 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 23271-11290 |
EP91 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10020 |
EP9#,NP90 |
3 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-10030 |
EP9#,NP90 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-10040 |
EP9#,NP90 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-10020 |
EP9#,NP90 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-10140 |
EP9# |
1 | ||
| Common parts | ||||
| 90119-06642 | ||||
| 90402-14004 | ||||
| 90464-00811 | ||||
| 96132-41100 | ||||
| 96135-41100 | ||||

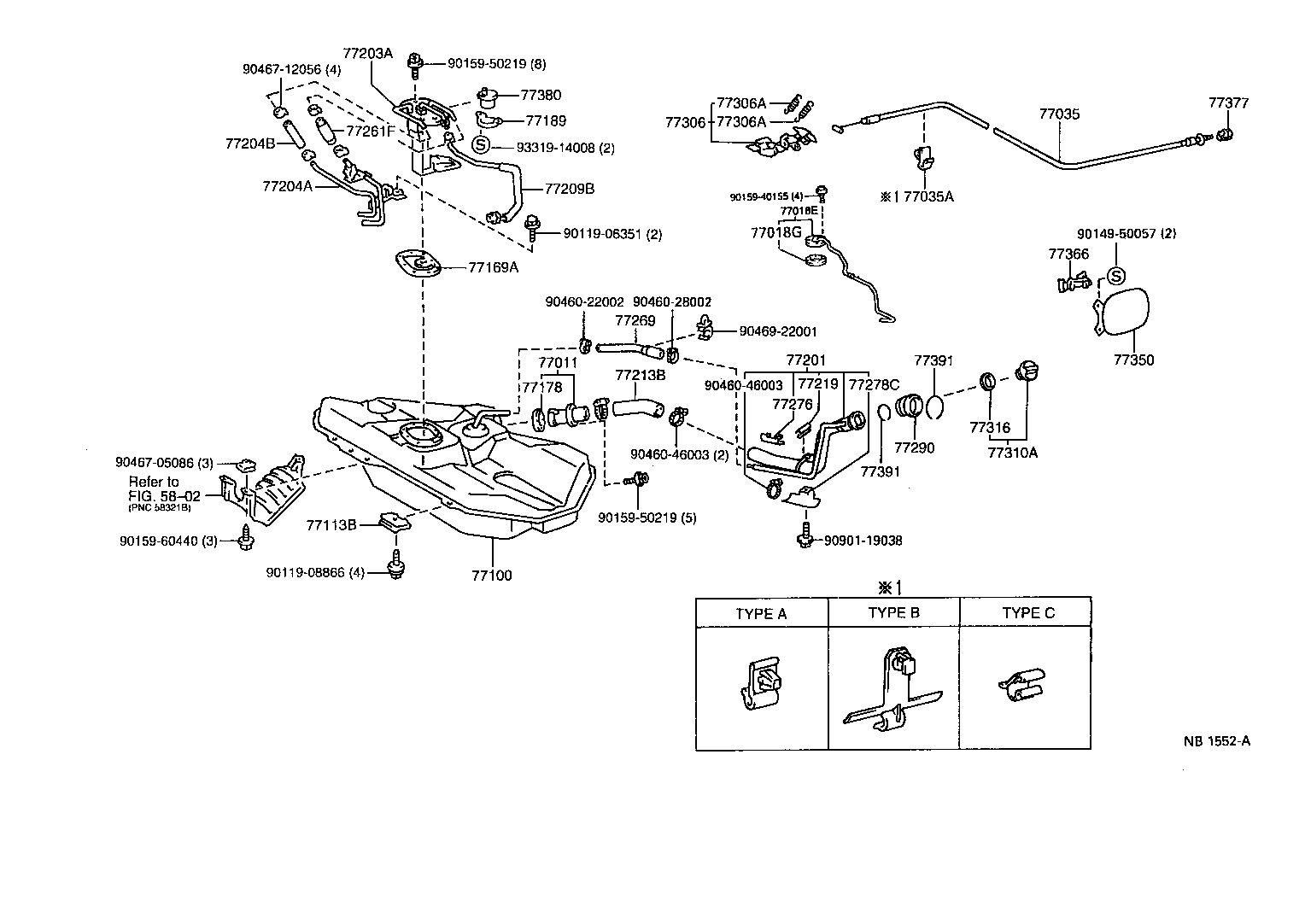

ILLUST NO. 1 OF 2(9601-9704)EP91
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10060 |
EP9#,NP90 |
1 | ||
| 77011-16100 |
EP91,NP90 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-16060 |
EP91,NP90 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
EP91,NP90 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-10090 |
EP9#,NP90 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP9#,NP90 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90463-05004 |
EP9#,NP90 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82711-12800 |
EP9#,NP90 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-16250 |
EP91,NP90 |
1 | ||
| 77001-16220 |
EP91,NP90 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EP91,NP90 |
4 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-16030 |
EP91,NP90 |
1 | ||
| 77169-20050 |
EP91,NP90 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
EP9#,NP90 |
1 | ||
| 77189 - RETAINER, FUEL CHECK VALVE | ||||
| 77189-18010 |
EP91,NP90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10200 |
EP91,NP90 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 23206-11160 |
EP91 |
1 | ||
| 23206-11440 |
EP91..GLZS,GLZV,RFLF,RFLX |
1 | ||
| 77203-16050 |
EP91 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 23206-11420 |
EP91..RFL |
1 | ||
| 23206-11460 |
EP91 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77203-16040 |
EP91 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 23204-11140 |
EP91 |
1 | ||
| 77204-16010 |
EP91 |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95334-06010 |
EP91 |
1 | ||
| 95333-06020 |
EP91 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-16020 |
EP91..5D..(CARAT,RFL,RFLF,RFLX);EP91..3D..(GLZS,GLZV,RFL,RFLF,RFLX) ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 23091-11090 |
EP91 |
1 | ||
| 77209-16070 |
EP91 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-10090 |
EP91,NP90 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-10020 |
EP91,NP90 |
2 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-10070 |
EP91 長さ=110 |
1 | ||
| 77269 - TUBE, FUEL CONNECTING | ||||
| 77269-10010 |
EP91,NP90 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-10050 |
EP91,NP90 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-10030 |
EP91,NP90 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12110 |
EP9#,NP90 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12060 |
EP9#,NP90 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09034 |
EP9#,NP90 |
2 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09034 |
EP9#,NP90 |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
EP9# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EP9#,NP90 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-10070 |
EP9#,NP90 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-10030 |
EP9#,NP90 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
EP9#,NP90 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
EP9#,NP90 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
EP9#,NP90 外側 |
1 | ||
| 77391-12010 |
EP9#,NP90 内側 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
EP9#,NP90 外側 |
1 | ||
| 77391-12010 |
EP9#,NP90 内側 |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-08866 | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-60440 | ||||
| 90460-22002 | ||||
| 90460-28002 | ||||
| 90460-46003 | ||||
| 90467-05086 | ||||
| 90467-12056 | ||||
| 90469-22001 | ||||
| 90901-19038 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 5802 | ||||
