EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

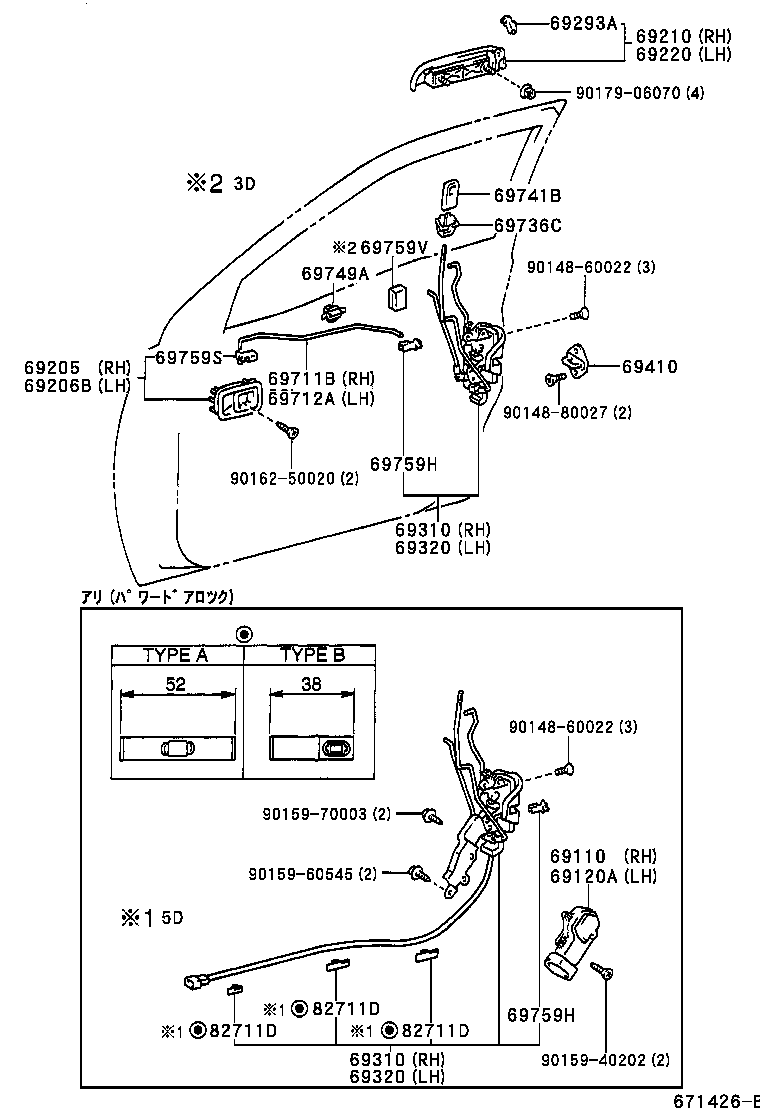

Click highlighted areas on diagram

diagram 69110 69120A 69205 69206B 69210 69220 69293A 69310 69310 69320 69320 69410 69711B 69712A 69736C 69741B 69749A 69759H 69759H 69759S 69759V 82711D 82711D 82711D 9014860022 9014860022 9014880027 9015940202 9015960545 9015970003 9016250020 9017906070
Part # Description Qty Price
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-10010

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-10010

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-10090B0

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
69205-16100B1

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
69205-16100B0

EP9#,NP90

SHADOW GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-10090B0

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
69206-16100B1

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
69206-16100B0

EP9#,NP90

SHADOW GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-16120

EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-16120

EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-10020

EP9#,NP90

PINK

 1
69293-10010

EP9#,NP90

ﾌﾞﾗｳﾝ

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-10230

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 1
69310-10270

EP9#..5D..(CARAT,REMIX,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-10230

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 1
69310-10270

EP9#..5D..(CARAT,REMIX,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-10230

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 1
69320-10270

EP9#..5D..(CARAT,REMIX,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-10230

EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)

 1
69320-10270

EP9#..5D..(CARAT,REMIX,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ- ﾄﾞｱ ﾛﾂｸ)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

EP9#,NP90

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-10080

EP9#,NP90..5D

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-10090

EP9#,NP90..5D

 1
69736C - GUIDE, FRONT DOOR LOCKING LINK
69736-12090

EP9#,NP90

 2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-12040B2

EP9#,NP90

BLUISH GRAY,TRIM1#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-12070

EP9#,NP90

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20040

EP9#,NP90

ｲｴﾛｰ

 1
69759-20050

EP9#,NP90

ﾌﾞﾗｳﾝ

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20040

EP9#,NP90

ｲｴﾛｰ

 1
69759-20050

EP9#,NP90

ﾌﾞﾗｳﾝ

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-20060

EP9#,NP90

GRAY

 1
69759-20070

EP9#,NP90

GREEN

 1
82711D - CLAMP, WIRING HARNESS
82711-1E020

EP9#..5D..RFLX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 4
82711-3A540

EP9#..5D..(REMIX,RFLF,RFLX)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 2
82711-1E020

EP9#..5D..(REMIX,RFLF,RFLX)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 4
82711-1E020

EP9#..5D..(CARAT,RFLF,RFLX)

 3
82711D - CLAMP, WIRING HARNESS
82711-1E020

EP9#..5D..RFLX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 4
82711-3A540

EP9#..5D..(REMIX,RFLF,RFLX)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 2
82711-1E020

EP9#..5D..(REMIX,RFLF,RFLX)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 4
82711-1E020

EP9#..5D..(CARAT,RFLF,RFLX)

 3
82711D - CLAMP, WIRING HARNESS
82711-1E020

EP9#..5D..RFLX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 4
82711-3A540

EP9#..5D..(REMIX,RFLF,RFLX)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 2
82711-1E020

EP9#..5D..(REMIX,RFLF,RFLX)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ﾊﾟﾜ- ﾄﾞｱﾛﾂｸ)

 4
82711-1E020

EP9#..5D..(CARAT,RFLF,RFLX)

 3
Common parts
90148-60022
90148-80027
90159-40202
90159-60545
90159-70003
90162-50020
90179-06070
