EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )5D

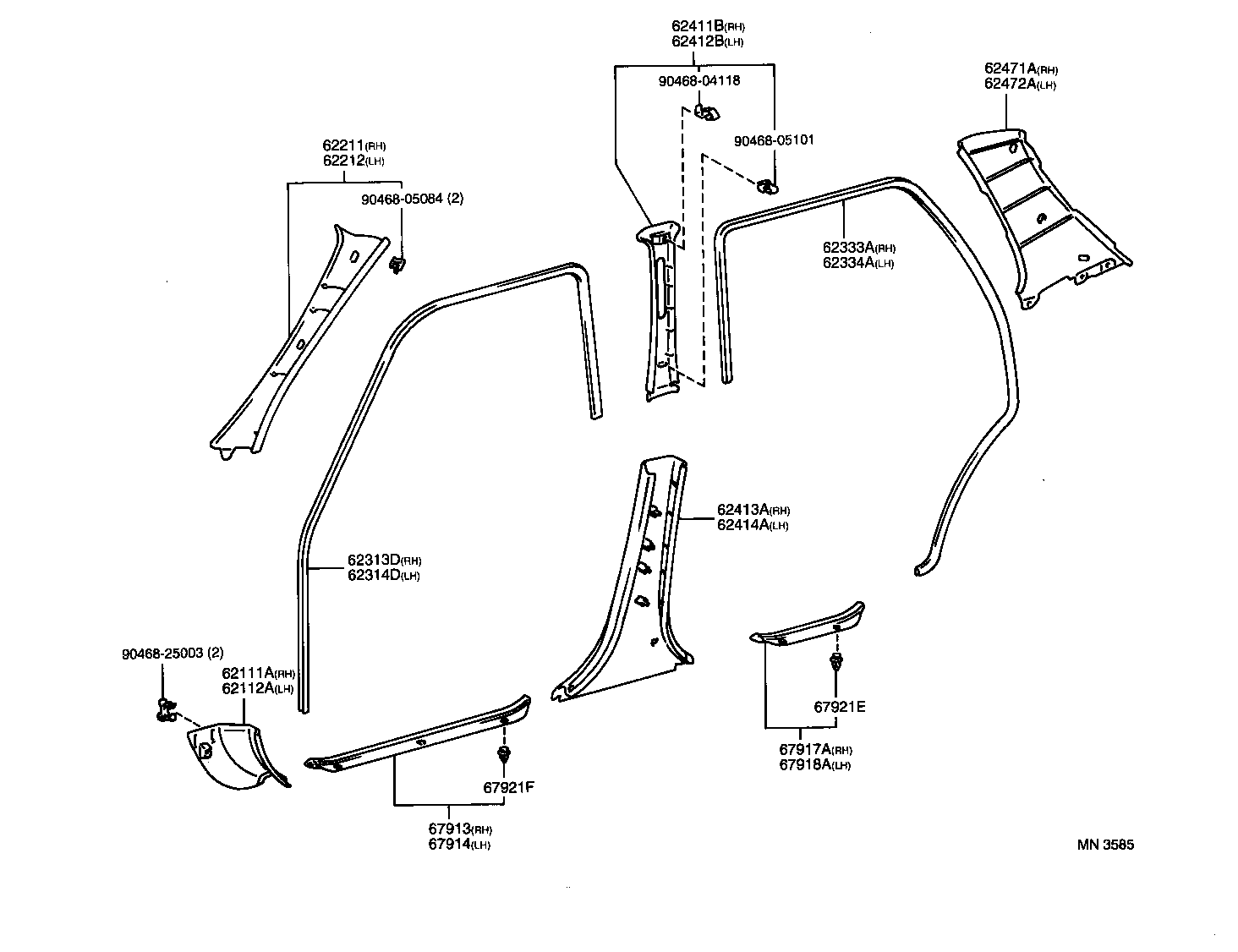

Click highlighted areas on diagram

diagram 62111A 62112A 62211 62212 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62471A 62472A 67913 67914 67917A 67918A 67921E 67921F 9046804118 9046805084 9046805101 9046825003
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62111-16120B2

EP9#,NP90..RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62112-16100B2

EP9#,NP90..RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62112-16101B2

EP9#,NP90..RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-10080B0

EP9#,NP90

LT.BLUISH GRAY,TRIM1#

 1
62211-10080B0

EP9#,NP90..GLZS,GLZV,RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-10090B0

EP9#,NP90

LT.BLUISH GRAY,TRIM1#

 1
62212-10090B0

EP9#,NP90..GLZS,GLZV,RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-10120B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62313-10120B0

EP9#,NP90..5D

LT.BLUISH GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-10120B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62313-10120B0

EP9#,NP90..5D

LT.BLUISH GRAY,TRIM1#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-10040B0

EP9#,NP90..5D

LT.BLUISH GRAY,TRIM1#

 1
62333-10040B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-10040B0

EP9#,NP90..5D

LT.BLUISH GRAY,TRIM1#

 1
62333-10040B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-10140B0

EP9#..5D..RFLX

LT.BLUISH GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-10140B0

EP9#..5D..RFLX

LT.BLUISH GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62030-10010B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62040-10010B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-10200B0

EP9#..5D..(RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62471-10200B0

EP9#..5D..(CARAT,REMIX,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-10200B0

EP9#..5D..(RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62472-10200B0

EP9#..5D..(CARAT,REMIX,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-10100B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-10071B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67914-10070B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-10050B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-10030B0

EP9#,NP90..5D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67921E - RETAINER, REAR DOOR SCUFF PLATE
67921-16020

EP9#,NP90..5D

 4
67921-16020

EP9#,NP90..5D

 6
67921F - RETAINER, FRONT DOOR SCUFF PLATE
67921-16020

EP9#,NP90..5D

 6
67921-16020

EP9#,NP90..5D

 4
Common parts
90468-04118
90468-05084
90468-05101
90468-25003
