EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

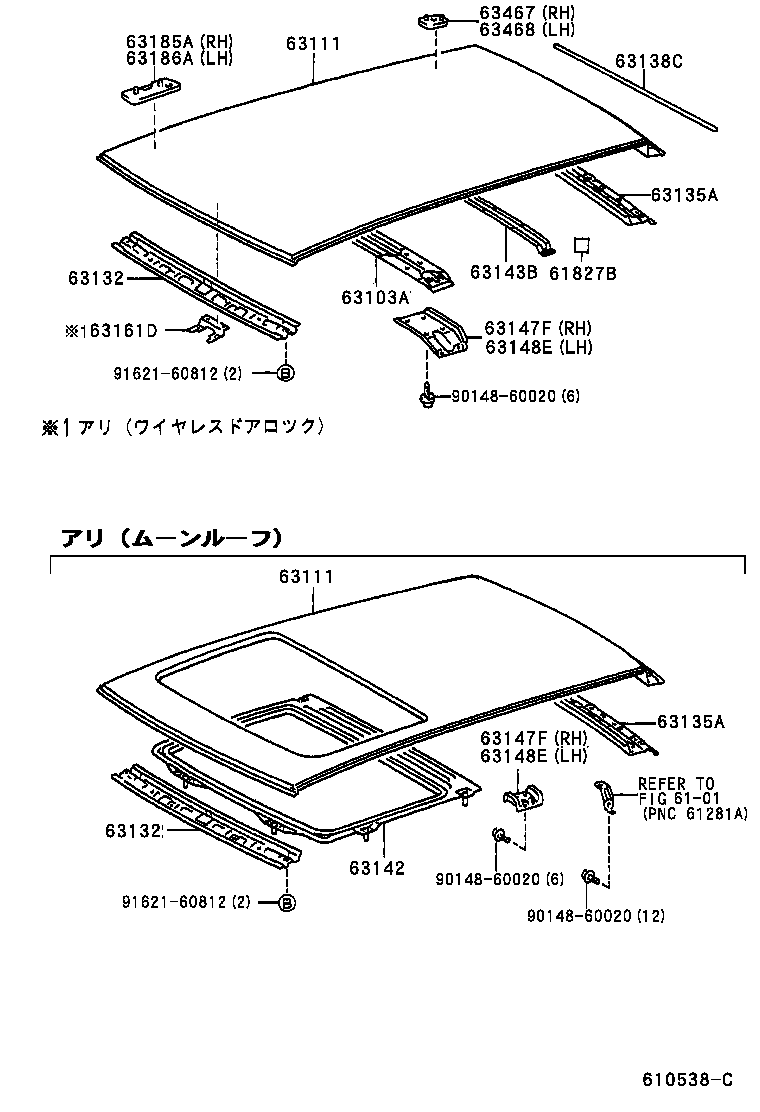

ILLUST NO. 1 OF 3(9601- )

Click highlighted areas on diagram

diagram 6101 61827B 63103A 63111 63111 63132 63132 63135A 63135A 63138C 63142 63143B 63147F 63147F 63148E 63148E 63161D 63185A 63186A 63467 63468 9014860020 9014860020 9014860020 9162160812 9162160812
Part # Description Qty Price
61827B - PLATE, NOISE CONTROL, NO.4
61827-10010

EP9#,NP90

 2
61815-32020

EP9#,NP90

 2
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-10040

EP9#,NP90..5D

 1
63111 - PANEL, ROOF
63111-10190

EP9#,NP90

 1
63111 - PANEL, ROOF
63111-10190

EP9#,NP90

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-10100

EP9#,NP90

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-10100

EP9#,NP90

 1
63135A - FRAME, BACK DOOR OPENING, LOWER
63135-10040

EP9#,NP90

 1
63135A - FRAME, BACK DOOR OPENING, LOWER
63135-10040

EP9#,NP90

 1
63138C - SEAL, BACK DOOR OPENING, UPPER
63138-10010

EP9#,NP90

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-10040

EP9#,NP90

 1
63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH
63147-10010

EP9#,NP90

 1
63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH
63147-10010

EP9#,NP90

 1
63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH
63148-10020

EP9#,NP90

 1
63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH
63148-10020

EP9#,NP90

 1
63161D - PLATE, ROOF HEADER PANEL, NO.1
63161-10010

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

 1
Common parts
90148-60020
91621-60812
Linked diagrams
6101
