EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

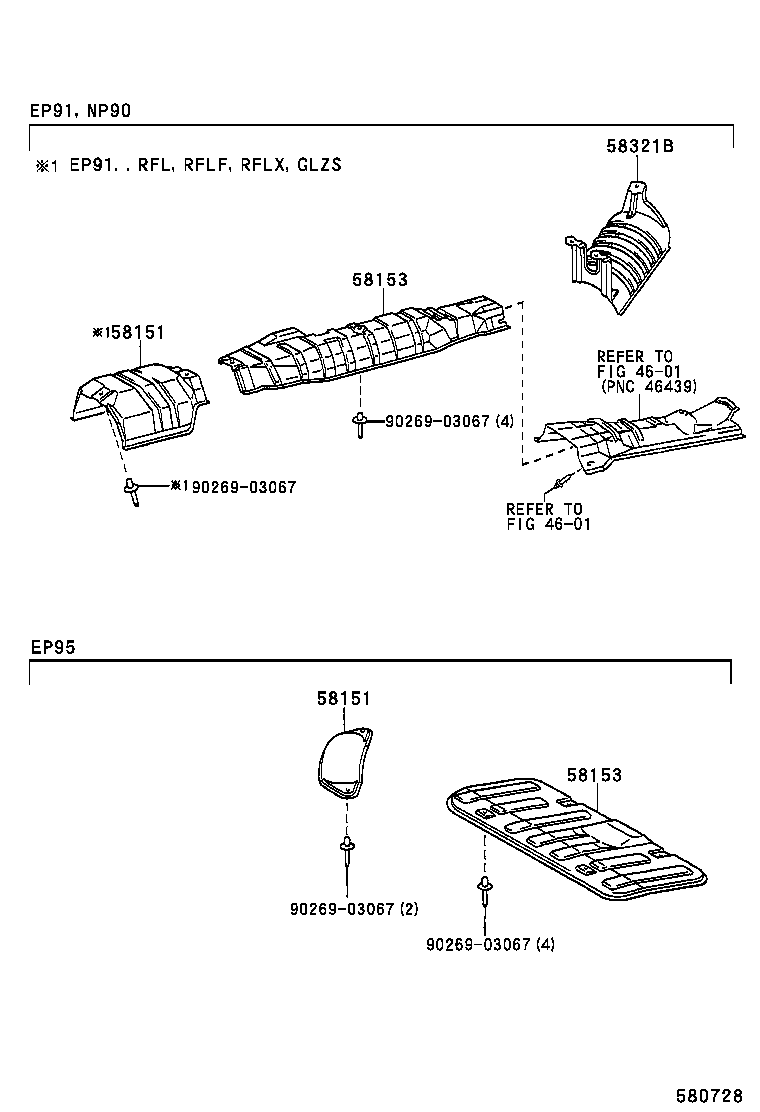

Click highlighted areas on diagram

diagram 4601 4601 58151 58151 58153 58153 58321B 9026903067 9026903067 9026903067 9026903067
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-16050

EP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-16050

EP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-10020

EP91,NP90

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-10020

EP91,NP90

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-10020

EP91,NP90

 1
Common parts
90269-03067
Linked diagrams
4601
