EP91-AHPEK (1996)
Toyota Starlet

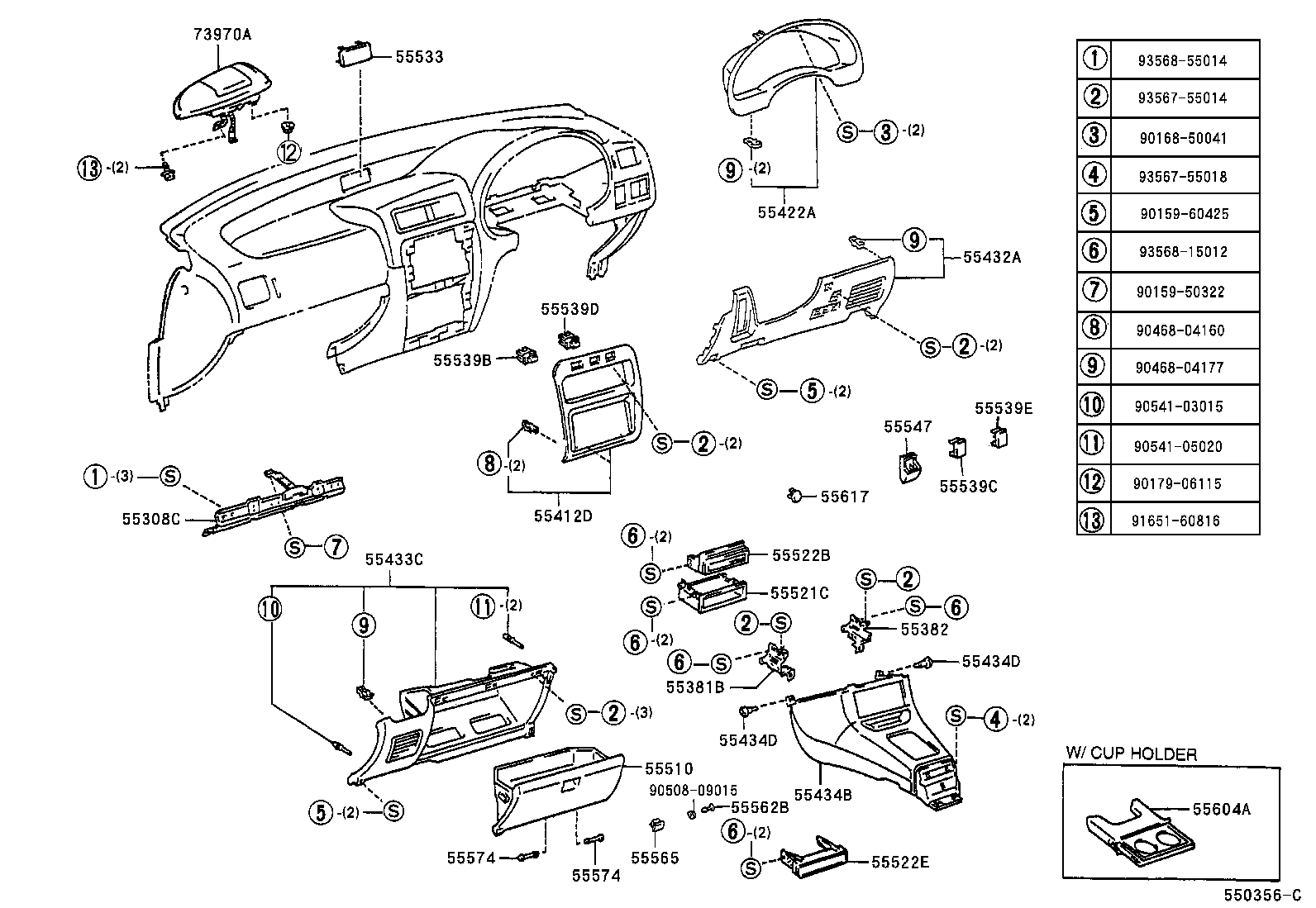

ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-10100 |
EP9#,NP90 |
1 | ||
| 55308-10080 |
EP9#,NP90 |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-16040 |
EP9#,NP90 |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-16040 |
EP9#,NP90 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-10120 |
EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-10130 |
EP9#,NP90..RFL,RFLF,RFLX |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55303-10130B0 |
EP9#,NP90..RFL,RFLF LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55303-10130B0 |
EP9#,NP90..RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55303-10140B1 |
EP9#..RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-10020B1 |
EP9#,NP90..RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-10010B0 |
EP9#,NP90 BLUISH GRAY,TRIM1# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07071B3 |
EP9#,NP90 GRAY,TRIM1# |
2 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07071B3 |
EP9#,NP90 GRAY,TRIM1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-10080B1 |
EP9#,NP90..RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
EP9#,NP90 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
EP9#,NP90 |
1 | ||
| 55522E - COVER, CUP HOLDER OPENING | ||||
| 55522-16030 |
EP91,NP90..RFL |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-10060B0 |
NP90;EP91..(3FC,4F,5F)..(GLZV,RFL) BLUISH GRAY,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-10050 |
EP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-16040B0 |
EP9#,NP90..CARAT,RFL,RFLF,RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-10050 |
EP91,NP90..RFL |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-16040B0 |
EP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-12030 |
EP95,NP90..RFL,RFLF;EP91..(3FC,4F,5F)..(GLZV,RFL,RFLF) |
1 | ||
| 55547-12030 |
EP91..5F..GLZV;EP9#,NP90..GLZS,RFL,RFLF |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
EP9#,NP90 |
2 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-10010B1 |
EP9#,NP90..RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
EP9#,NP90 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
EP9#,NP90 |
2 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-10010 |
EP9#,NP90 |
1 | ||
| 55617 - COVER, DEFOGGER KNOB HOLE | ||||
| 55617-10010B2 |
EP9#,NP90..RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55539-16060B2 |
EP9#,NP90..RFL,RFLF,RFLX LT.BLUISH GRAY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-10030B0 |
EP9#,NP90 BLUISH GRAY,TRIM1# |
1 | ||
| 73970-10010B0 |
EP9#,NP90 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-60425 | ||||
| 90168-50041 | ||||
| 90179-06115 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90508-09015 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 91651-60816 | ||||
| 93567-55014 | ||||
| 93567-55018 | ||||
| 93568-15012 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-10380B0 |
EP9#,NP90..GLZS,GLZV,RFL,RFLF,RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 55301-10390B0 |
EP9#,NP90..GLZS,GLZV,RFL,RFLF,RFLX ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 55301-10380B0 |
EP91,NP90..RFL,RFLF,RFLX BLUISH GRAY,TRIM1# |
1 | ||
| 55301-10410B0 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-10040 |
EP9#,NP90 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-16120 |
EP9#,NP90 |
1 | ||
| 55307-16110 |
EP9#,NP90 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-10130 |
EP9#,NP90 |
1 | ||
| 55330-10130 |
EP91,NP90..RFL |
1 | ||
| 55330-10140 |
EP9#,NP90 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55330-10160 |
EP91,NP90 ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 55330-10130 |
EP91..4FC..GLZV;EP9#..CARAT,GLZS,RFLF,RFLX ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 55330-10170 |
EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55330-10140 |
EP91,NP90..RFL ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 55330-10140 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-10040 |
EP9#,NP90 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-10120B0 |
EP9#,NP90 BLUISH GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-10050B0 |
EP9#,NP90 BLUISH GRAY,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-10010B0 |
EP9#,NP90 BLUISH GRAY,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-16060 |
EP9#,NP90 |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-16040 |
EP9#,NP90 |
1 | ||
| Common parts | ||||
| 90168-50041 | ||||
| 90179-06009 | ||||
| 90179-08063 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14013 | ||||
| 90901-19021 | ||||
| 91626-60820 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||
