EP91-AHPEK (1996)
Toyota Starlet
(9601- )

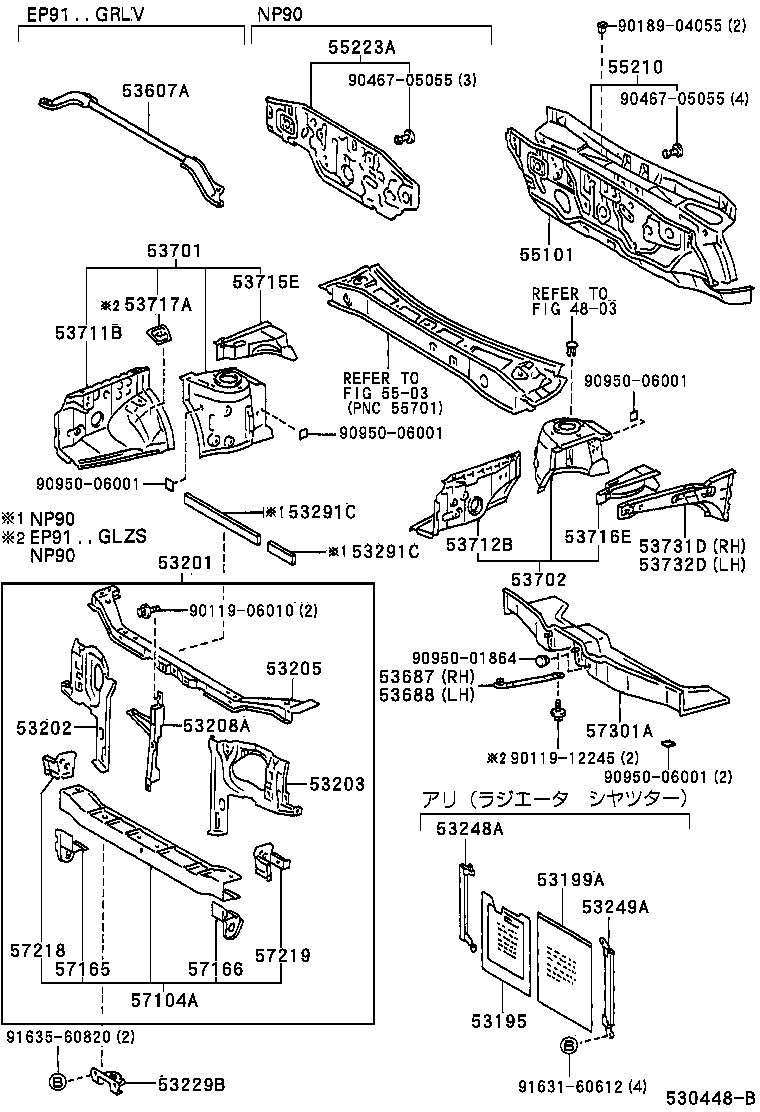

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-10500 |
EP91..RFL,RFLF,RFLX;EP95..5F..(RFLF,RFLX) |
1 | ||
| 53201-10501 |
EP91..RFL,RFLF,RFLX;EP95..5F..(RFLF,RFLX) |
1 | ||
| 53201-10640 |
EP91..RFL,RFLF,RFLX;EP95..5F..(RFLF,RFLX) |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-10160 |
EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-10230 |
EP9# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-10140 |
EP95..5F;EP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-10100 |
EP9#,NP90..RFL,RFLF,RFLX |
1 | ||
| 53208-10101 |
EP9#,NP90..RFL,RFLF,RFLX |
1 | ||
| 53229B - BRACKET, RADIATOR MOUNTING, LOWER NO.2 | ||||
| 53229-10070 |
EP95..5F;EP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 53687 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH | ||||
| 53687-10030 |
EP9#,NP90 |
1 | ||
| 53688 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH | ||||
| 53687-10030 |
EP9#,NP90 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-10370 |
EP9#,NP90 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-10380 |
EP9#,NP90 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-16141 |
EP9#,NP90 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-16071 |
EP9#,NP90 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-10050 |
EP9#,NP90 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-10050 |
EP9#,NP90 |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-10040 |
EP91,NP90..(4FC,5F)..(GLZV,RFL) |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-10070 |
EP9#,NP90 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-10070 |
EP9#,NP90 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-10871 |
EP91..4FC..GLZV;EP9#..GLZS,RFL,RFLF,RFLX |
1 | ||
| 55101-10871 |
EP9# |
1 | ||
| 55101-1C070 |
EP9#..ATM..(CARAT,RFL,RFLF,RFLX) ｱﾘ(ABS) |
1 | ||
| 55101-10852 |
EP91..4F..RFL |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-10250 |
EP9#,NP90 |
1 | ||
| 55210-10251 |
EP9#,NP90 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-10071 |
EP95..5F;EP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-10050 |
EP9#,NP90 |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-10050 |
EP9#,NP90 |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-16030 |
EP9#,NP90 |
1 | ||
| 57218-16031 |
EP9#,NP90 |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-16031 |
EP9#,NP90 |
1 | ||
| 57219-16030 |
EP9#,NP90 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-10120 |
EP91,NP90..(4FC,5F)..(GLZV,RFL) |
1 | ||
| 57301-16130 |
EP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 57301-10140 |
EP91..CARAT,GLZS,RFL,RFLF,RFLX |
1 | ||
| Common parts | ||||
| 90119-06010 | ||||
| 90119-12245 | ||||
| 90189-04055 | ||||
| 90467-05055 | ||||
| 90950-01864 | ||||
| 90950-06001 | ||||
| 91631-60612 | ||||
| 91635-60820 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 5503 | ||||
