EP91-AHPEK (1996)
Toyota Starlet
ILLUST NO. 2 OF 2(9601- )NP90 ; (9601- )EP9#..5D ; (9601-)EP9#..3D..GLZS,GLZV,RFL,RFLF,RFL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

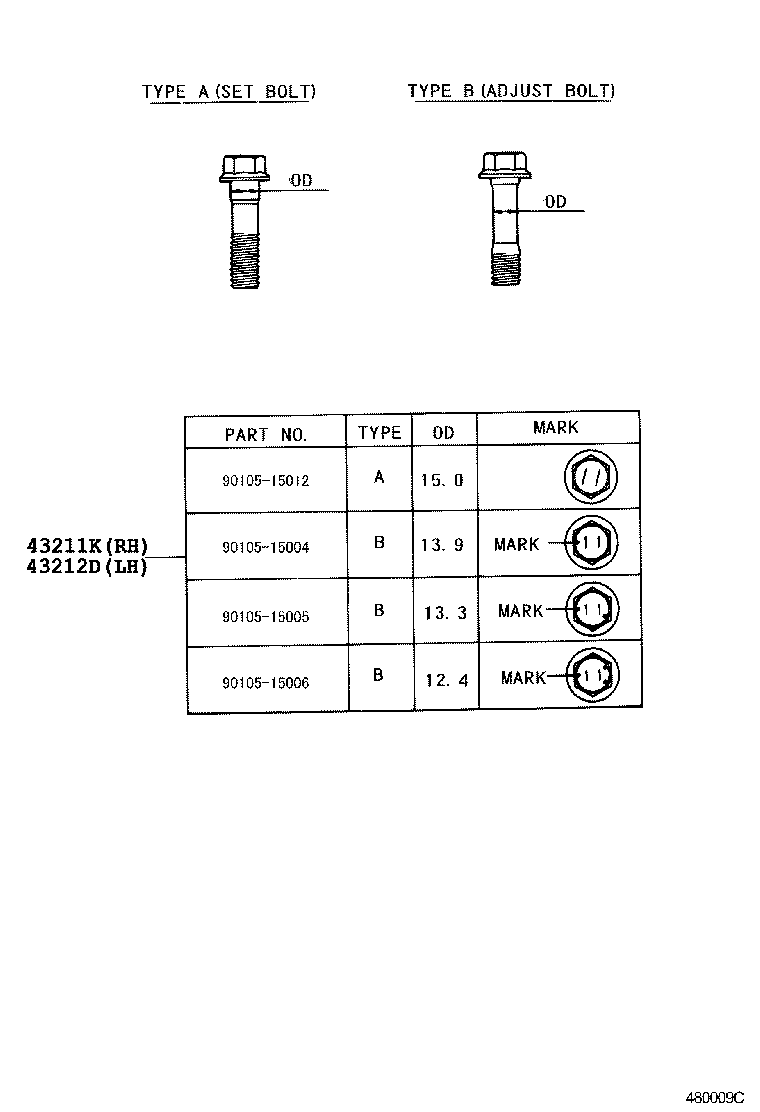

| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15005 |
EP9#,NP90 外径=13.3 |
1 | ||
| 90105-15006 |
EP9#,NP90 外径=12.4 |
1 | ||
| 90105-15004 |
EP9#,NP90 外径=13.9 |
1 | ||
| 90105-15012 |
EP9#,NP90 外径=15.0 |
2 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15005 |
EP9#,NP90 外径=13.3 |
1 | ||
| 90105-15004 |
EP9#,NP90 外径=13.9 |
1 | ||
| 90105-15006 |
EP9#,NP90 外径=12.4 |
1 | ||
| 90105-15012 |
EP9#,NP90 外径=15.0 |
2 | ||
ILLUST NO. 1 OF 2(9601- )NP90 ; (9601- )EP9#..5D ; (9601-)EP9#..3D..GLZS,GLZV,RFL,RFLF,RFL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-10062 |
EP91..CARAT,GLZS,REMIX,RFLF,RFLX |
1 | ||
| 43211-10071 |
EP91,NP90..RFL |
1 | ||
| 43211-10062 |
EP91,NP90..RFL ｱﾘ(ABS) |
1 | ||
| 43211-10081 |
EP91,NP90..RFL |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15005 |
EP9#,NP90 外径=13.3 |
1 | ||
| 90105-15006 |
EP9#,NP90 外径=12.4 |
1 | ||
| 90105-15004 |
EP9#,NP90 外径=13.9 |
1 | ||
| 90105-15012 |
EP9#,NP90 外径=15.0 |
2 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15006 |
EP9#,NP90 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-10061 |
EP91,NP90..RFL |
1 | ||
| 43212-10042 |
EP91..CARAT,GLZS,REMIX,RFLF,RFLX |
1 | ||
| 43212-10051 |
EP91,NP90..RFL |
1 | ||
| 43212-10042 |
EP91,NP90..RFL ｱﾘ(ABS) |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15005 |
EP9#,NP90 外径=13.3 |
1 | ||
| 90105-15004 |
EP9#,NP90 外径=13.9 |
1 | ||
| 90105-15006 |
EP9#,NP90 外径=12.4 |
1 | ||
| 90105-15012 |
EP9#,NP90 外径=15.0 |
2 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15006 |
EP9#,NP90 |
2 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90119-10407 |
EP9#,NP90 |
2 | ||
| 43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90179-10088 |
EP9#,NP90 |
4 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-19125 |
EP91..CARAT,RFL,RFLF,RFLX |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-12007 |
EP9#,NP90 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-19035 |
EP91..CARAT,RFL,RFLF,RFLX |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-12007 |
EP9#,NP90 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-10110 |
EP91..CARAT,RFL,RFLF,RFLX |
1 | ||
| 48068-10100 |
EP95;EP91,NP90..(4FC,5F)..(GLZS,GLZV,RFL) |
1 | ||
| 48068-10070 |
EP91..CARAT,RFL,RFLF,RFLX |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90119-12099 |
EP9#,NP90 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-10050 |
EP91..CARAT,RFL,RFLF,RFLX |
1 | ||
| 48069-10080 |
EP95;EP91,NP90..(4FC,5F)..(GLZS,GLZV,RFL) |
1 | ||
| 48069-10090 |
EP91..CARAT,RFL,RFLF,RFLX |
1 | ||
| 48652A - BOLT(FOR FRONT LOWER ARM BRACKET) | ||||
| 90901-19018 |
EP9#,NP90 |
4 | ||
| 48652A - BOLT(FOR FRONT LOWER ARM BRACKET) | ||||
| 90901-19018 |
EP9#,NP90 |
4 | ||
| 48652B - BRACKET, FRONT LOWER ARM, RH | ||||
| 48652-10020 |
EP9#,NP90 |
1 | ||
| 48652-46010 |
EP9#,NP90 |
1 | ||
| 48652B - BRACKET, FRONT LOWER ARM, RH | ||||
| 48652-10020 |
EP9#,NP90 |
1 | ||
| 48652-46010 |
EP9#,NP90 |
1 | ||
| 48659 - BRACKET, FRONT LOWER ARM, LH | ||||
| 48659-46010 |
EP9#,NP90 |
1 | ||
| 48652-10020 |
EP9#,NP90 |
1 | ||
| 48659 - BRACKET, FRONT LOWER ARM, LH | ||||
| 48659-46010 |
EP9#,NP90 |
1 | ||
| 48652-10020 |
EP9#,NP90 |
1 | ||
| Common parts | ||||
| 90119-10871 | ||||
| 90468-16022 | ||||
| 90950-01269 | ||||
| 94622-41400 | ||||
