Toyota Starlet EP91 STEERING WHEEL

EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999

Engine 4EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9604- )

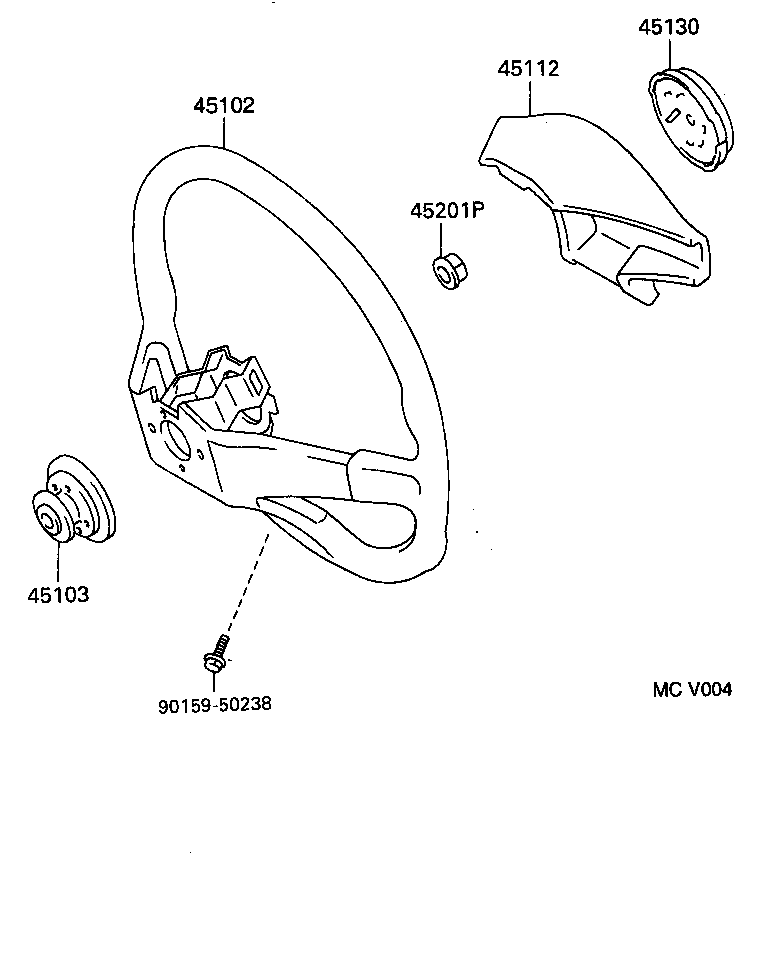

Click highlighted areas on diagram

4-SPOKE, ｱﾘ(ｷｶｲｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-10430B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLUISH GRAY,TRIM1#	01/1996 - 04/1996	1
45100-10440B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45100-10431B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1996 - 04/1997	1
45100-16600B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45100-16450B1	EP91,NP90..RFL 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45100-16510B1	EP9#..CARAT,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45100-16510B1	EP91,NP90..RFL 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45100-16500B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130 - BUTTON ASSY, HORN
45130-16390B1	EP91,NP90..RFL BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16390B1	EP9#..CARAT,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16360B1	EP91,NP90..RFL ﾅｼ(*80)ｳﾚﾀﾝ3-ｽﾎﾟ-ｸ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45130-16350B1	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45130-16400B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16450B0	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 4-SPOKE),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45130-16370B0	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-16020B0	EP9#,NP90..CARAT,RFL,RFLF,RFLX BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45201P - NUT, STEERING WHEEL SET
90179-12071	EP9#,NP90	01/1996 - 12/2999	1
Common parts
90148-60011
90148-60031
90159-50199

(9601- )

Click highlighted areas on diagram

4-SPOKE, ｱﾘ(ﾃﾞﾝｷｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-10430B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLUISH GRAY,TRIM1#	01/1996 - 04/1996	1
45100-10440B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45100-10431B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1996 - 04/1997	1
45100-16600B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45100-16450B1	EP91,NP90..RFL 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45100-16510B1	EP9#..CARAT,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45100-16510B1	EP91,NP90..RFL 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45100-16500B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130 - BUTTON ASSY, HORN
45130-16390B1	EP91,NP90..RFL BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16390B1	EP9#..CARAT,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16360B1	EP91,NP90..RFL ﾅｼ(*80)ｳﾚﾀﾝ3-ｽﾎﾟ-ｸ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45130-16350B1	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45130-16400B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16450B0	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 4-SPOKE),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45130-16370B0	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45201P - NUT, STEERING WHEEL SET
90179-12071	EP9#,NP90	01/1996 - 12/2999	1
Common parts
90148-60011
90148-60031
90159-50199

(9712- )

Click highlighted areas on diagram

3-SPOKE, ｱﾘ(ﾃﾞﾝｷｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-10430B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLUISH GRAY,TRIM1#	01/1996 - 04/1996	1
45100-10440B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45100-10431B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1996 - 04/1997	1
45100-16600B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45100-16450B1	EP91,NP90..RFL 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45100-16510B1	EP9#..CARAT,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45100-16510B1	EP91,NP90..RFL 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45100-16500B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130 - BUTTON ASSY, HORN
45130-16390B1	EP91,NP90..RFL BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16390B1	EP9#..CARAT,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16360B1	EP91,NP90..RFL ﾅｼ(*80)ｳﾚﾀﾝ3-ｽﾎﾟ-ｸ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45130-16350B1	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45130-16400B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16450B0	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 4-SPOKE),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45130-16370B0	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45201P - NUT, STEERING WHEEL SET
90179-12071	EP9#,NP90	01/1996 - 12/2999	1
Common parts
90148-60007

(9601- )

Click highlighted areas on diagram

3-SPOKE, URETHANE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-10430B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLUISH GRAY,TRIM1#	01/1996 - 04/1996	1
45100-10440B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45100-10431B0	EP9#,NP90..RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1996 - 04/1997	1
45100-16600B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45100-16450B1	EP91,NP90..RFL 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45100-16510B1	EP9#..CARAT,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45100-16510B1	EP91,NP90..RFL 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45100-16500B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-16200	NP90;EP91..(3FC,4F,5F)..(GLZV,RFL)	01/1996 - 12/1997	1
45130 - BUTTON ASSY, HORN
45130-16390B1	EP91,NP90..RFL BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16390B1	EP9#..CARAT,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16360B1	EP91,NP90..RFL ﾅｼ(*80)ｳﾚﾀﾝ3-ｽﾎﾟ-ｸ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45130-16350B1	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45130-16400B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16450B0	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 4-SPOKE),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45130-16370B0	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-16190B1	EP91,NP90..RFL BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45201P - NUT, STEERING WHEEL SET
90179-12071	EP9#,NP90	01/1996 - 12/2999	1
Common parts
90159-50238
90168-40103

(9601-9612)

Click highlighted areas on diagram

3-SPOKE, MOMO

Part #	Description	Period	Qty
45130 - BUTTON ASSY, HORN
45130-16390B1	EP91,NP90..RFL BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16390B1	EP9#..CARAT,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16360B1	EP91,NP90..RFL ﾅｼ(*80)ｳﾚﾀﾝ3-ｽﾎﾟ-ｸ,BLUISH GRAY,TRIM1#	01/1996 - 12/1997	1
45130-16350B1	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45130-16400B1	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#	04/1997 - 12/1997	1
45130-16450B0	EP9#,NP90..CARAT,RFL,RFLF,RFLX ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 4-SPOKE),BLUISH GRAY,TRIM1#	12/1997 - 07/1999	1
45130-16370B0	EP9#,NP90..RFL,RFLF,RFLX ｱﾘ(ｷｶｲｼｷ *80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#	01/1996 - 04/1997	1
45201P - NUT, STEERING WHEEL SET
90179-12071	EP9#,NP90	01/1996 - 12/2999	1
Common parts
90159-50238

EP91-AHPEK (1996)

(9604- )

(9601- )

(9712- )

(9601- )

(9601-9612)
