EP91-AHPEK (1996)
Toyota Starlet

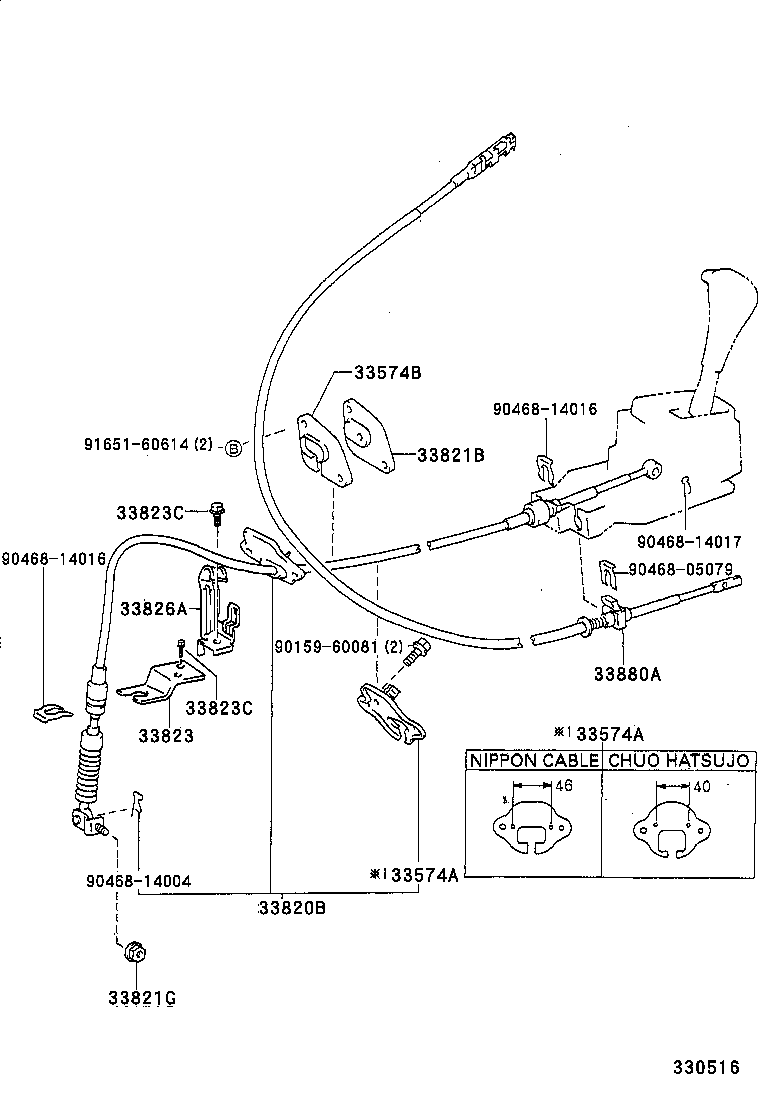

ILLUST NO. 2 OF 2(9601- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10060 |
EP9#,NP90..ATM NIPPON CABLE |
1 | ||
| 33574-10070 |
EP9#,NP90..ATM CHUO HATSUJO |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10060 |
EP9#,NP90..ATM NIPPON CABLE |
1 | ||
| 33574-10070 |
EP9#,NP90..ATM CHUO HATSUJO |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EP9#,NP90 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-10281 |
EP9#,NP90..4FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01663 |
EP9#,NP90..ATM |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
EP9#,NP90..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-10020 |
EP9#,NP90..4FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-60816 |
EP9#,NP90..4FC |
3 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-60816 |
EP9#,NP90..4FC |
3 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-10010 |
EP9#,NP90..4FC |
1 | ||
| 33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT) | ||||
| 33880-10010 |
EP9#,NP90..ATM |
1 | ||
| 33880-10020 |
EP9#,NP90..ATM |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90468-05079 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91651-60614 | ||||

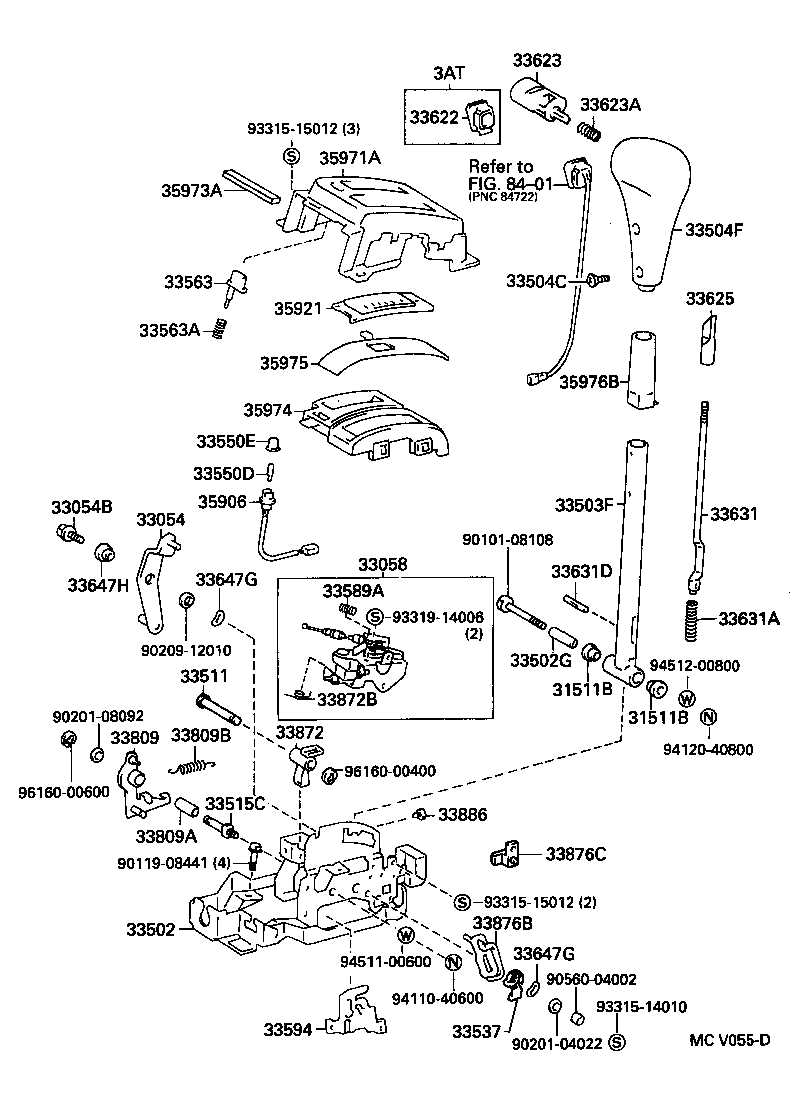

ILLUST NO. 1 OF 2(9601- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31511B - BUSH(FOR CONTROL SHAFT) | ||||
| 90385-11003 |
EP9#,NP90..ATM |
2 | ||
| 31511B - BUSH(FOR CONTROL SHAFT) | ||||
| 90385-11003 |
EP9#,NP90..ATM |
2 | ||
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-10050 |
EP9#,NP90..ATM |
1 | ||
| 33054B - BOLT(FOR SHIFT LEVER NO.2) | ||||
| 90119-08606 |
EP9#,NP90..ATM |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-10020 |
EP9#,NP90..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-10160 |
EP9#,NP90..ATM |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08114 |
EP9#,NP90..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-10010 |
EP9#,NP90..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
EP9#,NP90..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-14040P0 |
EP91..4F..(CARAT,RFL,RFLF) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-14040B0 |
EP91..4F BLUISH GRAY,TRIM1# |
1 | ||
| 33542-12211B1 |
EP9#,NP90..ATM..(CARAT,RFL,RFLF,RFLX) BLUISH GRAY,TRIM1# |
1 | ||
| 33542-12211B0 |
EP9#,NP90..ATM..(CARAT,RFL,RFLF,RFLX) SHADOW GRAY,TRIM1# |
1 | ||
| 33542-12210B1 |
EP9#,NP90..ATM..(RFL,RFLF,RFLX) BLUISH GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-10050 |
EP9#,NP90..ATM |
1 | ||
| 33515C - SHAFT, CONTROL, NO.2 | ||||
| 33515-12010 |
EP9#,NP90..ATM |
1 | ||
| 33537 - PLATE, CONTROL LEVER | ||||
| 33537-10060 |
EP9#,NP90..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
EP9#,NP90..ATM 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04014 |
EP9#,NP90..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-10020 |
EP9#,NP90..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06063 |
EP9#,NP90..ATM |
1 | ||
| 33589A - SPRING, COMPRESSION (FOR SHIFT LOCK SOLENOID LINK) | ||||
| 90501-06063 |
EP9#,NP90..ATM |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-10020 |
EP9#,NP90..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12100B1 |
EP9#,NP90..ATM..(RFL,RFLF,RFLX) BLUISH GRAY,TRIM1# |
1 | ||
| 33623-12101B0 |
EP9#,NP90..ATM..(CARAT,RFL,RFLF,RFLX) SHADOW GRAY,TRIM1# |
1 | ||
| 33623-12101B1 |
EP9#,NP90..ATM..(CARAT,RFL,RFLF,RFLX) BLUISH GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07037 |
EP9#,NP90..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-12020 |
EP9#,NP90..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-10070 |
EP9#,NP90..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08167 |
EP9#,NP90..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
EP9#,NP90..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-12002 |
EP9#,NP90..ATM |
2 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-12002 |
EP9#,NP90..ATM |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-12040 |
EP9#,NP90..ATM |
1 | ||
| 33809 - LEVER SUB-ASSY, CABLE CONTROL | ||||
| 33809-10010 |
EP9#,NP90..ATM |
1 | ||
| 33809A - BUSH (FOR CABLE CONTROL LEVER) | ||||
| 90386-08041 |
EP9#,NP90..ATM |
1 | ||
| 33809B - SPRING, TORSION (FOR CABLE CONTROL LEVER) | ||||
| 90506-05005 |
EP9#,NP90..ATM |
1 | ||
| 33872 - LINK, SHIFT LOCK RELEASE, NO.2 | ||||
| 33872-10010 |
EP9#,NP90..ATM |
1 | ||
| 33872B - SPRING, TORSION (FOR SHIFT LOCK RELEASE LINK) | ||||
| 90949-03040 |
EP9#,NP90..ATM |
1 | ||
| 33876B - GUIDE,SHIFT LOCK PLATE NO.1 | ||||
| 33876-10010 |
EP9#,NP90..ATM |
1 | ||
| 33876C - GUIDE,SHIFT LOCK PLATE NO.2 | ||||
| 33876-10020 |
EP9#,NP90..ATM |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22020 |
EP9#,NP90..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-10050 |
EP9#,NP90..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-10140 |
EP9#,NP90..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-10091 |
EP9#,NP90..ATM |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-10010 |
EP9#,NP90..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-10100 |
EP9#,NP90..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-10060 |
EP9#,NP90..ATM |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-10030B1 |
EP9#,NP90..ATM..(CARAT,RFL,RFLF,RFLX) SHADOW GRAY,TRIM1# |
1 | ||
| 35976-10030B0 |
EP9#,NP90..ATM..(CARAT,RFL,RFLF,RFLX) BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90101-08108 | ||||
| 90119-08441 | ||||
| 90201-04022 | ||||
| 90201-08092 | ||||
| 90209-12010 | ||||
| 90560-04002 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 93319-14006 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94511-00600 | ||||
| 94512-00800 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
