EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4EFE..EP91

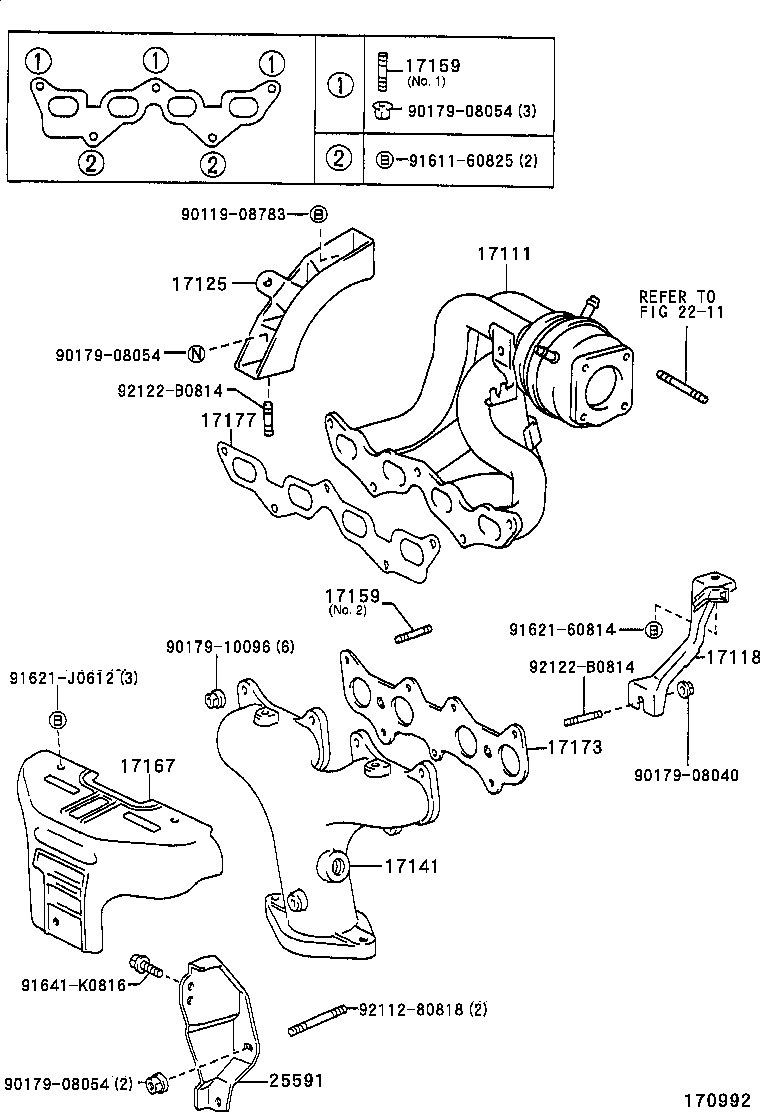

Click highlighted areas on diagram

diagram 17111 17118 17125 17141 17159 17159 17167 17173 17177 2211 25591 9011908783 9017908040 9017908054 9017908054 9017908054 9017910096 9161160825 9162160814 91621J0612 91641K0816 9211280818 92122B0814 92122B0814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-11350

4EFE..EP9#

 1
17101-11370

4EFE..EP9#

 1
17118 - STAY, MANIFOLD
17118-11340

4EFE..EP91

 1
17125 - STAY, SURGE TANK, NO.1
17125-11060

4EF#..EP9#

 1
17141 - MANIFOLD, EXHAUST
17141-11300

4EFE..EP91

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10196

4EF#..EP9#

NO.2

 6
92132-60825

4EF#..EP9#

NO.1

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10196

4EF#..EP9#

NO.2

 6
92132-60825

4EF#..EP9#

NO.1

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11310

4EFE..EP91

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11040

4EF#..EP9#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11070

4EF#..EP9#

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-11080

4EFE..EP91

 1
Common parts
90119-08783
90179-08040
90179-08054
90179-10096
91611-60825
91621-60814
91621-J0612
91641-K0816
92112-80818
92122-B0814
Linked diagrams
2211
