EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

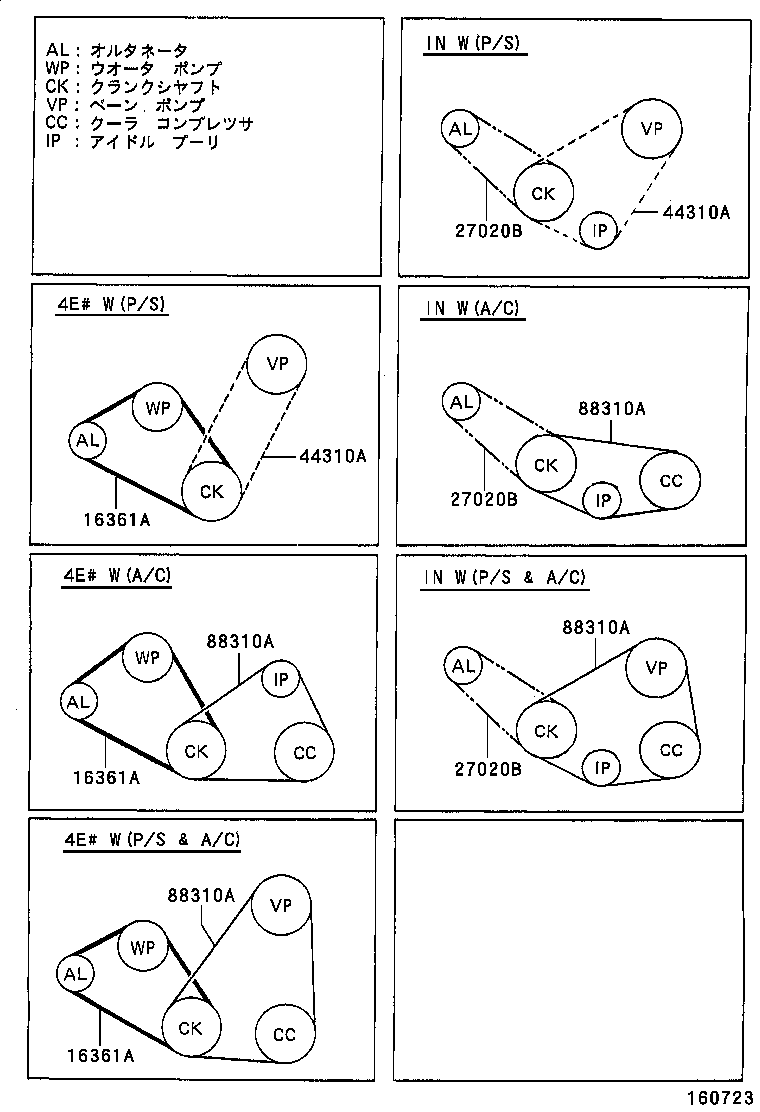

Click highlighted areas on diagram

diagram 16361A 16361A 16361A 27020B 27020B 27020B 44310A 44310A 88310A 88310A 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-20820

4EF#..EP9#

長さ=820

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-20820

4EF#..EP9#

長さ=820

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-20820

4EF#..EP9#

長さ=820

 1
44310A - BELT, V(FOR VANE PUMP)
99364-20920

EP9#..GLZS,RFL,RFLF

長さ=920

 1
44310A - BELT, V(FOR VANE PUMP)
99364-20920

EP9#..GLZS,RFL,RFLF

長さ=920

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-21090

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

長さ=1090

 1
99364-21090

EP91..RFL

長さ=1090,(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) & ﾃﾞ-ﾗｷﾂﾄﾏﾆﾕｱﾙｴｱｺﾝ

 1
99364-80880

EP91..RFL

長さ=880,ﾃﾞ-ﾗｷﾂﾄﾏﾆﾕｱﾙｴｱｺﾝ

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-21090

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

長さ=1090

 1
99364-21090

EP91..RFL

長さ=1090,(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) & ﾃﾞ-ﾗｷﾂﾄﾏﾆﾕｱﾙｴｱｺﾝ

 1
99364-80880

EP91..RFL

長さ=880,ﾃﾞ-ﾗｷﾂﾄﾏﾆﾕｱﾙｴｱｺﾝ

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-21090

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

長さ=1090

 1
99364-21090

EP91..RFL

長さ=1090,(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) & ﾃﾞ-ﾗｷﾂﾄﾏﾆﾕｱﾙｴｱｺﾝ

 1
99364-80880

EP91..RFL

長さ=880,ﾃﾞ-ﾗｷﾂﾄﾏﾆﾕｱﾙｴｱｺﾝ

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-21090

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

長さ=1090

 1
99364-21090

EP91..RFL

長さ=1090,(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) & ﾃﾞ-ﾗｷﾂﾄﾏﾆﾕｱﾙｴｱｺﾝ

 1
99364-80880

EP91..RFL

長さ=880,ﾃﾞ-ﾗｷﾂﾄﾏﾆﾕｱﾙｴｱｺﾝ

 1
