EP91-AHPEK (1996)
Toyota Starlet

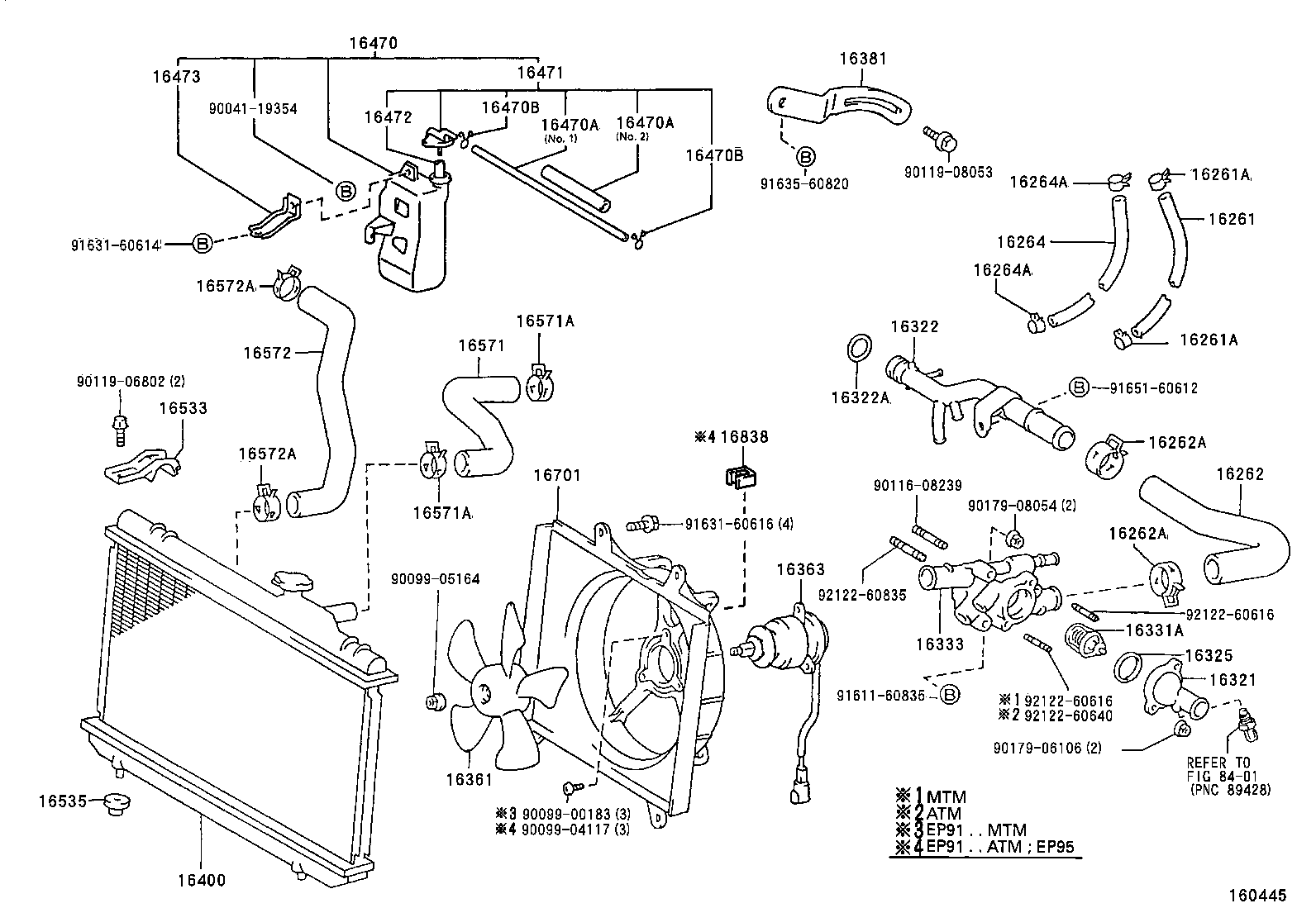

ILLUST NO. 1 OF 2(9601- )4EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99555-00200 |
4EFE..EP9# *H,L=190 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
4EF#..EP9# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
4EF#..EP9# |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-10022 |
4EFTE..EP91;4EFE..EP9#..ATM |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
4EF#..EP9# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
4EF#..EP9# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-11090 |
4EFE..EP9# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
4EF#..EP9# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
4EF#..EP9# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-11030 |
4EFE..EP9#..ATM |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-11162 |
4EF#..EP9# |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35028 |
4EF#..EP9# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
4EF#..EP9# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4EF#..EP9# *WAX 82−95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-11121 |
4EFE..EP9# |
1 | ||
| 16333-11120 |
4EFE..EP9# |
1 | ||
| 16361 - FAN | ||||
| 16361-11020 |
4EFE..EP95;4EFE..EP91..ATM |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11090 |
4EFE..EP95;4EFE..EP91..ATM |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-11030 |
4EFE..EP91..ATM;4EF#..EP9#..(4FC,5F)..(GLZV,REMIX);4EFE..EP95..4FC..(CARAT,RFLF,RFLX) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-11880 |
4EFE..EP91..4FC |
1 | ||
| 16400-11810 |
4EFE..EP91..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-11110 |
4EFE..EP9# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16477-11110 |
4EFE..EP9#..CARAT,GLZS,RFL,RFLF,RFLX 長さ=100,NO.2 |
1 | ||
| 90445-12078 |
4EFE..EP9#..CARAT,GLZS,RFL,RFLF,RFLX *H,L=350,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16477-11110 |
4EFE..EP9#..CARAT,GLZS,RFL,RFLF,RFLX 長さ=100,NO.2 |
1 | ||
| 90445-12078 |
4EFE..EP9#..CARAT,GLZS,RFL,RFLF,RFLX *H,L=350,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4EF#..EP9# |
2 | ||
| 90466-11002 |
4EFE..EP9# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4EF#..EP9# |
2 | ||
| 90466-11002 |
4EFE..EP9# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-11110 |
4EFE..EP9# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
4EFE..EP9# *H,L=240 |
1 | ||
| 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) | ||||
| 16473-11110 |
4EFE..EP9# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-11240 |
4EFE..EP91;4EFE..EP95..5F |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-23008 |
4EFE..EP91;4EFE..EP95..5F |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-11250 |
4EFE..EP9# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
4EF#..EP9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
4EF#..EP9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-11280 |
4EF#..EP9#..ATM |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
4EF#..EP9# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
4EF#..EP9# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-11161 |
4EFE..EP95;4EFE..EP91..ATM |
1 | ||
| 16838 - CLAMP, FAN SHROUD | ||||
| 16838-11010 |
4EFE..EP95;4EFE..EP91..ATM |
1 | ||
| Common parts | ||||
| 90041-19354 | ||||
| 90099-00183 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90116-08239 | ||||
| 90119-06802 | ||||
| 90119-08053 | ||||
| 90179-06106 | ||||
| 90179-08054 | ||||
| 91611-60835 | ||||
| 91631-60614 | ||||
| 91631-60616 | ||||
| 91635-60820 | ||||
| 91651-60612 | ||||
| 92122-60616 | ||||
| 92122-60640 | ||||
| 92122-60835 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9601- )4EF#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-11880 |
4EFE..EP91..4FC |
1 | ||
| 16400-11810 |
4EFE..EP91..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4EF#..EP9# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4EF#..EP9# |
1 | ||
| 16492-21050 |
4EF#..EP9# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
4EF#..EP9# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-11600 |
4EFE..EP91..4FC |
1 | ||
| 16403-11880 |
4EFE..EP91..4FC |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
4EF#..EP9#..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
4EF#..EP9#..ATM |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-11380 |
4EFE..EP95..5F;4EFE..EP91..ATM |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-11380 |
4EFE..EP95..5F;4EFE..EP91..ATM |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-11380 |
4EFE..EP95..5F;4EFE..EP91..ATM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-42240 |
4EFE..EP95;4EFTE..EP91;4EFE..EP91..ATM |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-11310 |
4EFE..EP91..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
4EF#..EP9#..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
4EF#..EP9#..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
4EF#..EP9#..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
4EF#..EP9#..ATM |
2 | ||
