EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4EF#

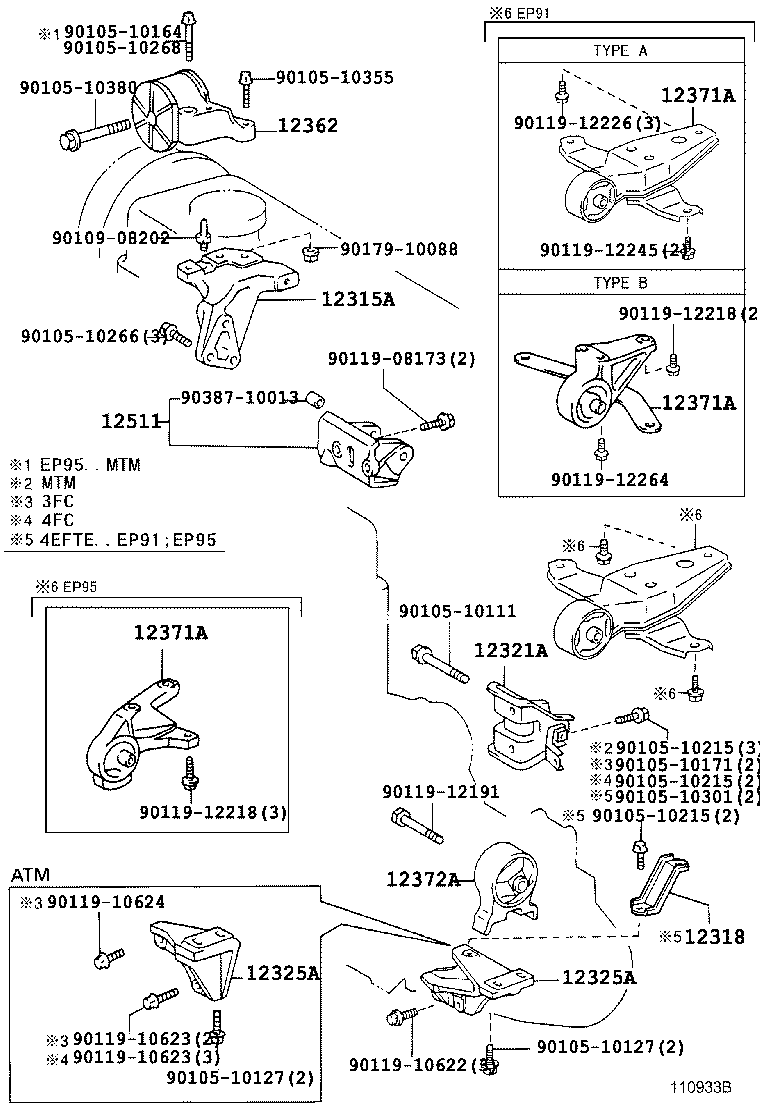

Click highlighted areas on diagram

diagram 12315A 12318 12321A 12325A 12325A 12362 12371A 12371A 12371A 12372A 12511 9010510111 9010510127 9010510127 9010510164 9010510171 9010510215 9010510215 9010510215 9010510266 9010510268 9010510301 9010510355 9010510380 9010908202 9011908173 9011910622 9011910623 9011910623 9011910624 9011912191 9011912218 9011912218 9011912226 9011912245 9011912264 9017910088 9038710013
Part # Description Qty Price
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-11040

4EF#..EP9#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-11100

4EF#..EP91..ATM

 1
12321-11101

4EF#..EP91..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11030

4EF#..EP91..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11030

4EF#..EP91..4FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-11300

4EFE..EP91

 1
12362-11260

4EF#..EP91;4EFE..EP95..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-11580

4EFE..EP91..4FC

TYPE A:ｲﾗｽﾄ参照

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-11580

4EFE..EP91..4FC

TYPE A:ｲﾗｽﾄ参照

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-11580

4EFE..EP91..4FC

TYPE A:ｲﾗｽﾄ参照

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-11160

4EFE..EP91..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-11020

4EF#..EP9#

 1
Common parts
90105-10111
90105-10127
90105-10164
90105-10171
90105-10215
90105-10266
90105-10268
90105-10301
90105-10355
90105-10380
90109-08202
90119-08173
90119-10622
90119-10623
90119-10624
90119-12191
90119-12218
90119-12226
90119-12245
90119-12264
90179-10088
90387-10013
