EP91-AHPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4EF#

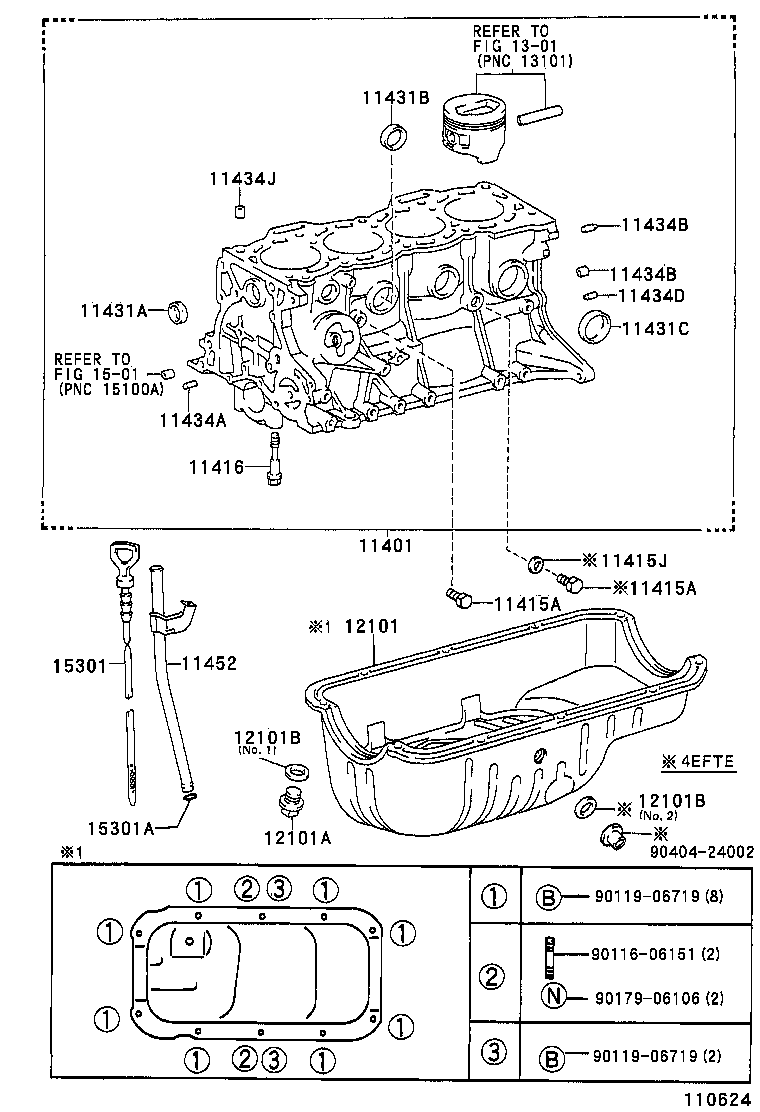

Click highlighted areas on diagram

diagram 11401 11415A 11415A 11415J 11416 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 12101B 1301 1501 15301 15301A 9011606151 9011906719 9011906719 9017906106 9040424002
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80003

4EFE..EP9#

 1
11401-19569

4EFE..EP9#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52001

4EFE..EP9#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52001

4EFE..EP9#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

4EF#..EP9#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

4EF#..EP9#

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

4EF#..EP9#

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

4EF#..EP9#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

4EF#..EP9#

長さ=11,外径=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90253-15003

4EF#..EP9#

長さ=17,外径=15

 1
90250-10017

4EF#..EP9#

長さ=20,外径=10

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90253-15003

4EF#..EP9#

長さ=17,外径=15

 1
90250-10017

4EF#..EP9#

長さ=20,外径=10

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

4EF#..EP9#

長さ=11,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

4EF#..EP9#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-11041

4EF#..EP9#

 1
12101 - PAN SUB-ASSY, OIL
12101-11060

4EFE..EP91

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

4EF#..EP9#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

4EFE..EP9#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

4EFE..EP9#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-11050

4EF#..EP9#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96721-19010

4EF#..EP9#

 1
Common parts
90116-06151
90119-06719
90179-06106
90404-24002
Linked diagrams
1301
1501
