EP91-AHMEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4EFE..EP91

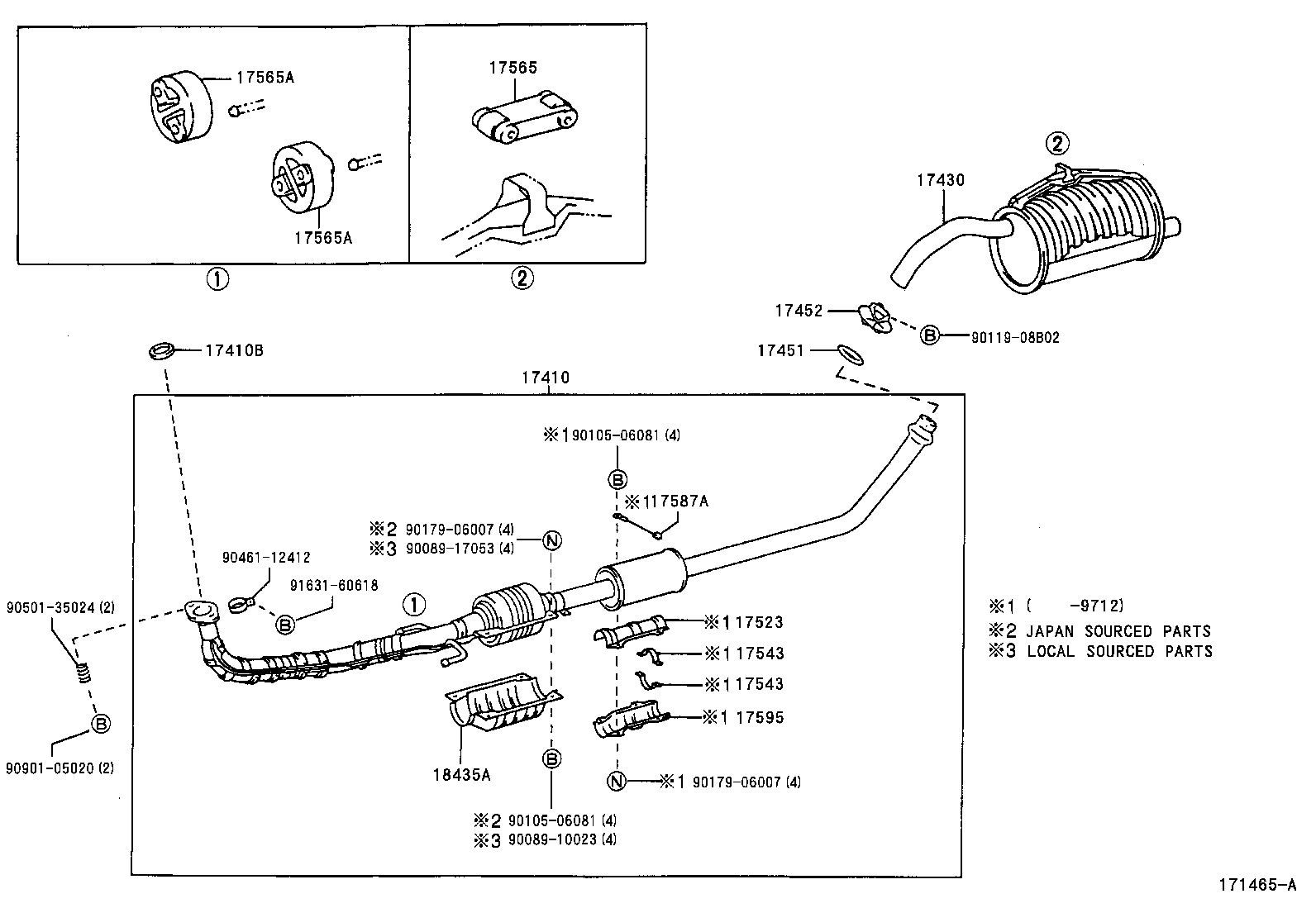

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17452 17523 17543 17543 17565 17565A 17565A 17587A 17595 18435A 9008910023 9008917053 9010506081 9010506081 9011908B02 9017906007 9017906007 9046112412 9050135024 9090105020 9163160618
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1B180

4EFE..EP91

 1
17410-1B010

4EFE..EP91

 1
17410-1B220

4EFE..EP91

 1
17410B - GASKET, EXHAUST PIPE
90917-06080

4EFE,1N..EP91,NP90

 1
17451-11010

4EFE,1N..EP91,NP90

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11890

4EFE..EP91..RFL,RFLF,RFLX

 1
17430-11891

4EFE,1N..EP91,NP90..RFL,RFLF,RFLX

 1
17430-1B060

4EFE,1N..EP91,NP90..REMIX,RFL,RFLF,RFLX

 1
17451 - GASKET, EXHAUST PIPE
90917-06081

4EFE,1N..EP91,NP90

 1
17452 - CLAMP, EXHAUST PIPE
90461-16066

4EFE,1N..EP91,NP90

 1
17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3
17523-11060

4EFE..EP91

 1
17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3
17543-63010

4EFE..EP91

 2
17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3
17543-63010

4EFE..EP91

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17566-11150

4EFE,1N..EP91,NP90

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

4EF#,1N..EP91,NP90

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

4EF#,1N..EP91,NP90

 2
17587A - CLAMP EXHAUST PIPE HANGER
17587-11010

4EFE..EP91

 1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17595-11250

4EFE..EP91

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-11020

4EFE..EP91

 1
18435-02040

4EFE..EP91

(L)

 1
18435-11020

4EFE..EP91

(J)

 1
Common parts
90089-10023
90089-17053
90105-06081
90119-08B02
90179-06007
90461-12412
90501-35024
90901-05020
91631-60618
