EP91-AHKNK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )5D

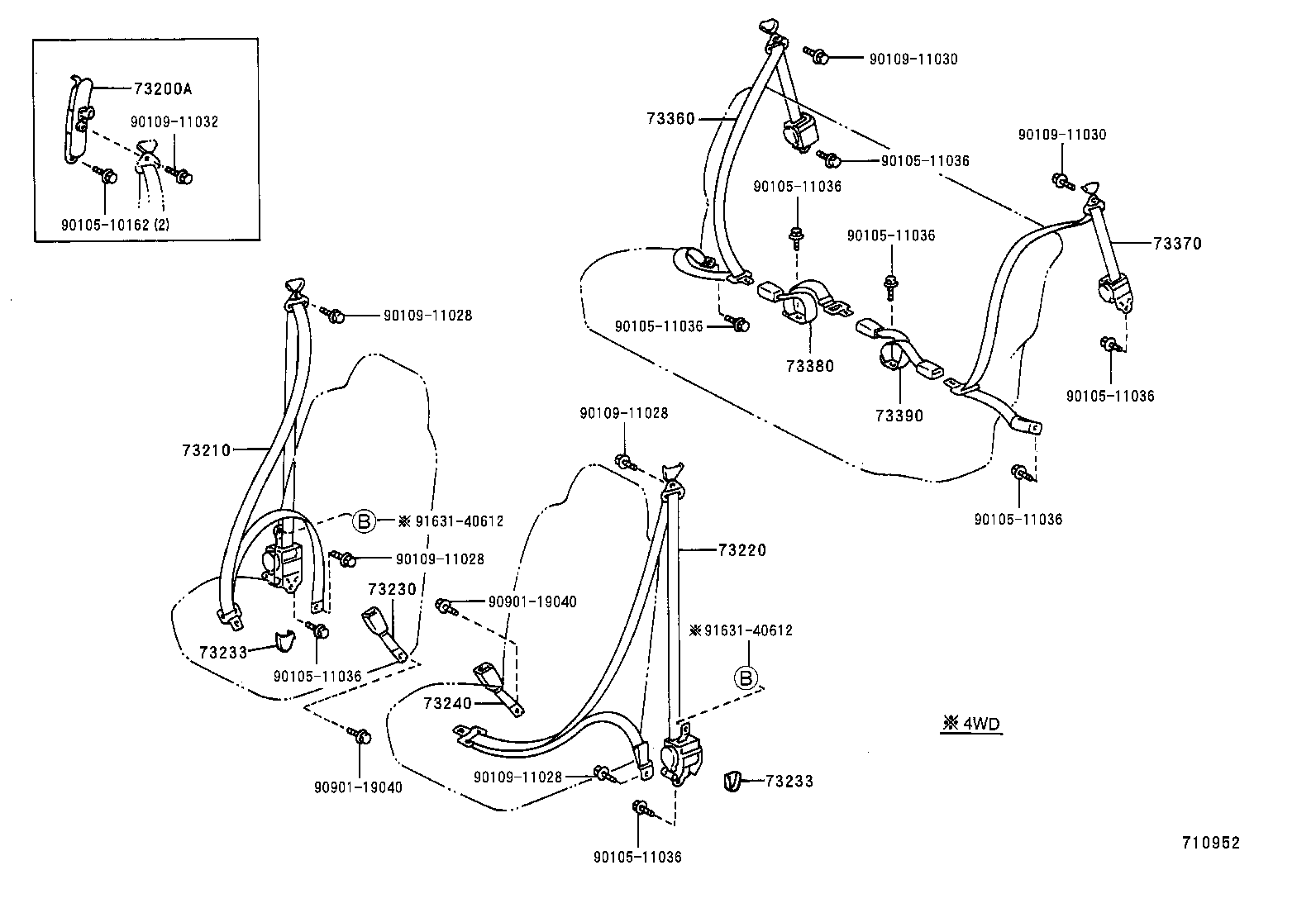

Click highlighted areas on diagram

diagram 73200A 73210 73220 73230 73233 73233 73240 73360 73370 73380 73390 9010510162 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911028 9010911028 9010911028 9010911028 9010911030 9010911030 9010911032 9090119040 9090119040 9163140612 9163140612
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-10690B1

EP91,NP90..5D..RFL

ﾅｼ(*80),BLUISH GRAY,TRIM1#

 1
73210-10750B1

EP9#,NP90..5D

BLUISH GRAY,TRIM1#

 1
73210-10700B1

EP91,NP90..5D

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-10530B1

EP91,NP90..5D

BLUISH GRAY,TRIM1#

 1
73220-10600B1

EP9#,NP90..5D

ｱﾘ(*80,ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220-10610B1

EP91,NP90..5D

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73240-16220B1

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
73240-16220B0

EP9#,NP90

SHADOW GRAY,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B3

EP9#,NP90..5D

SHADOW GRAY,TRIM1#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B3

EP9#,NP90..5D

SHADOW GRAY,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-16220B1

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
73240-16220B0

EP9#,NP90

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-10260B1

EP91,NP90..RFL

BLUISH GRAY,TRIM1#

 1
73360-10280B0

EP9#..CARAT,GLZS,GLZV,RFLF,RFLX

BLUISH GRAY,TRIM1#

 1
73360-10260B2

EP91,NP90..RFL

BLUISH GRAY,TRIM1#

 1
73360-10280B1

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-10210B1

EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX

BLUISH GRAY,TRIM1#

 1
73370-10190B2

EP91,NP90..RFL

BLUISH GRAY,TRIM1#

 1
73370-10210B0

EP9#..CARAT,GLZS,GLZV,RFLF,RFLX

BLUISH GRAY,TRIM1#

 1
73370-10190B1

EP91,NP90..RFL

BLUISH GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-10050B0

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
73470-10050B1

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-10090B1

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
73480-10090B0

EP9#,NP90

BLUISH GRAY,TRIM1#

 1
Common parts
90105-10162
90105-11036
90109-11028
90109-11030
90109-11032
90901-19040
91631-40612
