EP91-AHKDK (1996)
Toyota Starlet

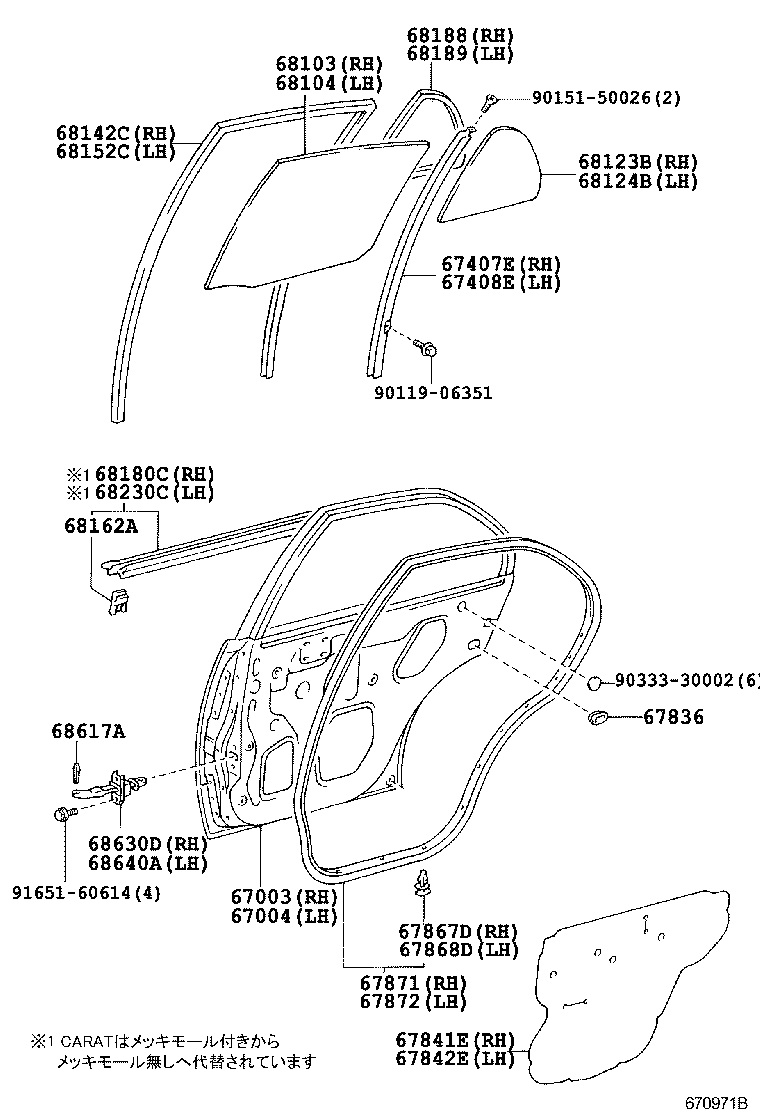

ILLUST NO. 1 OF 2(9601- )5D
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-10150 |
EP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-10160 |
EP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX) |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-10070 |
EP9#,NP90..5D |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-10070 |
EP9#,NP90..5D |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-20060 |
EP9#,NP90..5D |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-10050 |
EP9#,NP90..5D |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-10050 |
EP9#,NP90..5D |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
EP9#,NP90..5D |
16 | ||
| 67867-12150 |
EP9#,NP90..5D |
15 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
EP9#,NP90..5D |
17 | ||
| 67867-12150 |
EP9#,NP90..5D |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-10090 |
EP9#,NP90..5D |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-10090 |
EP9#,NP90..5D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-10160 |
EP9#,NP90..5D *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68113-10160 |
EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-10160 |
EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68114-10160 |
EP9#,NP90..5D *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-10180 |
EP9#,NP90..5D *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123-10180 |
EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-10180 |
EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124-10180 |
EP9#,NP90..5D *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-10070 |
EP9#,NP90..5D |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-10030 |
EP9#,NP90..5D |
1 | ||
| 68162A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-10110 |
EP9#,NP90..5D 右側 |
5 | ||
| 68212-10030 |
EP9#,NP90..5D 左側 |
5 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-10090 |
EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX) |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-10050 |
EP9#,NP90..5D |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-10050 |
EP9#,NP90..5D |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-10050 |
EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX) |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-12030 |
EP9#,NP90..5D |
2 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-10050 |
EP9#,NP90..5D |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-10050 |
EP9#,NP90..5D |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90151-50026 | ||||
| 90333-30002 | ||||
| 91651-60614 | ||||

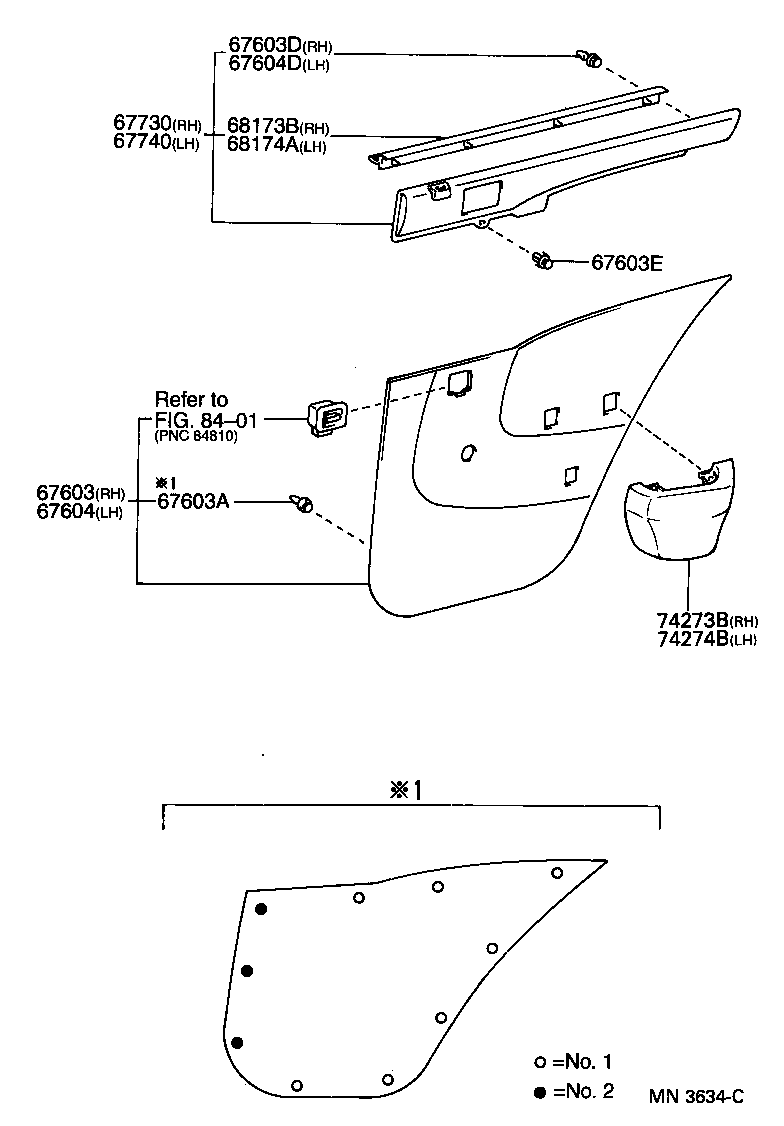

ILLUST NO. 2 OF 2(9601- )5D
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1C330B0 |
EP91,NP90..5D..RFL LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-89111 |
EP9#,NP90..5D NO.2 |
6 | ||
| 67771-16080 |
EP9#,NP90..5D NO.1 |
14 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-30070 |
EP9#,NP90..5D |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07152B1 |
EP9#,NP90..5D BLUISH GRAY,TRIM1# |
2 | ||
| 90467-07152B1 |
EP9#,NP90..5D BLUISH GRAY,TRIM1# |
3 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1C330B0 |
EP91,NP90..5D..RFL LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-30070 |
EP9#,NP90..5D |
1 | ||
| 67730 - PANEL ASSY, REAR DOOR TRIM, UPPER RH | ||||
| 67730-10020B0 |
EP9#,NP90..5D BLUISH GRAY,TRIM1# |
1 | ||
| 67740 - PANEL ASSY, REAR DOOR TRIM, UPPER LH | ||||
| 67740-10020B0 |
EP9#,NP90..5D BLUISH GRAY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-10060 |
EP9#,NP90..5D |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-10050 |
EP9#,NP90..5D |
1 | ||
| 74273B - PANEL, REAR DOOR ARMREST BASE, LOWER RH | ||||
| 74273-10010B0 |
EP9#,NP90..5D..(RFL,RFLF,RFLX) LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74274B - PANEL, REAR DOOR ARMREST BASE, LOWER LH | ||||
| 74274-10010B0 |
EP9#,NP90..5D..(RFL,RFLF,RFLX) LT.BLUISH GRAY,TRIM1# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
