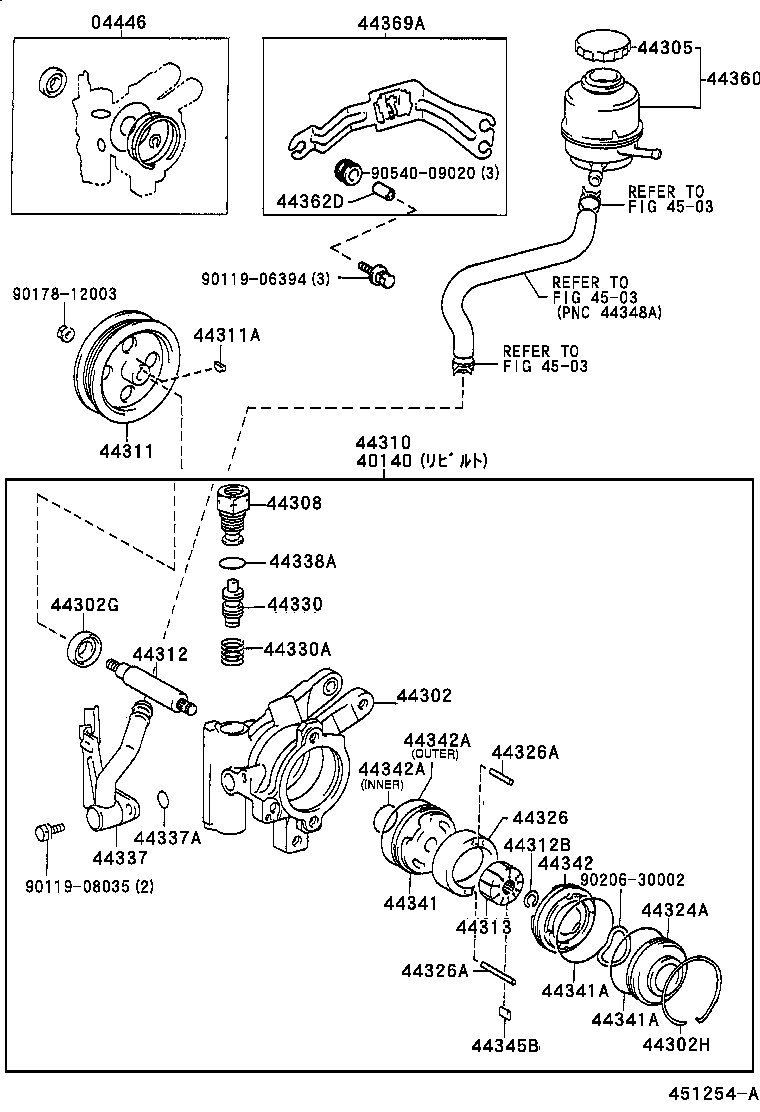

EP91-AHKDK (1996)
Toyota Starlet
(9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS,RFL,RFLF,RFLX ; (9712- )3D..CARA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-10021 |
EP9# |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-10101 |
EP91..CARAT,GLZS,RFL,RFLF,RFLX TOYODA KOKI |
1 | ||
| 40140-10111 |
EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12120 |
EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
EP9#,NP90 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-62002 |
EP9#,NP90 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22030 |
EP9#,NP90 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-18011 |
EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-10111 |
EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 44320-10101 |
EP91..CARAT,GLZS,RFL,RFLF,RFLX |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-10030 |
EP9# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
EP9#,NP90 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
EP9#,NP90 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
EP9#,NP90 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22050 |
EP9#,NP90 ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
EP9#,NP90 ﾏｰｸ無し |
1 | ||
| 44313-22070 |
EP9#,NP90 ﾏｰｸ 3 |
1 | ||
| 44313-22080 |
EP9#,NP90 ﾏｰｸ 4 |
1 | ||
| 44313-22060 |
EP9#,NP90 ﾏｰｸ 2 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
EP9#,NP90 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12120 |
EP9#,NP90 ﾏｰｸ 1 |
1 | ||
| 44325-12130 |
EP9#,NP90 ﾏｰｸ 2 |
1 | ||
| 44325-12110 |
EP9#,NP90 ﾏｰｸ無し |
1 | ||
| 44325-12150 |
EP9#,NP90 ﾏｰｸ 4 |
1 | ||
| 44325-12140 |
EP9#,NP90 ﾏｰｸ 3 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
EP9#,NP90 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
EP9#,NP90 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
EP9#,NP90 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
EP9#,NP90 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12071 |
EP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX ﾏｰｸ A |
1 | ||
| 44330-12101 |
EP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX ﾏｰｸ D |
1 | ||
| 44330-12121 |
EP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX ﾏｰｸ F |
1 | ||
| 44330-12081 |
EP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX ﾏｰｸ B |
1 | ||
| 44330-12091 |
EP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX ﾏｰｸ C |
1 | ||
| 44330-12111 |
EP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX ﾏｰｸ E |
1 | ||
| 44330-16081 |
EP9# ﾏｰｸ B |
1 | ||
| 44330-16101 |
EP9# ﾏｰｸ D |
1 | ||
| 44330-16071 |
EP9# ﾏｰｸ A |
1 | ||
| 44330-16091 |
EP9# ﾏｰｸ C |
1 | ||
| 44330-16121 |
EP9# ﾏｰｸ F |
1 | ||
| 44330-16111 |
EP9# ﾏｰｸ E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
EP9#,NP90 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-10060 |
EP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
EP9#,NP90 |
1 | ||
| 90301-12003 |
EP9#,NP90 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
EP9#,NP90 内径=19.2,外径=22.3 |
1 | ||
| 90301-19003 |
EP9#,NP90 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
EP9#,NP90 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
EP9#,NP90 |
2 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
EP9#,NP90 |
2 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
EP9#,NP90 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-25001 |
EP9#,NP90 内側 |
1 | ||
| 90301-53006 |
EP9#,NP90 外側 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-25001 |
EP9#,NP90 内側 |
1 | ||
| 90301-53006 |
EP9#,NP90 外側 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12050 |
EP9#,NP90 長さ=14.989 |
10 | ||
| 44345-12010 |
EP9#,NP90 長さ=14.997 |
10 | ||
| 44345-12020 |
EP9#,NP90 長さ=14.995 |
10 | ||
| 44345-12030 |
EP9#,NP90 長さ=14.993 |
10 | ||
| 44345-12040 |
EP9#,NP90 長さ=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-10040 |
EP9#,NP90 |
1 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
EP9#,NP90 |
3 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-16010 |
EP9#,NP90 |
1 | ||
| Common parts | ||||
| 90119-06394 | ||||
| 90119-08035 | ||||
| 90178-12003 | ||||
| 90206-30002 | ||||
| 90540-09020 | ||||
| Linked diagrams | ||||
| 4503 | ||||
