EP91-AHKDK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9601- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9046816142 9165160816 9411051000 9413060800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16090

EP9#,NP90..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14035

EP9#,NP90..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

EP9#,NP90..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

EP9#,NP90..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

EP9#,NP90..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

EP9#,NP90..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

EP9#,NP90..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

EP9#,NP90..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

EP9#,NP90..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243

EP9#,NP90..MTM

長さ=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

EP9#,NP90..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-16070

EP9#,NP90..MTM

 1
Common parts
90468-16142
91651-60816
94110-51000
94130-60800
94512-01000

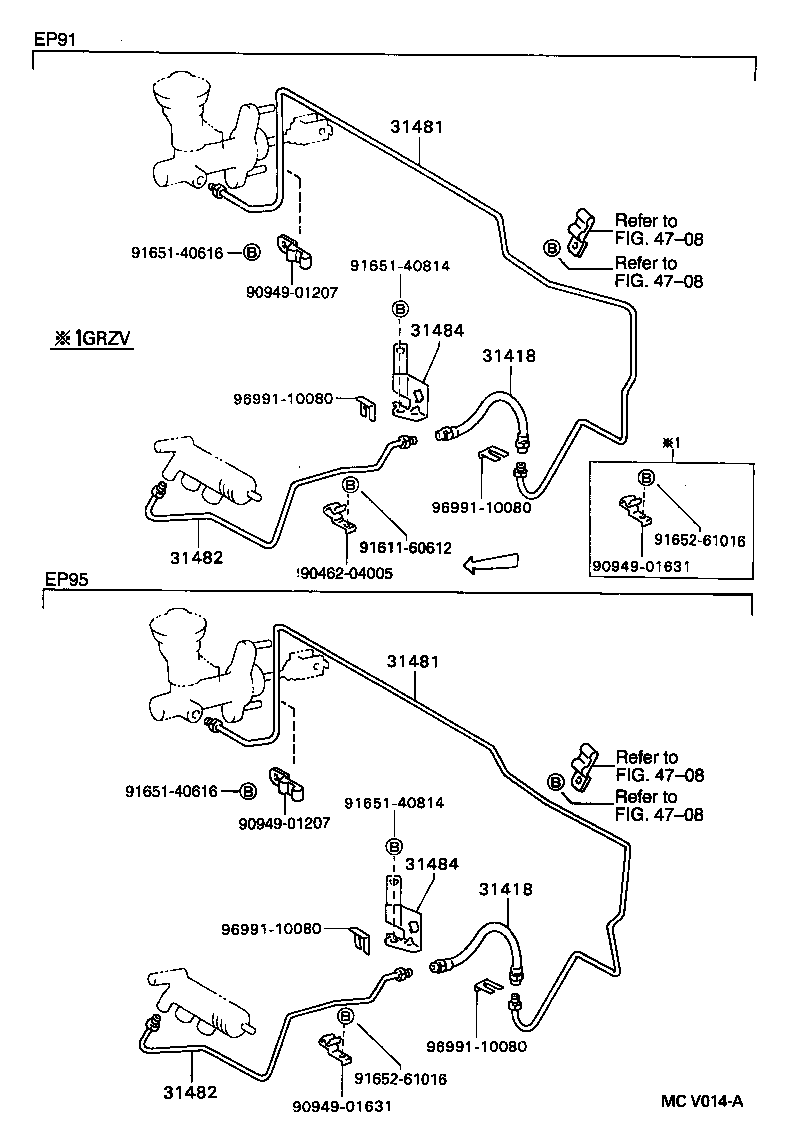

ILLUST NO. 2 OF 2(9601- )EP9#..MTM

Click highlighted areas on diagram

diagram 31418 31418 31481 31481 31482 31482 31484 31484 4708 4708 4708 4708 9046204005 9094901207 9094901207 9094901631 9094901631 9161160612 9165140616 9165140616 9165140814 9165140814 9165261016 9165261016 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01073

EP9#,NP90..MTM

 1
31418 - HOSE, CLUTCH
90931-01073

EP9#,NP90..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-16050

EP91,NP90..MTM..RFL

ｱﾘ(ABS)

 1
31481-16060

EP91,NP90..MTM..RFL

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-16050

EP91,NP90..MTM..RFL

ｱﾘ(ABS)

 1
31481-16060

EP91,NP90..MTM..RFL

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10020

EP91..MTM..(CARAT,GLZS,REMIX,RFL,RFLF,RFLX)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10020

EP91..MTM..(CARAT,GLZS,REMIX,RFL,RFLF,RFLX)

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-10040

EP9#,NP90..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-10040

EP9#,NP90..MTM

 1
Common parts
90462-04005
90949-01207
90949-01631
91611-60612
91651-40616
91651-40814
91652-61016
96991-10080
Linked diagrams
4708
