EP91-AGPVK (1996)
Toyota Starlet

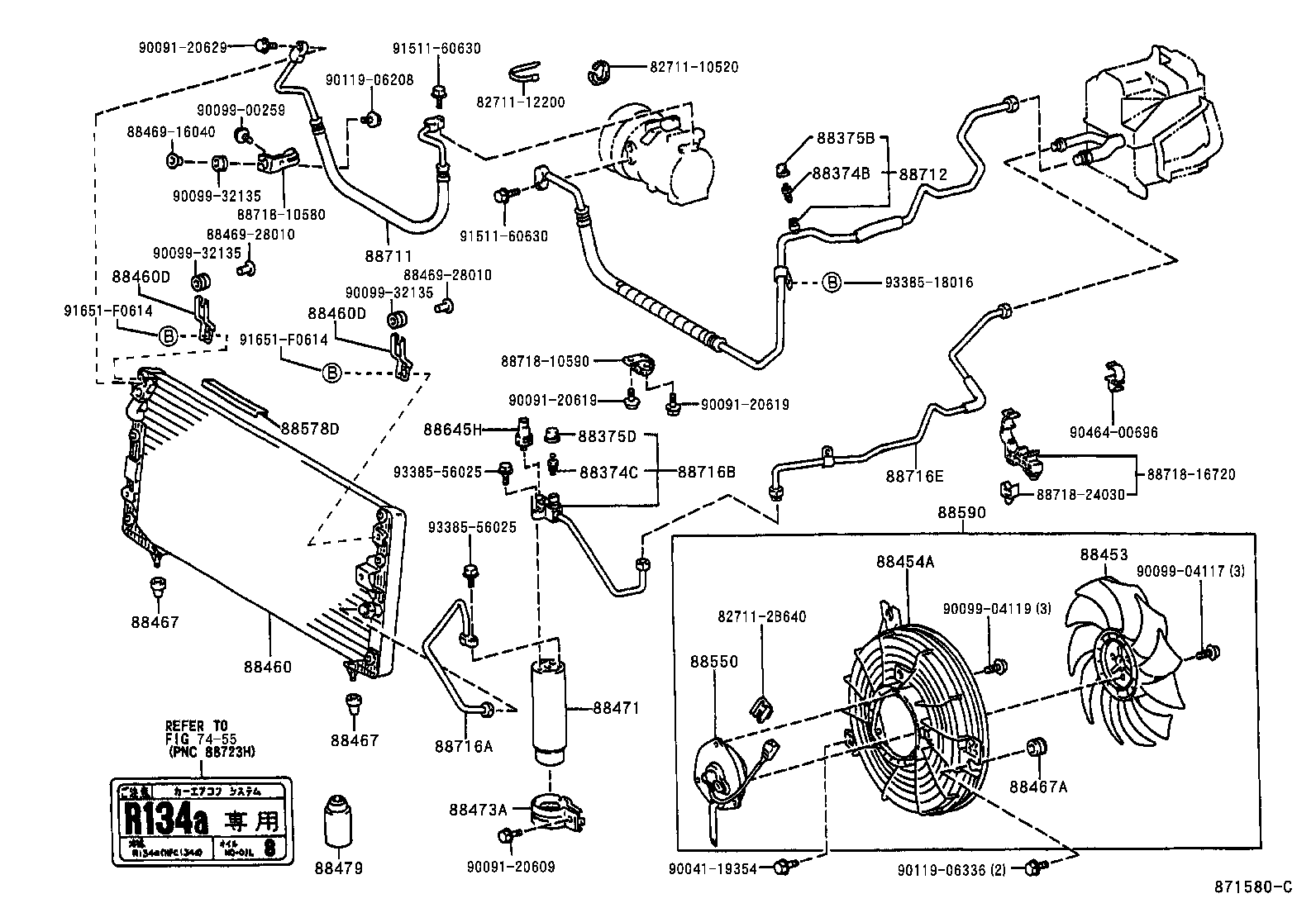

ILLUST NO. 1 OF 2(9601- )
ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EP9#,NP90 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
EP9#,NP90 |
1 | ||
| 88374-30010 |
EP9# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EP9#,NP90 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
EP9#,NP90 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10022 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88453-10022 |
EP9#..GLZS,RFLF ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-10100 |
EP9#,NP90 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10240 |
EP9# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-10420 |
EP91..GLZS ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88688-10500 |
EP9#..GLZS,RFLF ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88688-10420 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88688-10450 |
EP9#..GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88688-10450 |
EP9#..GLZS,RFLF ﾃﾞｲ-ﾗ-ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88688-10500 |
EP91..GLZS ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-10420 |
EP91..GLZS ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88688-10500 |
EP9#..GLZS,RFLF ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88688-10420 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88688-10450 |
EP9#..GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88688-10450 |
EP9#..GLZS,RFLF ﾃﾞｲ-ﾗ-ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88688-10500 |
EP91..GLZS ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-24050 |
EP9#..3D..(GLZS,GLZV,RFLF,RFLX);EP9#..5D..(CARAT,REMIX,RFLF,RFLX) NO.1 |
2 | ||
| 88467-24050 |
EP9#..3D..CARAT;EP9#..GLZS,RFL,RFLF |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-24050 |
EP9#..3D..(GLZS,GLZV,RFLF,RFLX);EP9#..5D..(CARAT,REMIX,RFLF,RFLX) NO.1 |
2 | ||
| 88467-24050 |
EP9#..3D..CARAT;EP9#..GLZS,RFL,RFLF |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10040 |
EP9#,NP90 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
EP9#,NP90 |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-20070 |
EP9#,NP90 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
EP9#,NP90..GLZS,RFL,RFLF 200G |
2 | ||
| 90986-02007 |
EP9#,NP90..GLZS,RFL,RFLF 250G |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12150 |
EP9#,NP90 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-10140 |
EP9#,NP90 |
1 | ||
| 88578-10140 |
EP9#,NP90..GLZS,RFL,RFLF |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-10040 |
EP9#,NP90 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
EP9#,NP90 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-10260 |
EP9# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-10430 |
EP9# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-10860 |
EP9# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-10880 |
EP9#..GLZS,RFL,RFLF |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1C010 |
EP9#..GLZS,RFLF ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88716-10890 |
EP9#..GLZS,RFLF ﾃﾞｲ-ﾗ-ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 82711-10520 | ||||
| 82711-12200 | ||||
| 82711-2B640 | ||||
| 88469-16040 | ||||
| 88469-28010 | ||||
| 88718-10580 | ||||
| 88718-10590 | ||||
| 88718-16720 | ||||
| 88718-24030 | ||||
| 90041-19354 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20629 | ||||
| 90099-00259 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-32135 | ||||
| 90119-06208 | ||||
| 90119-06336 | ||||
| 90464-00696 | ||||
| 91511-60630 | ||||
| 91651-F0614 | ||||
| 93385-18016 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 7455 | ||||

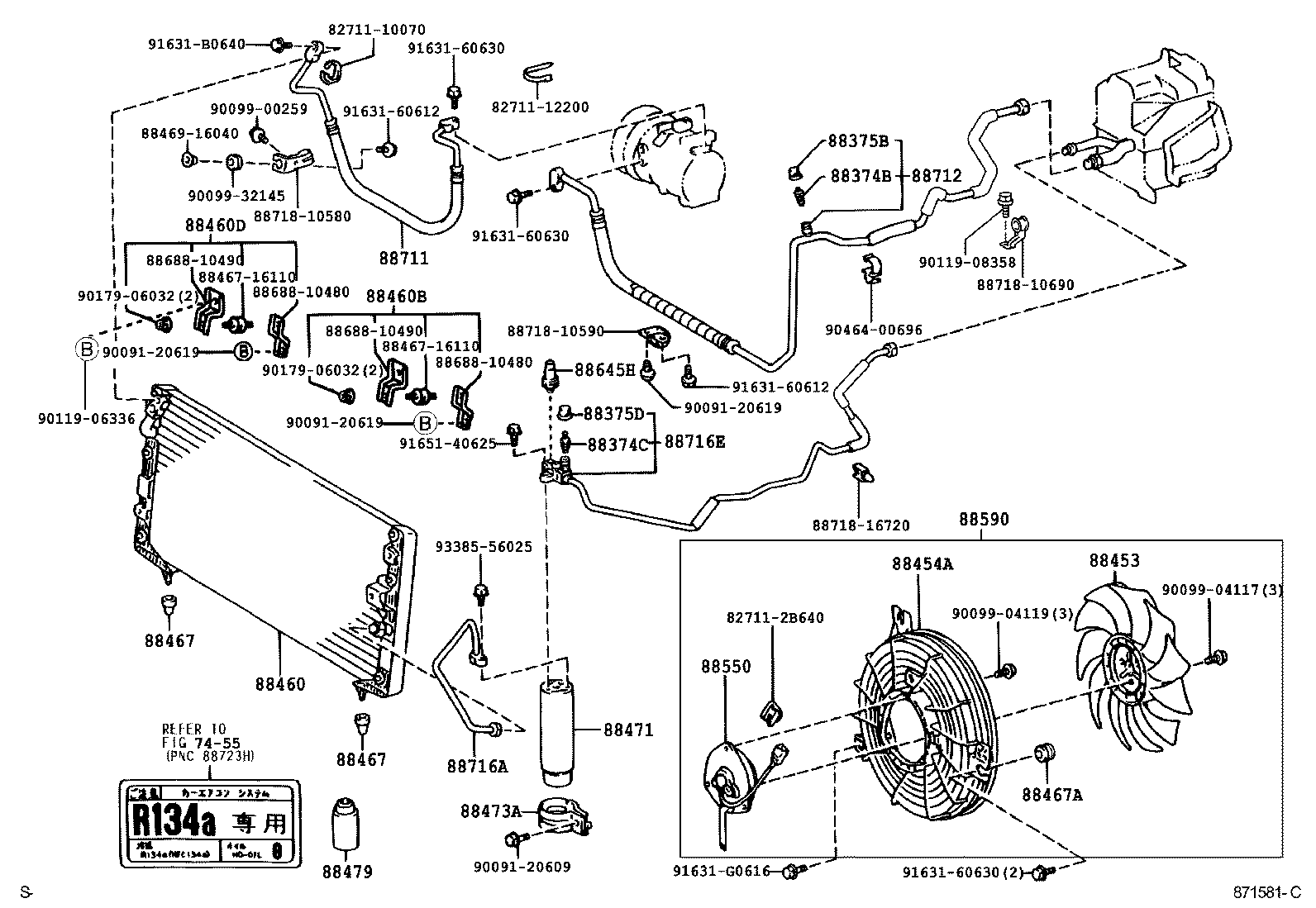

ILLUST NO. 1 OF 2(9601- )
ﾒ-ｶ-ｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EP9#,NP90 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
EP9#,NP90 |
1 | ||
| 88374-30010 |
EP9# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EP9#,NP90 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
EP9#,NP90 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10022 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88453-10022 |
EP9#..GLZS,RFLF ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-10100 |
EP9#,NP90 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10240 |
EP9# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-10420 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88688-10500 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88688-10420 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88688-10450 |
EP9#..GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88688-10500 |
EP9#..GLZS,RFLF ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88688-10450 |
EP9#..GLZS,RFLF ﾃﾞｲ-ﾗ-ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-10420 |
EP91..GLZS ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88688-10500 |
EP9#..GLZS,RFLF ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88688-10420 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88688-10450 |
EP9#..GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88688-10450 |
EP9#..GLZS,RFLF ﾃﾞｲ-ﾗ-ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88688-10500 |
EP91..GLZS ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-24050 |
EP9#..3D..(GLZS,GLZV,RFLF,RFLX);EP9#..5D..(CARAT,REMIX,RFLF,RFLX) NO.1 |
2 | ||
| 88467-24050 |
EP9#..3D..CARAT;EP9#..GLZS,RFL,RFLF |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-24050 |
EP9#..3D..(GLZS,GLZV,RFLF,RFLX);EP9#..5D..(CARAT,REMIX,RFLF,RFLX) NO.1 |
2 | ||
| 88467-24050 |
EP9#..3D..CARAT;EP9#..GLZS,RFL,RFLF |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10040 |
EP9#,NP90 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
EP9#,NP90 |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-20070 |
EP9#,NP90 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
EP9#,NP90..GLZS,RFL,RFLF 200G |
2 | ||
| 90986-02007 |
EP9#,NP90..GLZS,RFL,RFLF 250G |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12150 |
EP9#,NP90 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-10040 |
EP9#,NP90 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
EP9#,NP90 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-10260 |
EP9# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-10430 |
EP9# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-10860 |
EP9# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1C010 |
EP9#..GLZS,RFLF ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88716-10890 |
EP9#..GLZS,RFLF ﾃﾞｲ-ﾗ-ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 82711-12200 | ||||
| 82711-2B640 | ||||
| 88467-16110 | ||||
| 88469-16040 | ||||
| 88688-10480 | ||||
| 88688-10490 | ||||
| 88718-10580 | ||||
| 88718-10590 | ||||
| 88718-10690 | ||||
| 88718-16720 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00259 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-32145 | ||||
| 90119-06336 | ||||
| 90119-08358 | ||||
| 90179-06032 | ||||
| 90464-00696 | ||||
| 91631-60612 | ||||
| 91631-60630 | ||||
| 91631-B0640 | ||||
| 91631-G0616 | ||||
| 91651-40625 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 7455 | ||||
ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||
