EP91-AGPQY (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )GLZV

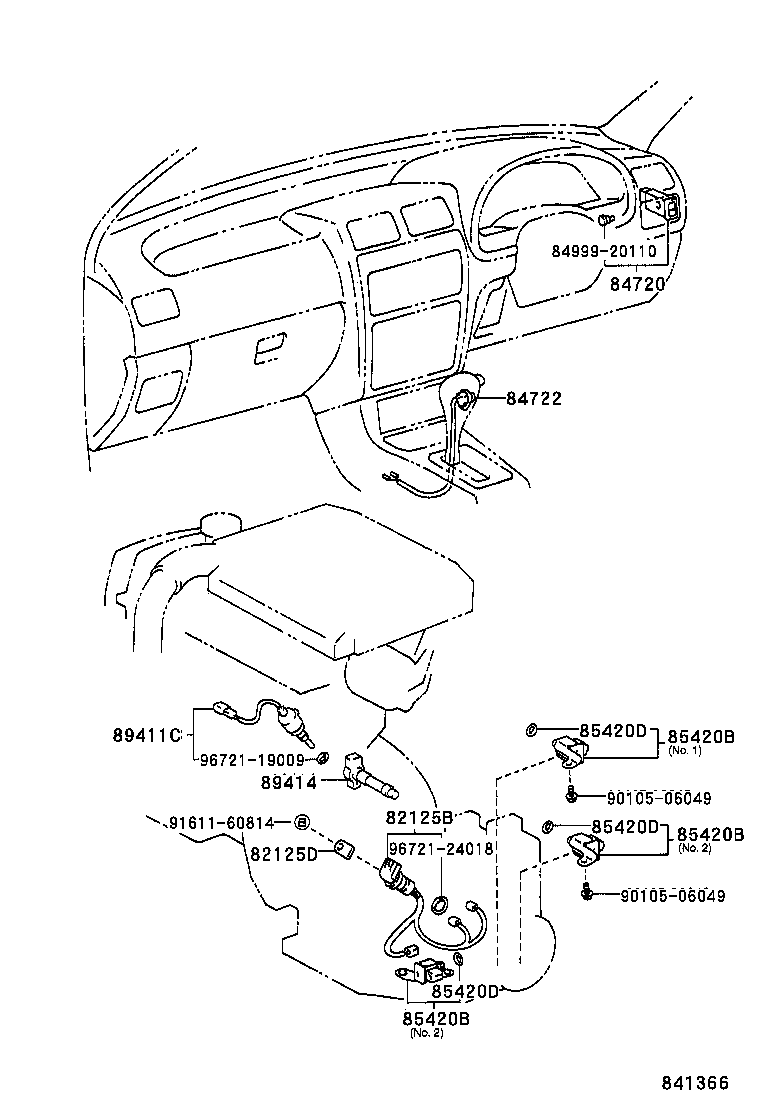

Click highlighted areas on diagram

diagram 82125B 82125D 84720 84722 8499920110 85420B 85420B 85420B 85420D 85420D 85420D 89411C 89414 9010506049 9010506049 9161160814 9672119009 9672124018
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-20220

EP91..4FC..GLZV

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

EP9#,NP90..4FC

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-20170

EP91..4FC..GLZV

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-10030C0

EP9#..4FC..(GLZS,GLZV,REMIX)

BLACK,TRIM1#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-30200

EP91..4FC..GLZV

NO.2

 2
85420-21070

EP91..4FC..GLZV

NO.1,DENSO

 1
85420-21080

EP91..4FC..GLZV

NO.1,AISIN

 1
85420-21090

EP91..4FC..GLZV

NO.2,DENSO

 2
85420-21100

EP91..4FC..GLZV

NO.2,AISIN

 2
85420-20140

EP91..4FC..GLZV

NO.1

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-30200

EP91..4FC..GLZV

NO.2

 2
85420-21070

EP91..4FC..GLZV

NO.1,DENSO

 1
85420-21080

EP91..4FC..GLZV

NO.1,AISIN

 1
85420-21090

EP91..4FC..GLZV

NO.2,DENSO

 2
85420-21100

EP91..4FC..GLZV

NO.2,AISIN

 2
85420-20140

EP91..4FC..GLZV

NO.1

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-30200

EP91..4FC..GLZV

NO.2

 2
85420-21070

EP91..4FC..GLZV

NO.1,DENSO

 1
85420-21080

EP91..4FC..GLZV

NO.1,AISIN

 1
85420-21090

EP91..4FC..GLZV

NO.2,DENSO

 2
85420-21100

EP91..4FC..GLZV

NO.2,AISIN

 2
85420-20140

EP91..4FC..GLZV

NO.1

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

EP91..4FC..GLZV

 6
90301-06004

EP91..4FC..GLZV

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

EP91..4FC..GLZV

 6
90301-06004

EP91..4FC..GLZV

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

EP91..4FC..GLZV

 6
90301-06004

EP91..4FC..GLZV

 3
89411C - SENSOR, SPEED
89411-20040

EP91..4FC..GLZV

 1
89414 - ROTOR, SENSOR
89414-12010

EP91..4FC..GLZV

 1
Common parts
84999-20110
90105-06049
91611-60814
96721-19009
96721-24018
