EP91-AGPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

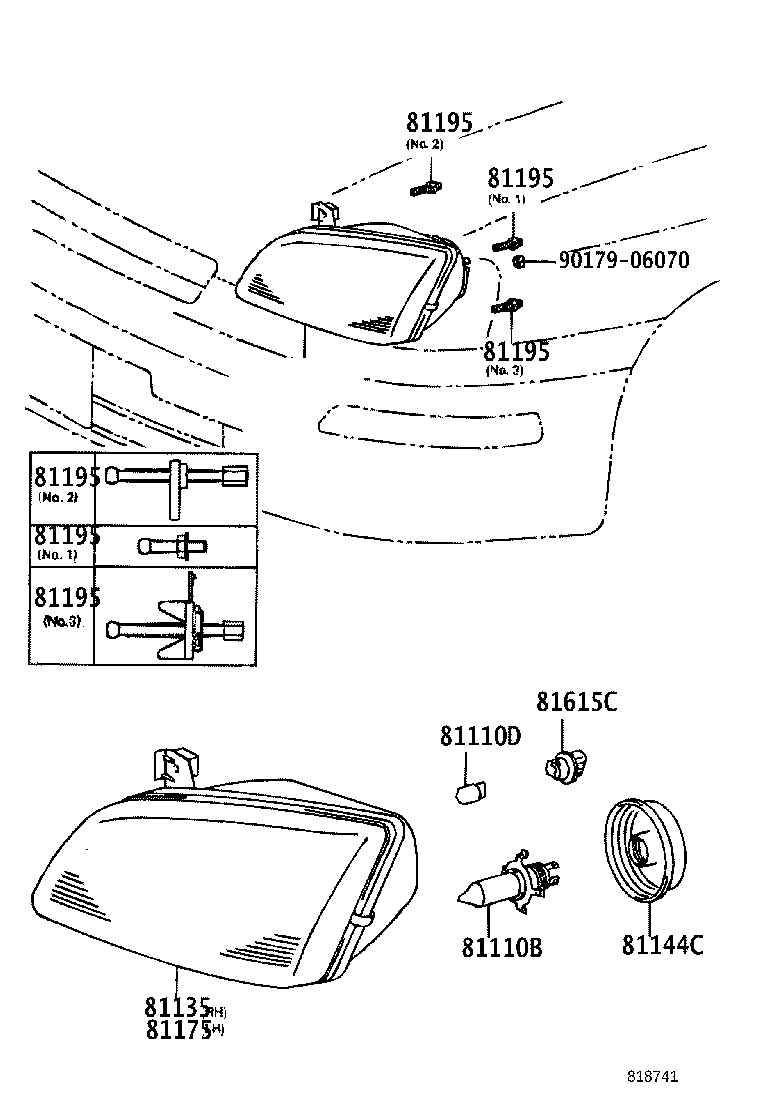

Click highlighted areas on diagram

diagram 81110B 81110D 81135 81144C 81175 81195 81195 81195 81195 81195 81195 81615C 9017906070
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22004

EP9#,NP90

12V 60/55W,*HAL *WH

 2
81110D - BULB(FOR HEADLAMP, NO.2)
99132-12050

EP9#,NP90

12V 5W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-10801

EP9#,NP90..CARAT,RFL

 1
81130-10800

EP9#,NP90..CARAT,RFL,RFLF,RFLX

 1
81130-10850

EP9#..REMIX,RFLF,RFLX

 1
81144C - COVER, HEADLAMP SOCKET
81139-16770

EP9#..REMIX,RFLF,RFLX

 2
81139-10840

EP9#,NP90..RFL,RFLF,RFLX

 2
90075-99034

EP9#,NP90..CARAT,RFL

 2
81139-10840

EP9#,NP90..CARAT,RFL,RFLF,RFLX

 2
90075-65012

EP9#..RFLF,RFLX

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-10761

EP9#,NP90..CARAT,RFL

 1
81170-10760

EP9#,NP90..CARAT,RFL,RFLF,RFLX

 1
81170-10810

EP9#..REMIX,RFLF,RFLX

 1
81195 - SCREW, HEADLAMP
81195-10060

EP9#,NP90

NO.1

 2
81195-10050

EP9#,NP90

NO.3

 2
81195-10040

EP9#,NP90

NO.2

 2
81195 - SCREW, HEADLAMP
81195-10060

EP9#,NP90

NO.1

 2
81195-10050

EP9#,NP90

NO.3

 2
81195-10040

EP9#,NP90

NO.2

 2
81195 - SCREW, HEADLAMP
81195-10060

EP9#,NP90

NO.1

 2
81195-10050

EP9#,NP90

NO.3

 2
81195-10040

EP9#,NP90

NO.2

 2
81195 - SCREW, HEADLAMP
81195-10060

EP9#,NP90

NO.1

 2
81195-10050

EP9#,NP90

NO.3

 2
81195-10040

EP9#,NP90

NO.2

 2
81195 - SCREW, HEADLAMP
81195-10060

EP9#,NP90

NO.1

 2
81195-10050

EP9#,NP90

NO.3

 2
81195-10040

EP9#,NP90

NO.2

 2
81195 - SCREW, HEADLAMP
81195-10060

EP9#,NP90

NO.1

 2
81195-10050

EP9#,NP90

NO.3

 2
81195-10040

EP9#,NP90

NO.2

 2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-60001

EP9#,NP90

 2
Common parts
90179-06070
