EP91-AGPEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )3D

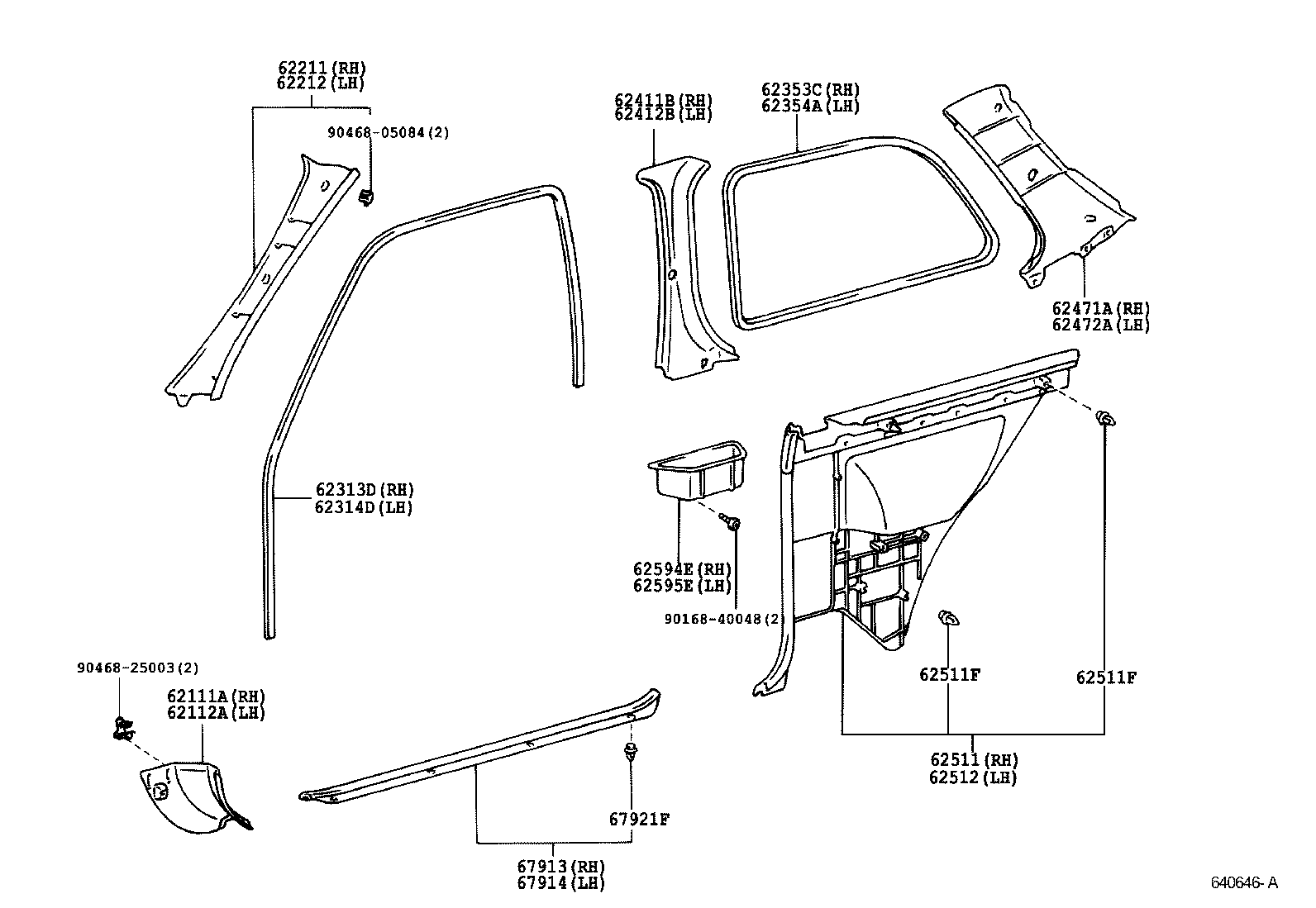

Click highlighted areas on diagram

diagram 62111A 62112A 62211 62212 62313D 62314D 62353C 62354A 62411B 62412B 62471A 62472A 62511 62511F 62511F 62512 62594E 62595E 67913 67914 67921F 9016840048 9046805084 9046825003
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62111-16120B2

EP9#,NP90..RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62112-16100B2

EP9#,NP90..RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62112-16101B2

EP9#,NP90..RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-10080B0

EP9#,NP90

LT.BLUISH GRAY,TRIM1#

 1
62211-10080B0

EP9#,NP90..GLZS,GLZV,RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-10090B0

EP9#,NP90

LT.BLUISH GRAY,TRIM1#

 1
62212-10090B0

EP9#,NP90..GLZS,GLZV,RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-10110B0

EP9#,NP90..3D

LT.BLUISH GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-10110B0

EP9#,NP90..3D

LT.BLUISH GRAY,TRIM1#

 1
62353C - TRIM, QUARTER WINDOW INSIDE, RH
62353-10040B0

EP9#,NP90..3D

LT.BLUISH GRAY,TRIM1#

 1
62354A - TRIM, QUARTER WINDOW INSIDE, LH
62354-10030B0

EP9#,NP90..3D

LT.BLUISH GRAY,TRIM1#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-10120B0

EP9#..3D..(CARAT,GLZS,GLZV,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-10120B0

EP9#..3D..(CARAT,GLZS,GLZV,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-10180B0

EP9#..3D..(CARAT,GLZS,GLZV,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-10180B0

EP9#..3D..(CARAT,GLZS,GLZV,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-1C420B1

EP91,NP90..3D..RFL

BLUISH GRAY,TRIM1#

 1
62510-1C480P0

EP9#..3D..(RFLF,RFLX)

BLUISH GRAY,TRIM1#

 1
62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD)
67771-33030

EP9#,NP90..3D

ﾌﾞﾗｯｸ

 2
67771-12050

EP9#,NP90..3D

ﾚｯﾄﾞ

 6
62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD)
67771-33030

EP9#,NP90..3D

ﾌﾞﾗｯｸ

 2
67771-12050

EP9#,NP90..3D

ﾚｯﾄﾞ

 6
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-1C470P0

EP9#..3D..(RFLF,RFLX)

BLUISH GRAY,TRIM1#

 1
62520-1C410B1

EP91,NP90..3D..RFL

BLUISH GRAY,TRIM1#

 1
62594E - POCKET, QUARTER TRIM, RH
62594-12060B1

EP9#,NP90..3D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
62595E - POCKET, QUARTER TRIM, LH
62594-12060B1

EP9#,NP90..3D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-10090B0

EP9#,NP90..3D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-10060B0

EP9#,NP90..3D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67914-10061B0

EP9#,NP90..3D..(RFL,RFLF,RFLX)

LT.BLUISH GRAY,TRIM1#

 1
67921F - RETAINER, FRONT DOOR SCUFF PLATE
67921-16020

EP9#,NP90..3D

 8
Common parts
90168-40048
90468-05084
90468-25003
