EP91-AGMVK (1996)
Toyota Starlet

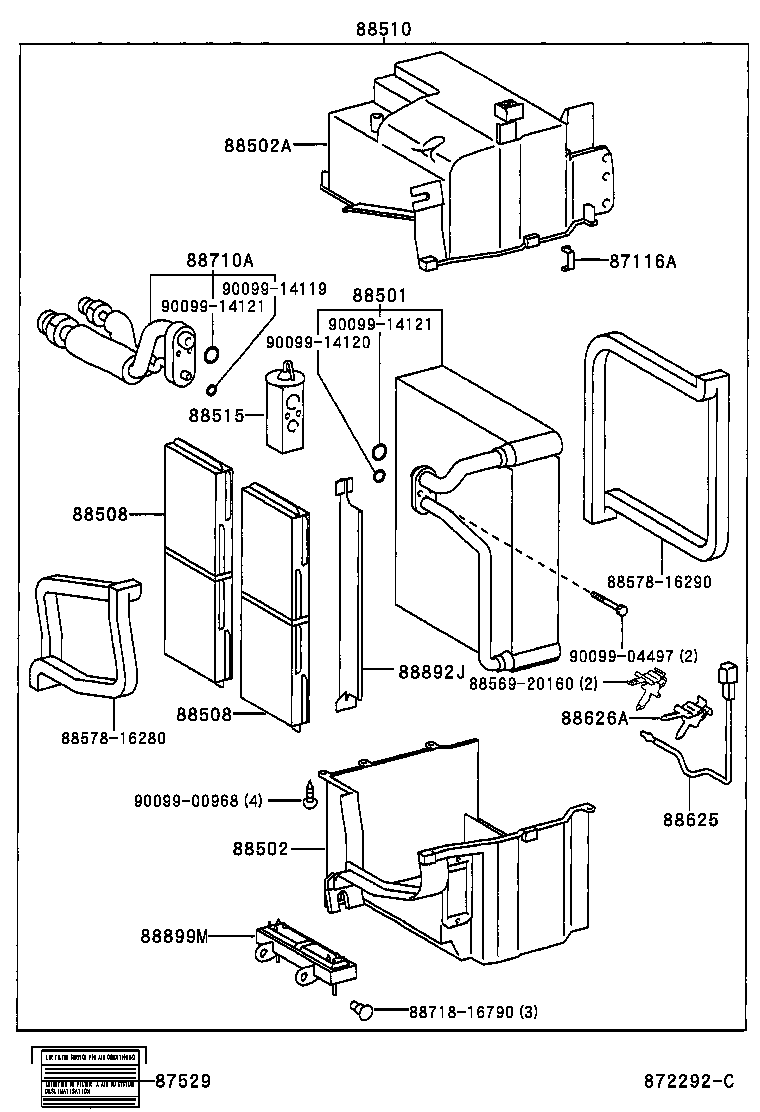

ILLUST NO. 2 OF 3(9712- )GLZS,GLZV,RFLX
ﾒｰｶ ｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
EP9#,NP90 |
3 | ||
| 87116-14010 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 87116-14010 |
EP91,NP90..GLZS,RFL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
3 | ||
| 87529 - PLATE, AIR FILTER CAUTION | ||||
| 87529-50020 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-10140 |
EP9#,NP90 |
1 | ||
| 88501-10140 |
EP91,NP90..GLZS,RFL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-16160 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-10080 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502-10060 |
EP9#,NP90 |
1 | ||
| 88502-10060 |
EP9#,NP90..CARAT,GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-10030 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88502-10050 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ- ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88502-10050 |
EP9#..CARAT,GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502-10050 |
EP9# |
1 | ||
| 88521-10050 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-16010 |
EP9#..GLZS,GLZV,RFLX |
2 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-16010 |
EP9#..GLZS,GLZV,RFLX |
2 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-10500 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-10640 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ- ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88510-10640 |
EP9#..CARAT,GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510-10640 |
EP9# |
1 | ||
| 88510-10720 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16060 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| 88515-16050 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| 88515-20100 |
EP9#,NP90 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-24050 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88625-16210 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ-ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88625-16210 |
EP9# |
1 | ||
| 88625-16210 |
EP9#..GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
EP9#,NP90 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-16250 |
EP9#,NP90 |
1 | ||
| 88710-10130 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88710-10150 |
EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF |
1 | ||
| 88710-16250 |
EP9#,NP90..CARAT,GLZS,RFL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88710-16380 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88892J - COVER SUB-ASSY | ||||
| 88892-16160 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-16040 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| Common parts | ||||
| 88569-20160 | ||||
| 88578-16280 | ||||
| 88578-16290 | ||||
| 88718-16790 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

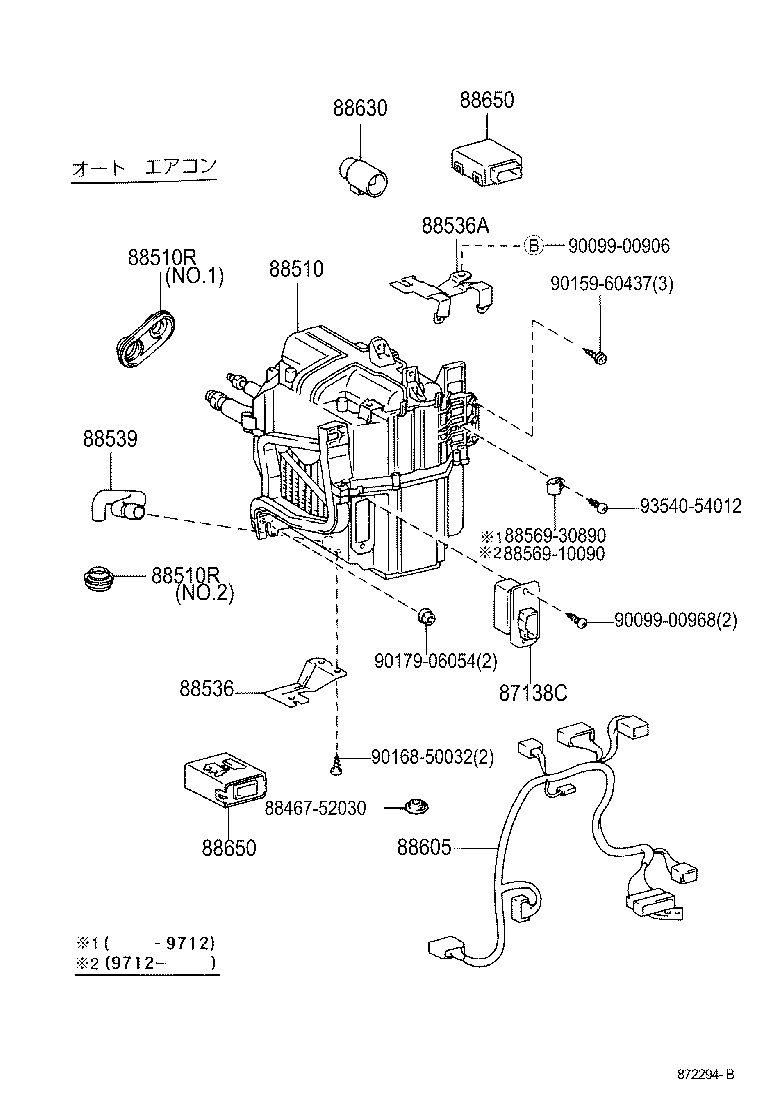

ILLUST NO. 1 OF 3(9601- )CARAT,GLZS,GLZV,RFL,RFLF,RFLX
ｵｰﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-10141 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87138-18020 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87138-10141 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-10500 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-10640 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ- ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88510-10640 |
EP9#..CARAT,GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510-10640 |
EP9# |
1 | ||
| 88510-10720 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-24008 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX NO.1 |
1 | ||
| 90480-24008 |
EP9#..GLZS,RFL,RFLF |
1 | ||
| 90480-26022 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX NO.2 |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-24008 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX NO.1 |
1 | ||
| 90480-24008 |
EP9#..GLZS,RFL,RFLF |
1 | ||
| 90480-26022 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX NO.2 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-10380 |
EP9#,NP90 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-10400 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-10090 |
EP9#,NP90 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-1M250 |
EP9#..GLZS,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-1M260 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ- ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605-1M450 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605-1M260 |
EP9#..CARAT,GLZS,REMIX,RFLF |
1 | ||
| 88605-1M260 |
EP9#..CARAT,GLZS,RFLF,RFLX |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95702 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-10470 |
EP9#..CARAT,GLZS,REMIX,RFLF,RFLX |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-10470 |
EP9#..CARAT,GLZS,REMIX,RFLF,RFLX |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88569-10090 | ||||
| 88569-30890 | ||||
| 90099-00906 | ||||
| 90099-00968 | ||||
| 90159-60437 | ||||
| 90168-50032 | ||||
| 90179-06054 | ||||
| 93540-54012 | ||||

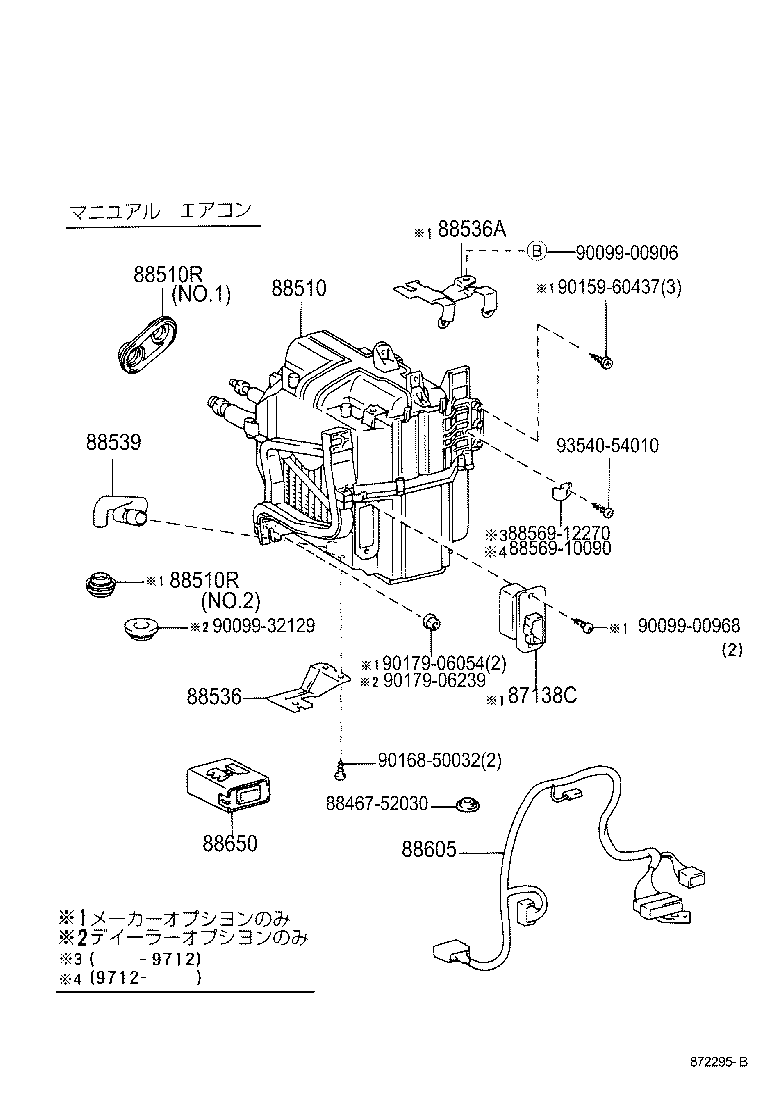

ILLUST NO. 1 OF 3(9601- )
ﾏﾆﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-10141 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87138-18020 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87138-10141 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-10500 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-10640 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ- ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88510-10640 |
EP9#..CARAT,GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510-10640 |
EP9# |
1 | ||
| 88510-10720 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-24008 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX NO.1 |
1 | ||
| 90480-24008 |
EP9#..GLZS,RFL,RFLF |
1 | ||
| 90480-26022 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX NO.2 |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-24008 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX NO.1 |
1 | ||
| 90480-24008 |
EP9#..GLZS,RFL,RFLF |
1 | ||
| 90480-26022 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX NO.2 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-10380 |
EP9#,NP90 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-10400 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-10090 |
EP9#,NP90 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-1M250 |
EP9#..GLZS,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-1M260 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ- ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605-1M450 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605-1M260 |
EP9#..CARAT,GLZS,REMIX,RFLF |
1 | ||
| 88605-1M260 |
EP9#..CARAT,GLZS,RFLF,RFLX |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-10470 |
EP9#..CARAT,GLZS,REMIX,RFLF,RFLX |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88569-10090 | ||||
| 88569-12270 | ||||
| 90099-00906 | ||||
| 90099-00968 | ||||
| 90099-32129 | ||||
| 90159-60437 | ||||
| 90168-50032 | ||||
| 90179-06054 | ||||
| 90179-06239 | ||||
| 93540-54010 | ||||

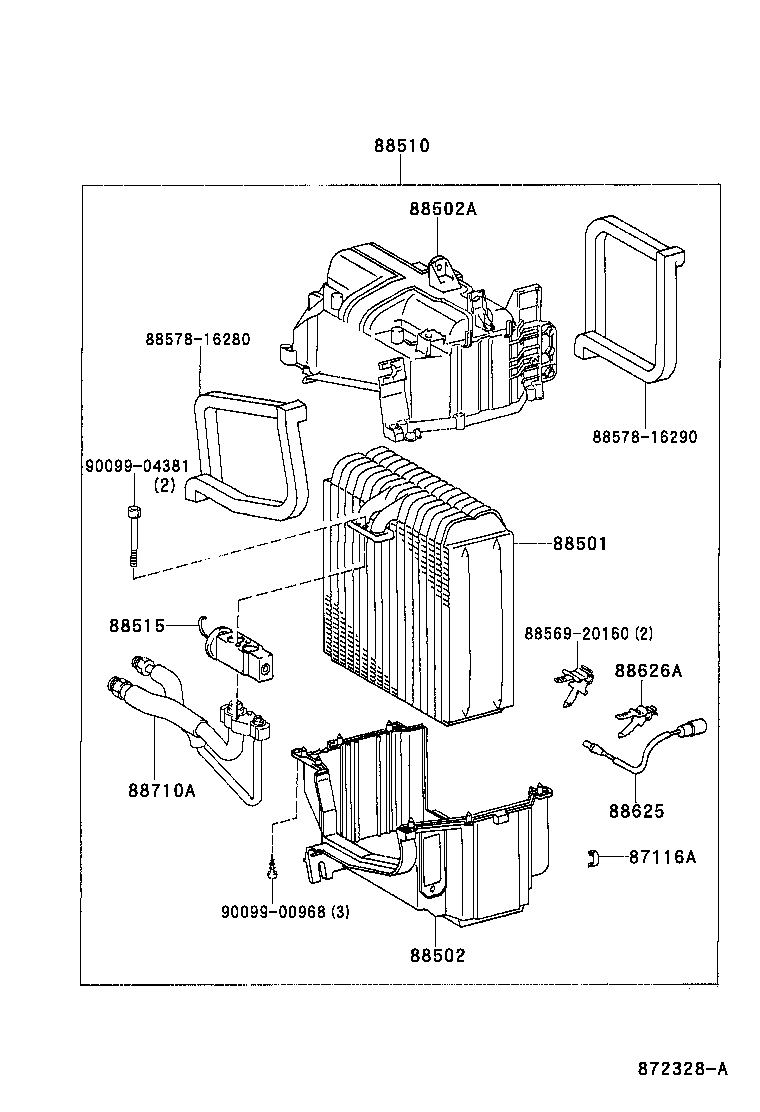

ILLUST NO. 2 OF 3(9601-9712) ; (9712- )CARAT,GLZS,REMIX,RFL,RFLF
GRZS---ﾃﾞｲｰﾗｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
EP9#,NP90 |
3 | ||
| 87116-14010 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 87116-14010 |
EP91,NP90..GLZS,RFL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
3 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-10140 |
EP9#,NP90 |
1 | ||
| 88501-10140 |
EP91,NP90..GLZS,RFL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-16160 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-10080 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502-10060 |
EP9#,NP90 |
1 | ||
| 88502-10060 |
EP9#,NP90..CARAT,GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-10030 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88502-10050 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ- ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88502-10050 |
EP9#..CARAT,GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88502-10050 |
EP9# |
1 | ||
| 88521-10050 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-10500 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-10640 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ- ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88510-10640 |
EP9#..CARAT,GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510-10640 |
EP9# |
1 | ||
| 88510-10720 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16060 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| 88515-16050 |
EP9#..GLZS,GLZV,RFLX |
1 | ||
| 88515-20100 |
EP9#,NP90 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-24050 |
EP9#..GLZS,GLZV,RFLX ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88625-16210 |
EP91..GLZS ﾏﾆﾕｱﾙ ｴｱｺﾝ OR ﾃﾞｲ-ﾗ-ｷﾂﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88625-16210 |
EP9# |
1 | ||
| 88625-16210 |
EP9#..GLZS,RFL,RFLF ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
EP9#,NP90 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-16250 |
EP9#,NP90 |
1 | ||
| 88710-10130 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88710-10150 |
EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF |
1 | ||
| 88710-16250 |
EP9#,NP90..CARAT,GLZS,RFL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88710-16380 |
EP9#..GLZS,GLZV,RFLX ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| Common parts | ||||
| 88569-20160 | ||||
| 88578-16280 | ||||
| 88578-16290 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
ILLUST NO. 3 OF 3(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||
