EP91-AGMVK (1996)
Toyota Starlet

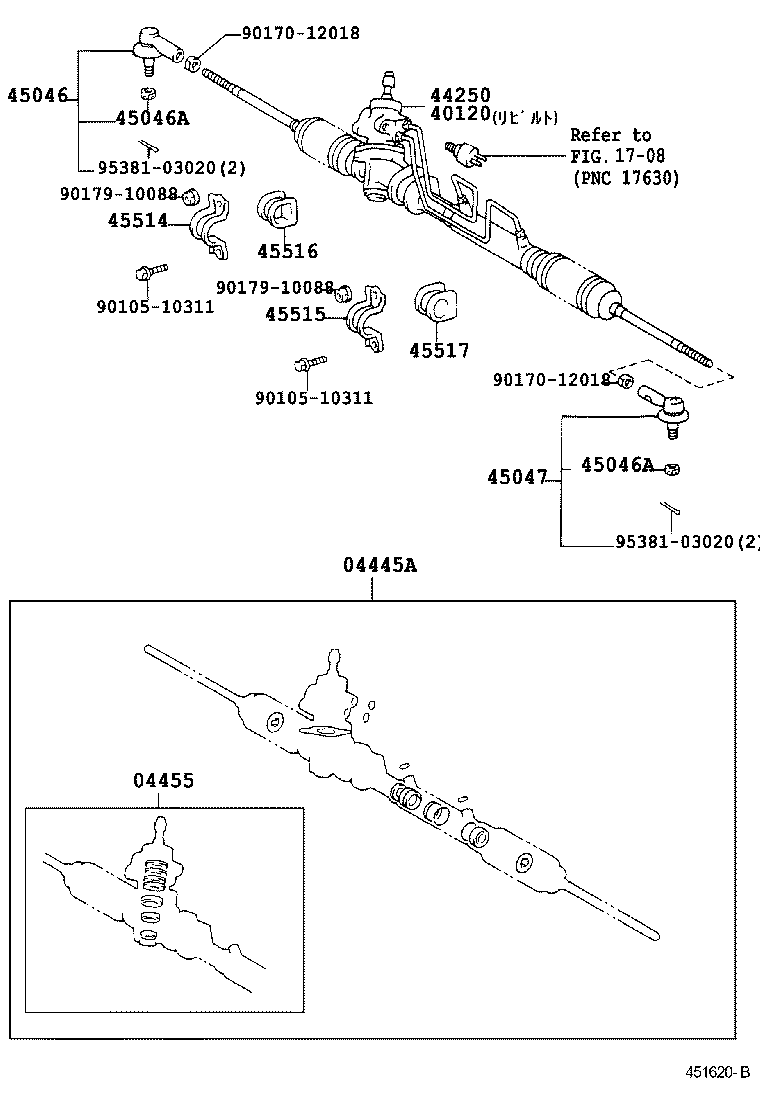

ILLUST NO. 1 OF 2(9601- )NP90 ; (9601- )EP9#..5D ; (9601-)EP9#..3D..GLZS,GLZV,RFL,RFLF,RFL
ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-16110 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-10030 |
EP9#,NP90 |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-10200 |
EP91..GLZS KOYO |
1 | ||
| 40120-10201 |
EP91..GLZS,REMIX KOYO |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-10201 |
EP91..GLZS,REMIX |
1 | ||
| 44250-10200 |
EP91..GLZS |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19206 |
EP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EP9#,NP90 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EP9#,NP90 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19206 |
EP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16060 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 45514-16061 |
NP90;EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-16060 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 45514-16061 |
NP90;EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-16060 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10070 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| Common parts | ||||
| 90105-10311 | ||||
| 90170-12018 | ||||
| 90179-10088 | ||||
| 95381-03020 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 2 OF 2(9601- )NP90 ; (9601- )EP9#..5D ; (9601-)EP9#..3D..GLZS,GLZV,RFL,RFLF,RFL
ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-16080 |
EP91..GLZS,REMIX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
EP9#,NP90 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
EP9#,NP90 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
EP9#,NP90 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
EP9#,NP90 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19010 |
EP9#,NP90 |
1 | ||
| 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19007 |
EP9#,NP90 |
1 | ||
| 90365-19001 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-10030 |
EP95;EP91..GLZS,REMIX |
1 | ||
| 44204-10040 |
EP95;EP91..GLZS |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-29005 |
EP9#,NP90 内側 |
1 | ||
| 90562-34002 |
EP9#,NP90 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-29005 |
EP9#,NP90 内側 |
1 | ||
| 90562-34002 |
EP9#,NP90 外側 |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44205-10020 |
EP9#,NP90 |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 90301-33004 |
EP9#,NP90 |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90311-22014 |
EP9#,NP90 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-22017 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-16071 |
EP91..GLZS,REMIX |
1 | ||
| 44210-16070 |
EP91..GLZS |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05006 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 90410-05006 |
EP9# |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
EP9#,NP90 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44022-10040 |
EP9# |
1 | ||
| 44022-10020 |
EP9# |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-12020 |
EP9#,NP90 |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-10050 |
EP9#,NP90 |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-12009 |
EP9#,NP90 |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90364-22006 |
EP9#,NP90 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-10020 |
EP9#,NP90 |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-18001 |
EP9#,NP90 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-16010 |
EP9#,NP90 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-10020 |
EP9#,NP90 |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EP9#,NP90 |
4 | ||
| 90301-03001 |
EP9#,NP90 |
2 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EP9#,NP90 |
4 | ||
| 90301-03001 |
EP9#,NP90 |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-10020 |
EP9#,NP90 |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-12002 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-12002 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
2 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-32031 |
EP9#,NP90 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-30002 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-08718 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-08718 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-17021 |
EP9#,NP90 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-17021 |
EP9#,NP90 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19185 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19185 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45504-16060 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 45542-12010 |
EP9#,NP90 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16050 |
EP9#,NP90 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-10060 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-10060 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 90179-10048 | ||||
| 91611-60825 | ||||

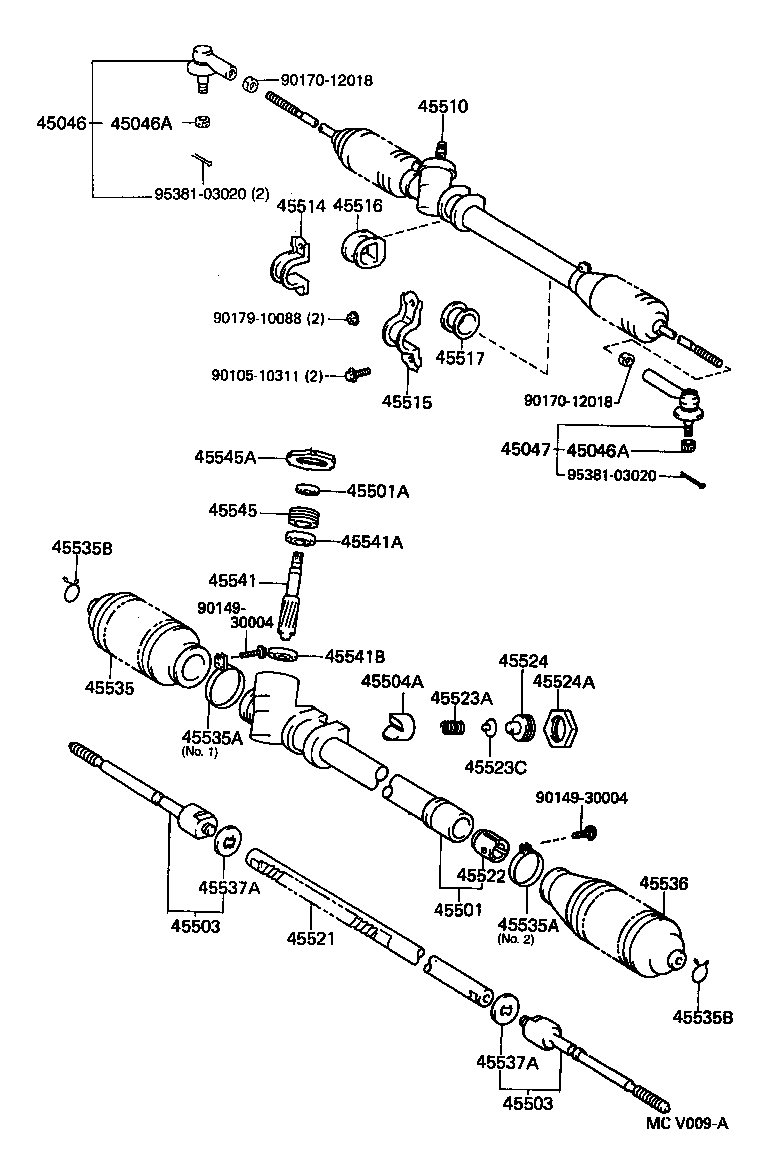

(9601- )NP90 ; (9601- )EP9#..5D ; (9601-)EP9#..3D..GLZS,GLZV,RFL,RFLF,RFL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19206 |
EP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EP9#,NP90 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EP9#,NP90 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19206 |
EP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19185 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19185 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16060 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 45514-16061 |
NP90;EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-16060 |
EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
1 | ||
| 45514-16061 |
NP90;EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-16060 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10070 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 45542-12010 |
EP9#,NP90 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16050 |
EP9#,NP90 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-10060 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-08718 |
EP9#..GLZS,GLZV,RFLF,RFLX |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-08718 |
EP9#..GLZS,GLZV,RFLF,RFLX |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-10060 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| Common parts | ||||
| 90105-10311 | ||||
| 90149-30004 | ||||
| 90170-12018 | ||||
| 90179-10088 | ||||
| 95381-03020 | ||||
