EP91-AGMQY (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4EFTE

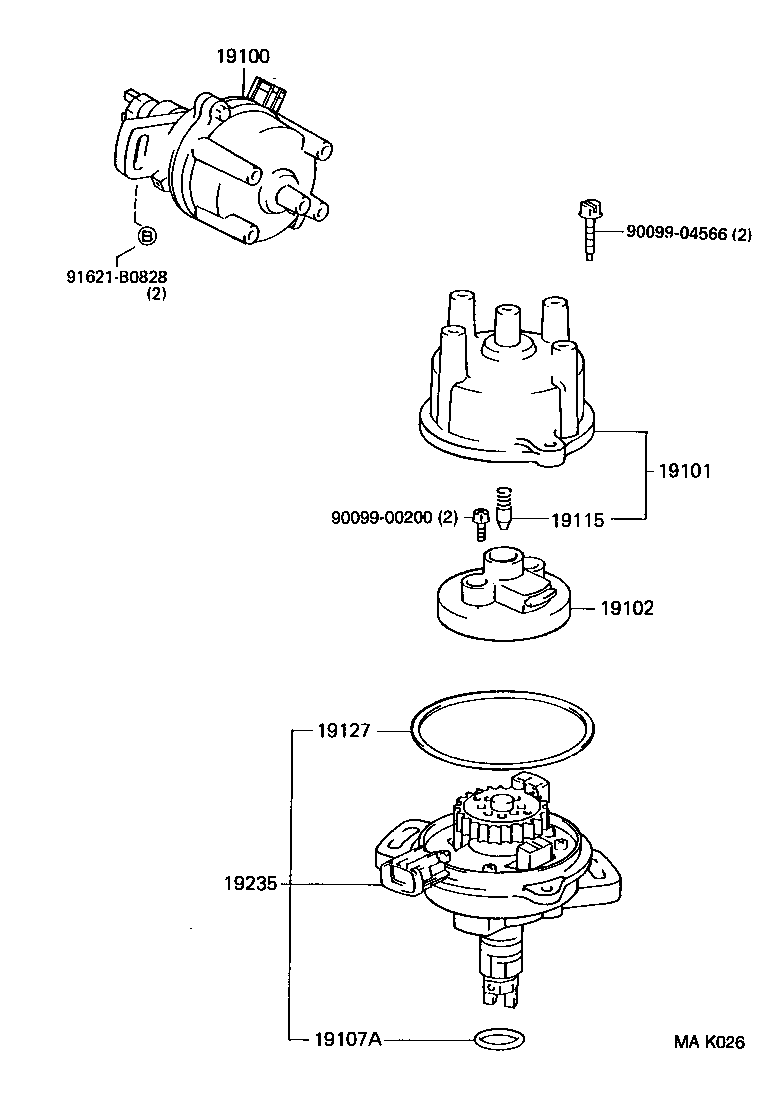

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19127 19235 9009900200 9009904566 91621B0828
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-11081

4EFTE..EP91

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11080

4EFTE..EP91

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-74040

4EFTE..EP91

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14088

4EF#..EP9#

 1
90099-14088

4EFTE..EP91

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

4EFTE..EP91

 1
19127 - PACKING, DUST PROOF
19127-74040

4EFTE..EP91

 1
19235 - HOUSING, DISTRIBUTOR
19235-11330

4EFTE..EP91

 1
Common parts
90099-00200
90099-04566
91621-B0828
