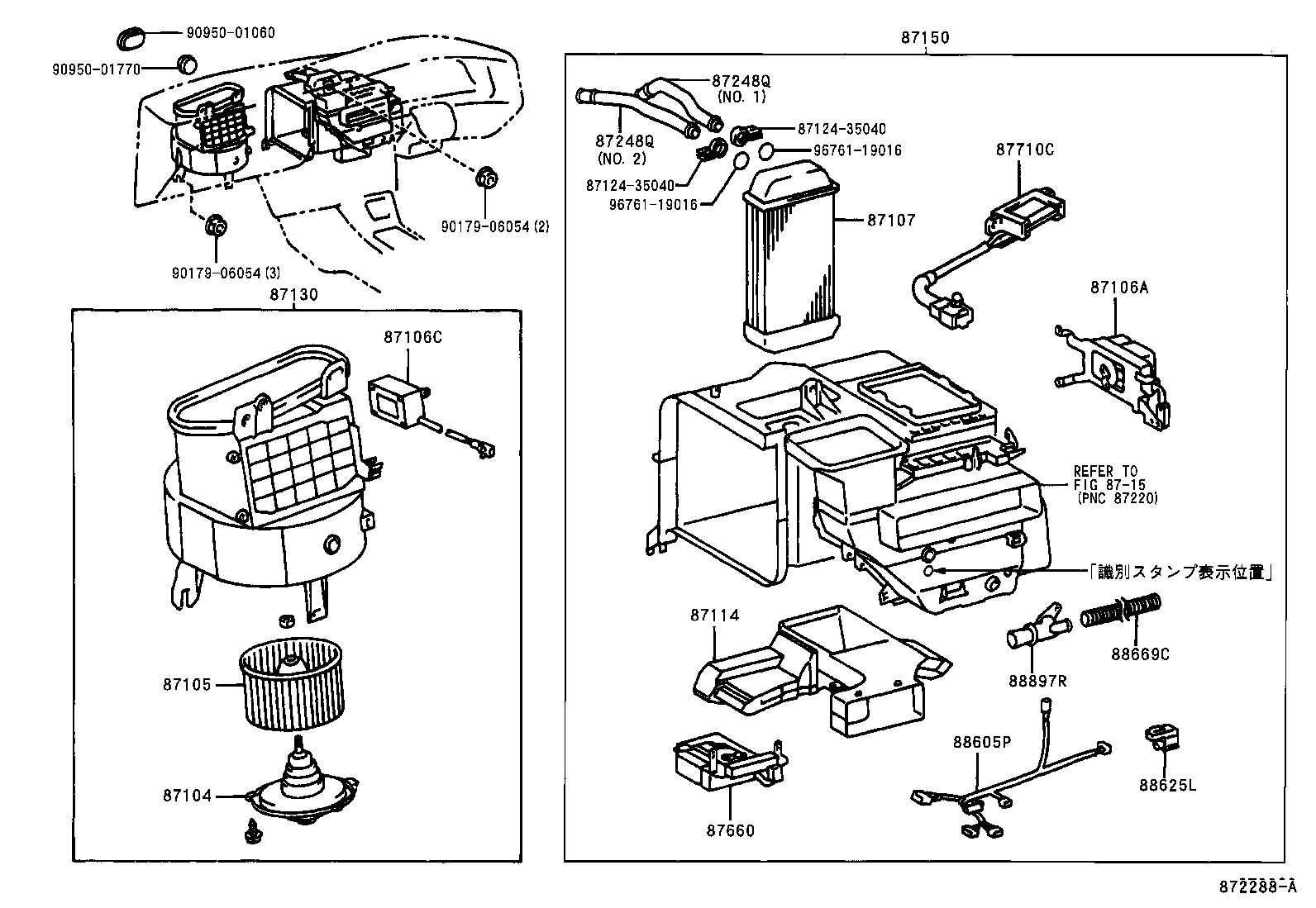

Toyota Starlet EP91 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-10250	EP9#,NP90	01/1996 - 12/2999	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030	EP9#,NP90	01/1996 - 12/2999	1
87106A - SERVO SUB-ASSY, DAMPER
87106-16050	EP9#..CARAT,GLZV,RFLX	04/1997 - 07/1999	1
87106-16050	EP9#..GLZS,GLZV,RFLX	01/1996 - 04/1997	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-10010	EP9#..CARAT,GLZV,RFLX	04/1997 - 07/1999	1
87106-10010	EP9#..GLZS,GLZV,RFLX	01/1996 - 04/1997	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-10330	EP9#,NP90	01/1996 - 12/2999	1
87107-10340	EP9#,NP90 ｱﾘ(ﾘﾔﾋ-ﾀ- ﾀﾞｸﾄ)	01/1996 - 12/2999	1
87114 - COVER, HEATER
87114-16050	EP9#,NP90	01/1996 - 12/2999	1
87114-16060	EP9#,NP90 ｱﾘ(ﾘﾔﾋ-ﾀ- ﾀﾞｸﾄ)	01/1996 - 12/2999	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-10190	EP9#,NP90	01/1996 - 12/2999	1
87130-10180	EP9#..GLZS,GLZV,RFLX ｱﾘ(ﾘﾔﾋ-ﾀ- ﾀﾞｸﾄ)	01/1996 - 04/1997	1
87130-10180	EP9#..CARAT,GLZV,RFLX ｱﾘ(ﾘﾔﾋ-ﾀ- ﾀﾞｸﾄ)	04/1997 - 12/2999	1
87150 - RADIATOR ASSY, HEATER
87150-10440	EP9#..GLZS,GLZV,RFLX ｼｷﾍﾞﾂｽﾀﾝﾌﾟ=B	01/1996 - 04/1997	1
87150-10460	EP9# ｼｷﾍﾞﾂｽﾀﾝﾌﾟ=D	01/1996 - 12/2999	1
87150-10430	EP9#..GLZS,GLZV,RFLX ｼｷﾍﾞﾂｽﾀﾝﾌﾟ=A	01/1996 - 04/1997	1
87150-10440	EP9#..CARAT,GLZV,RFLX ｼｷﾍﾞﾂｽﾀﾝﾌﾟ=B	04/1997 - 12/2999	1
87150-10430	EP9#..CARAT,GLZV,RFLX ｼｷﾍﾞﾂｽﾀﾝﾌﾟ=A	04/1997 - 12/2999	1
87150-10450	EP9# ｼｷﾍﾞﾂｽﾀﾝﾌﾟ=C	01/1996 - 12/2999	1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-10020	EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) NO.2	01/1996 - 12/2999	1
87156-10010	EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) NO.1	01/1996 - 12/2999	1
87156-10030	EP9#..GLZS,GLZV,RFL,RFLF,RFLX ｶﾝﾚｲﾁｼﾖｳ,NO.1	01/1996 - 12/2999	1
87156-10040	EP9#..GLZS,GLZV,RFL,RFLF,RFLX ｶﾝﾚｲﾁｼﾖｳ,NO.2	01/1996 - 12/2999	1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-10020	EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) NO.2	01/1996 - 12/2999	1
87156-10010	EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) NO.1	01/1996 - 12/2999	1
87156-10030	EP9#..GLZS,GLZV,RFL,RFLF,RFLX ｶﾝﾚｲﾁｼﾖｳ,NO.1	01/1996 - 12/2999	1
87156-10040	EP9#..GLZS,GLZV,RFL,RFLF,RFLX ｶﾝﾚｲﾁｼﾖｳ,NO.2	01/1996 - 12/2999	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-16050	EP9#..GLZS,GLZV,RFLX	01/1996 - 04/1997	1
88660-16050	EP9#..CARAT,GLZV,RFLX	04/1997 - 12/2999	1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-1S100	EP9#..CARAT,GLZV,RFLX	04/1997 - 12/2999	1
88605-1S100	EP9#..GLZS,GLZV,RFLX	01/1996 - 04/1997	1
88625L - THERMISTOR, COOLER
88625-20490	EP9#	10/1997 - 12/1997	1
88625-33010	EP9#..CARAT,GLZV,RFLX	04/1997 - 10/1997	1
88625-33010	EP9#..GLZS,GLZV,RFLX	01/1996 - 04/1997	1
88625-20490	EP9#..CARAT,GLZV,RFLX	12/1997 - 12/2999	1
88669C - HOSE, AIR
88669-16060	EP9#..GLZS,GLZV,RFLX	01/1996 - 04/1997	1
88669-16060	EP9#..CARAT,GLZV,RFLX	04/1997 - 12/2999	1
88897R - ASPIRATOR
88897-22100	EP9#..CARAT,GLZV,RFLX	04/1997 - 12/2999	1
88897-22100	EP9#..GLZS,GLZV,RFLX	01/1996 - 04/1997	1
Common parts
87124-35040
90179-06054
90950-01060
90950-01770
96761-19016
