EP91-AGMEK (1996)
Toyota Starlet

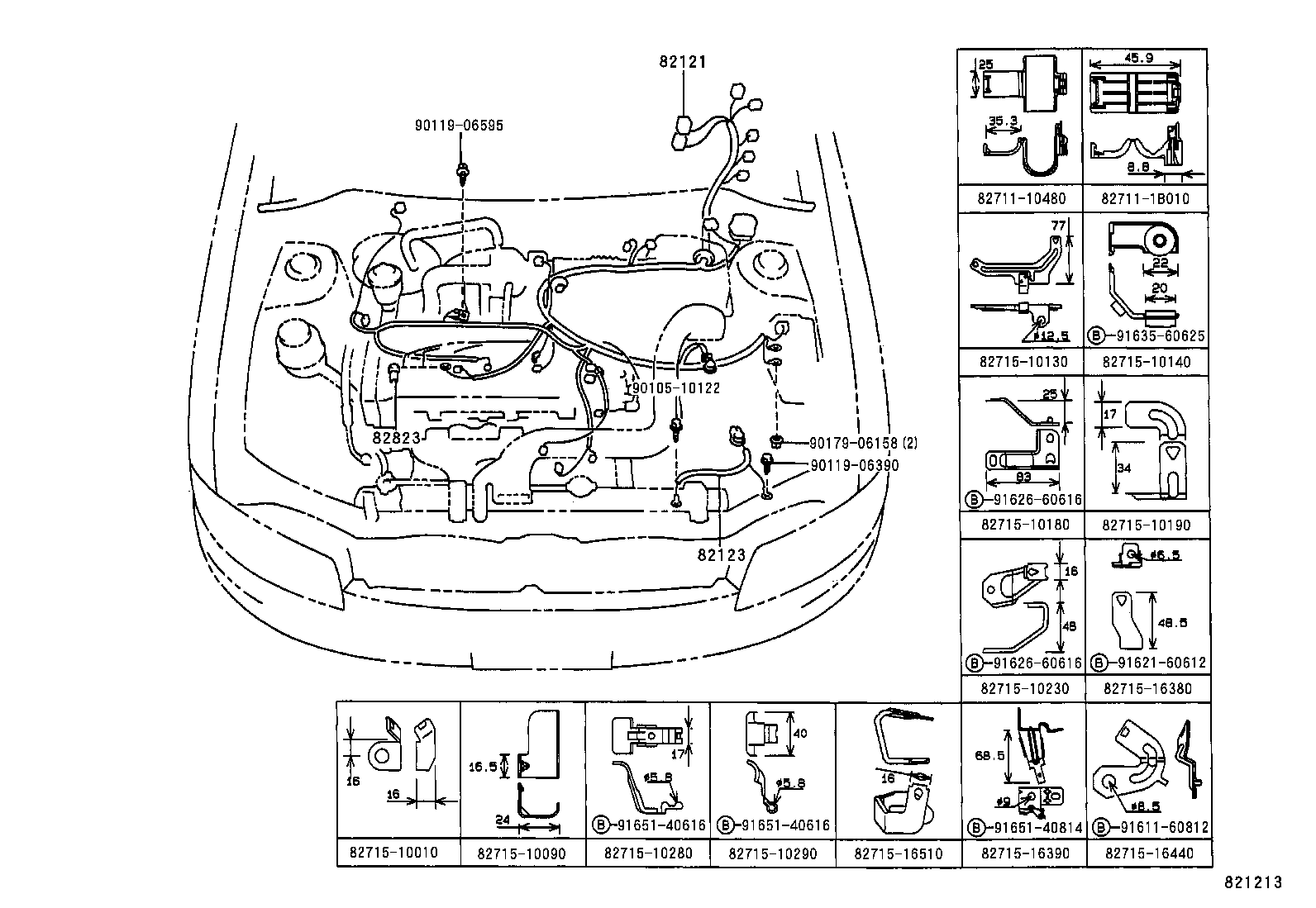

ILLUST NO. 2 OF 7(9601- )EP9#
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1C130 |
EP91..GLZS,RFL,RFLF,RFLX |
1 | ||
| 82121-1C111 |
EP9#..MTM..(CARAT,GLZS,RFL,RFLF,RFLX) |
1 | ||
| 82121-1C110 |
EP9#..MTM..(CARAT,GLZS,RFL,RFLF,RFLX) |
1 | ||
| 82121-1C390 |
EP9#..MTM..(CARAT,GLZS,REMIX,RFL,RFLF,RFLX) |
1 | ||
| 82121-1C132 |
EP91..CARAT,GLZS,RFL,RFLF,RFLX |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-10160 |
EP9#..MTM |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
EP9#,NP90 |
1 | ||
| Common parts | ||||
| 82711-10480 | ||||
| 82711-1B010 | ||||
| 82715-10010 | ||||
| 82715-10090 | ||||
| 82715-10130 | ||||
| 82715-10140 | ||||
| 82715-10180 | ||||
| 82715-10190 | ||||
| 82715-10230 | ||||
| 82715-10280 | ||||
| 82715-10290 | ||||
| 82715-16380 | ||||
| 82715-16390 | ||||
| 82715-16440 | ||||
| 82715-16510 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90119-06595 | ||||
| 90179-06158 | ||||
| 91611-60812 | ||||
| 91621-60612 | ||||
| 91626-60616 | ||||
| 91635-60625 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||

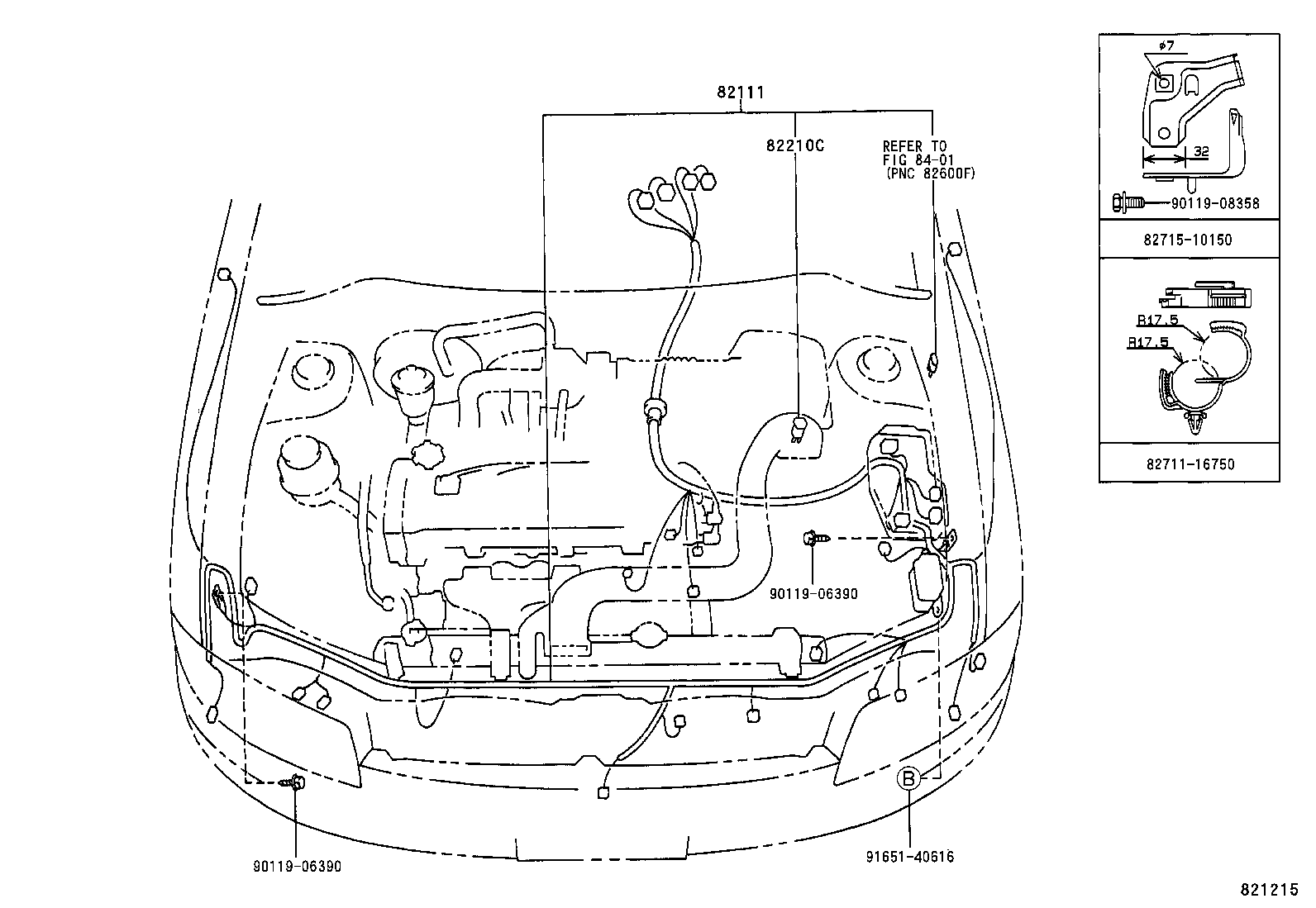

ILLUST NO. 3 OF 7(9601- )EP9#
E/G ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-10880 |
EP9#..MTM..(GLZS,RFL,RFLF,RFLX) ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82111-10850 |
EP9#..MTM..(GLZS,RFLF,RFLX) |
1 | ||
| 82111-10881 |
EP9#..MTM..(CARAT,GLZS,RFLF,RFLX) |
1 | ||
| 82111-1C370 |
EP91..RFL ｱﾘ(ABS) |
1 | ||
| 82111-1C380 |
EP9#..CARAT,RFLX ｱﾘ(ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ) |
1 | ||
| 82111-1C370 |
EP9#..CARAT,RFLF,RFLX |
1 | ||
| 82111-1C360 |
EP91..RFL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
EP9#,NP90 100A,ｵｽ端子,青 |
1 | ||
| 90982-08285 |
EP9#,NP90 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
EP9#,NP90 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08284 |
EP9#,NP90 40A,ﾒｽ端子,緑 |
1 | ||
| Common parts | ||||
| 82711-16750 | ||||
| 82715-10150 | ||||
| 90119-06390 | ||||
| 90119-08358 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

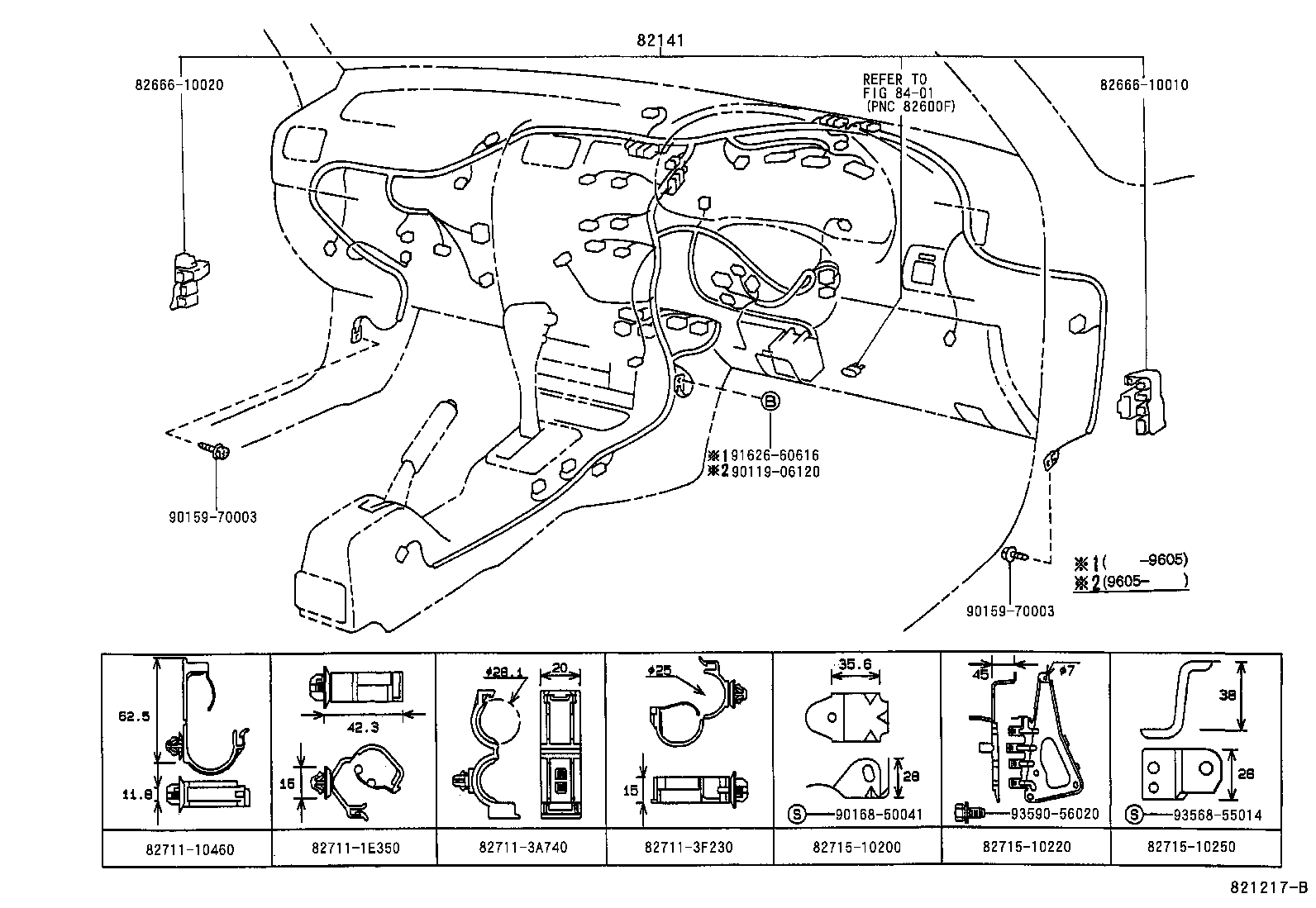

ILLUST NO. 4 OF 7(9601- )
INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-10130 |
EP9#..RFLX ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & *AAC) |
1 | ||
| 82141-10020 |
EP9#..RFL,RFLF,RFLX ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82141-10010 |
EP91..RFL,RFLF |
1 | ||
| 82141-10030 |
EP91..RFL ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82141-10050 |
EP9#..RFLX ｱﾘ(*AAC) |
1 | ||
| 82141-10030 |
EP9#..(4FC,5F)..(RFLF,RFLX) |
1 | ||
| 82141-10040 |
EP9#..3D..RFLX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(AM/FM ｶｾﾂﾄ 4ｽﾋﾟ-ｶ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾘﾓｺﾝ ｶﾗ-ﾄﾞ ﾄﾞｱﾐﾗ-) |
1 | ||
| 82141-10020 |
EP91..3D..5F..RFLX ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ |
1 | ||
| 82141-10011 |
EP91..RFL |
1 | ||
| 82141-10031 |
EP91..RFL ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82141-10130 |
EP91..RFLX;EP95..4FC..RFLX;EP95..3D..5F..RFLX ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & *AAC) |
1 | ||
| 82141-10031 |
EP9#..(4FC,5F)..(RFLF,RFLX) |
1 | ||
| 82141-10041 |
EP9#..3D..RFLX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(AM/FM ｶｾﾂﾄ 4ｽﾋﾟ-ｶ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾘﾓｺﾝ ｶﾗ-ﾄﾞ ﾄﾞｱﾐﾗ-) |
1 | ||
| 82141-10021 |
EP91..RFL ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82141-10061 |
EP9#..CARAT;EP9#..3D..RFLX ｱﾘ(*AAC) |
1 | ||
| 82141-10181 |
EP9#..CARAT,RFLX ﾅｼ(*80,ｼﾞﾖｼﾕｾｷ);ｱﾘ(*AAC) |
1 | ||
| 82141-10410 |
EP9#..(4FC,5F)..(RFLF,RFLX) |
1 | ||
| 82141-10440 |
EP9#..CARAT,RFLX ｱﾘ(ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ) |
1 | ||
| 82141-10420 |
EP9#..RFLX ｴｸｾﾚﾝﾄ ﾊﾟﾂｹ-ｼﾞ OR AM/FM ｶｾﾂﾄ 4ｽﾋﾟｰｶ OR ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ OR ﾑｰﾝﾙｰﾌ) |
1 | ||
| 82141-10171 |
EP9#..CARAT,RFLF,RFLX ﾅｼ(*80,ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82141-10411 |
EP9#..RFLF,RFLX ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82141-10441 |
EP9#..CARAT,RFLX ｱﾘ(ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82141-10660 |
EP91..RFL |
1 | ||
| 82141-10661 |
EP91..RFL |
1 | ||
| 82141-10421 |
EP9#..RFLF,RFLX;EP9#..3D..CARAT F ﾘﾐﾃﾂﾄﾞ ﾊﾟﾂｹｰｼﾞ OR ｴｸｽﾄﾗ ﾊﾟﾂｹｰｼﾞ OR AM/FM ｶｾﾂﾄ 4ｽﾋﾟｰｶ OR ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| Common parts | ||||
| 82666-10010 | ||||
| 82666-10020 | ||||
| 82711-10460 | ||||
| 82711-1E350 | ||||
| 82711-3A740 | ||||
| 82711-3F230 | ||||
| 82715-10200 | ||||
| 82715-10220 | ||||
| 82715-10250 | ||||
| 90119-06120 | ||||
| 90159-70003 | ||||
| 90168-50041 | ||||
| 91626-60616 | ||||
| 93568-55014 | ||||
| 93590-56020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

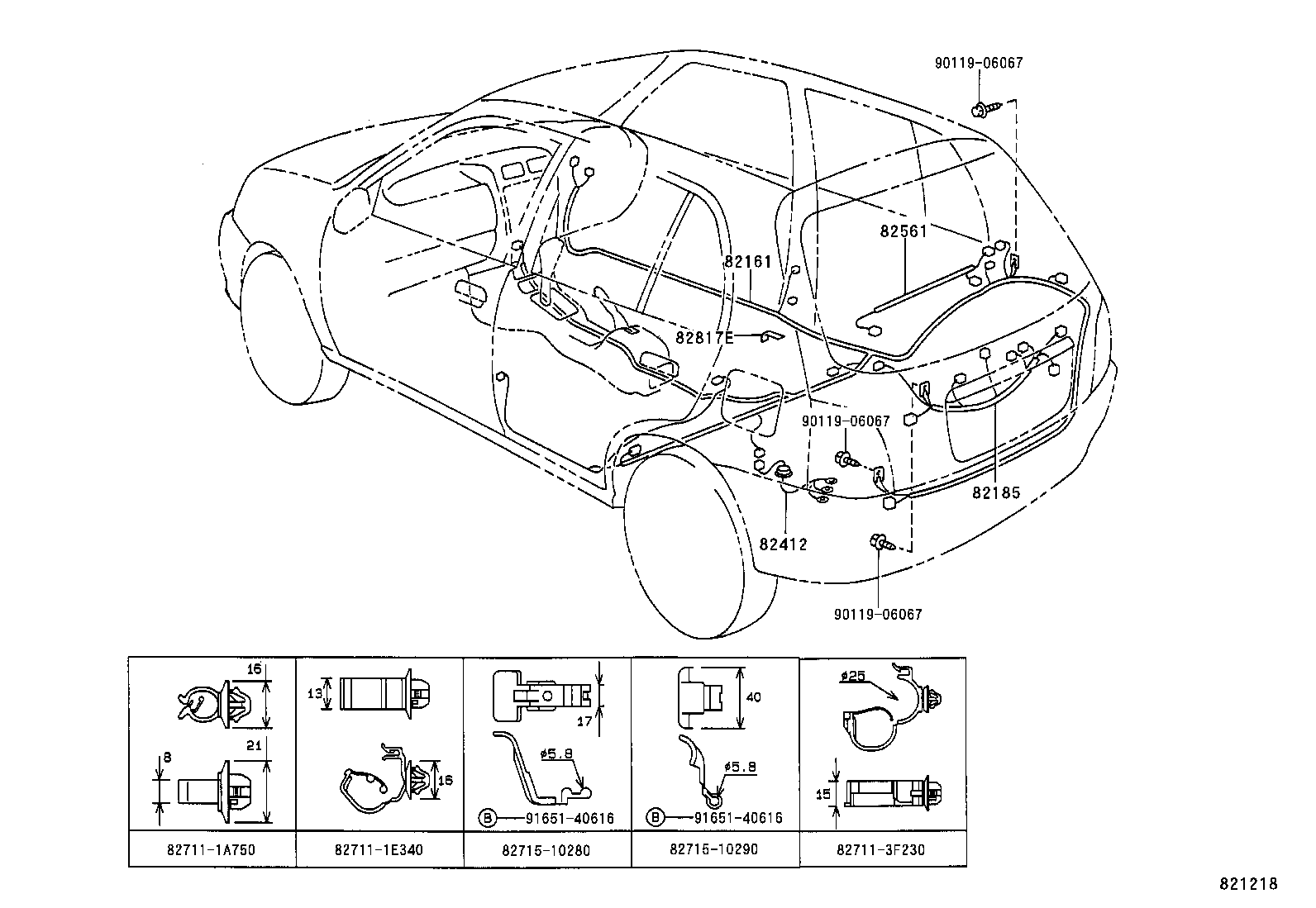

ILLUST NO. 6 OF 7(9601- )
FLOOR,BACK DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-10830 |
EP91,NP90..RFL |
1 | ||
| 82161-1C011 |
EP91..3D..(GLZS,GLZV,RFLF,RFLX) |
1 | ||
| 82161-10840 |
EP91..GLZS,GLZV,RFLF,RFLX ｱﾘ(AM/FM ｶｾﾂﾄ 4ｽﾋﾟ-ｶ) |
1 | ||
| 82161-10820 |
EP91,NP90..RFL ｱﾘ(ABS) |
1 | ||
| 82161-1C021 |
EP91..4FC..GLZV;EP91..3D..(GLZS,RFLF,RFLX) ｱﾘ(AM/FM ｶｾﾂﾄ 4ｽﾋﾟ-ｶ) |
1 | ||
| 82161-10820 |
EP91..GLZS,GLZV,RFLF,RFLX |
1 | ||
| 82161-1C021 |
EP91,NP90..3D..RFL |
1 | ||
| 82161-1C050 |
EP91,NP90..3D..RFL ｱﾘ(ABS) |
1 | ||
| 82161-1C060 |
EP91,NP90..3D..RFL |
1 | ||
| 82161-1C050 |
EP91..3D..(CARAT,GLZS,GLZV,RFLF,RFLX) |
1 | ||
| 82161-1C061 |
EP91,NP90..3D AM/FM ｶｾﾂﾄ 4 ｽﾋﾟ-ｶ |
1 | ||
| 82161-1C051 |
EP91,NP90..3D ｱﾘ(ABS) |
1 | ||
| 82161-1C060 |
EP91..3D..(CARAT,GLZS,GLZV,RFLF,RFLX) AM/FM ｶｾﾂﾄ 4 ｽﾋﾟ-ｶ |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-10220 |
EP9#,NP90..RFL,RFLF ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82185-10210 |
EP9#,NP90..RFL,RFLF |
1 | ||
| 82185-10240 |
EP9#,NP90..RFL,RFLF ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185-10230 |
EP9#,NP90..RFL,RFLF ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185-10240 |
EP9#..RFLX |
1 | ||
| 82185-10230 |
EP9#..RFLX ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82185-10220 |
EP91,NP90..RFL,RFLF ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82185-10210 |
EP91,NP90..RFL,RFLF |
1 | ||
| 82561 - WIRE, REAR SPEAKER | ||||
| 82561-10040 |
EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-30150 |
EP91,NP90 |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 82711-1E340 | ||||
| 82711-3F230 | ||||
| 82715-10280 | ||||
| 82715-10290 | ||||
| 90119-06067 | ||||
| 91651-40616 | ||||

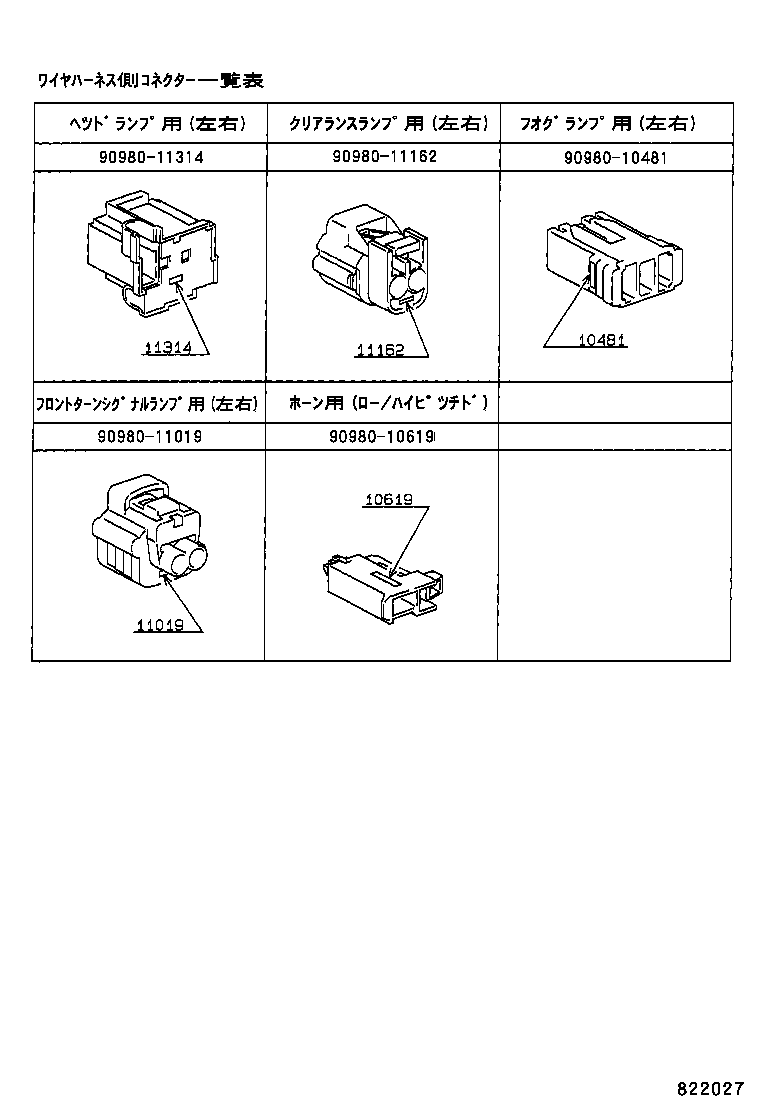

ILLUST NO. 7 OF 7(9601- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-11019 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||

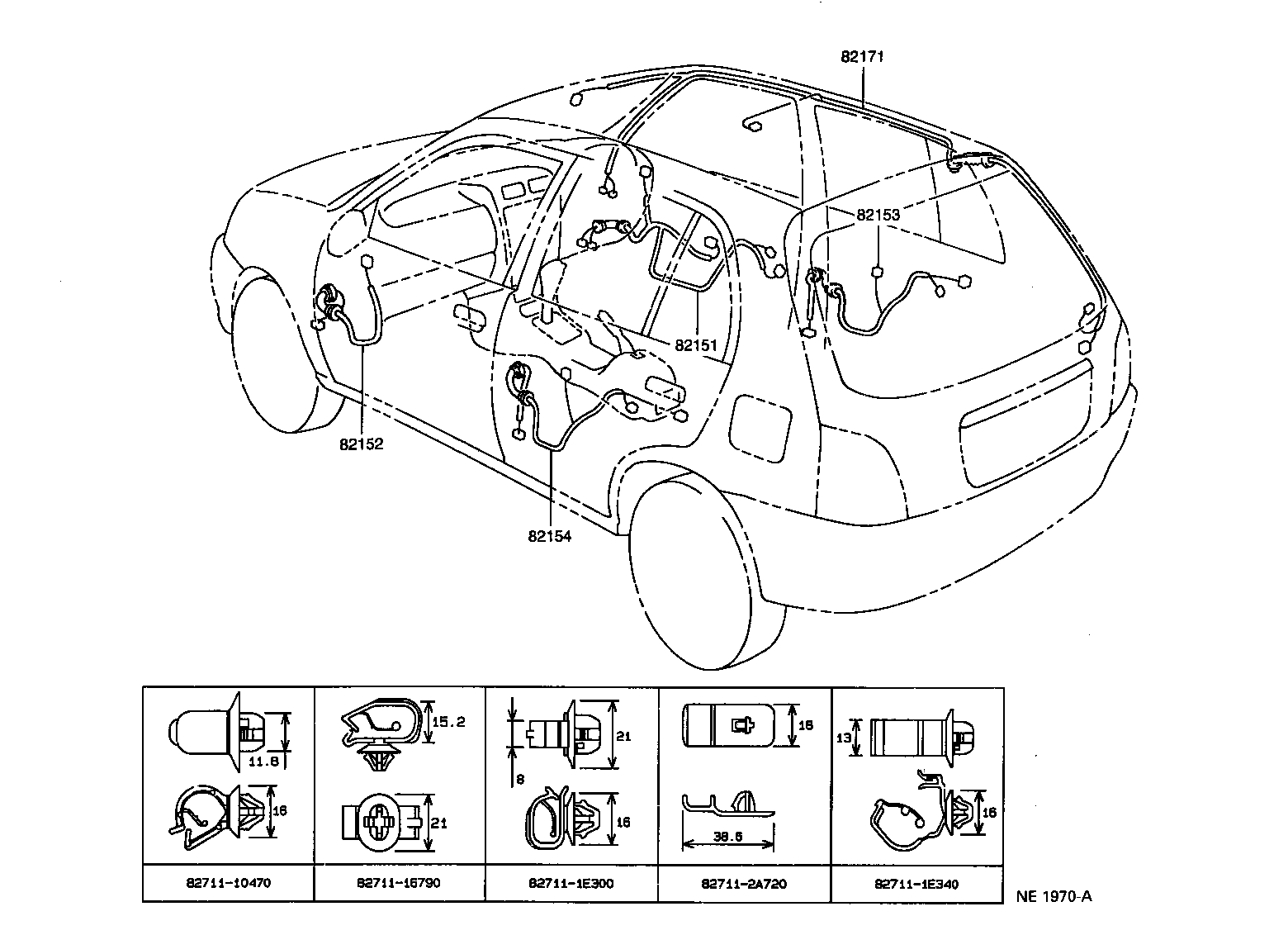

ILLUST NO. 5 OF 7(9601- )
DOOR,ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-10310 |
EP9#..3D..(GLZS,GLZV,RFLF,RFLX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-10290 |
EP9#..GLZV,RFLX |
1 | ||
| 82151-10390 |
EP9#..GLZS,GLZV,RFLF,RFLX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾘﾓｺﾝ ｶﾗ-ﾄﾞ ﾄﾞｱﾐﾗ-) |
1 | ||
| 82151-10400 |
EP9#..3D..(GLZV,RFLX) ｴｸｾﾚﾝﾄ ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-10290 |
EP9#..GLZS,GLZV,REMIX,RFLX |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-10300 |
EP9#..GLZV,RFLX |
1 | ||
| 82152-10410 |
EP9#..GLZS,GLZV,RFLF,RFLX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾘﾓｺﾝ ｶﾗｰﾄﾞ ﾄﾞｱﾐﾗｰ) & ﾅｼ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-10320 |
EP9#..3D..(GLZS,GLZV,RFLF,RFLX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-10300 |
EP9#..GLZS,GLZV,REMIX,RFLX |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-10150 |
EP9#,NP90..RFL,RFLF |
1 | ||
| 82171-10160 |
EP9#..CARAT,RFLX |
1 | ||
| 82171-10240 |
EP9#,NP90..RFL,RFLF ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ OR ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 82171-10230 |
EP91,NP90..RFL,RFLF |
1 | ||
| 82171-10160 |
EP9#,NP90..RFL,RFLF ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82171-10170 |
EP9#..CARAT,RFLF,RFLX ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82171-10240 |
EP9#..CARAT,REMIX,RFLX |
1 | ||
| 82171-10260 |
EP9#..3D..RFLX ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-10180 |
EP9#..3D..RFLX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-10190 |
EP9#..3D..RFLX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82171-10250 |
EP9#..CARAT,REMIX,RFLF,RFLX ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82171-10270 |
EP9#..3D..RFLX ｱﾘ(ﾑ-ﾝﾙ-ﾌ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| Common parts | ||||
| 82711-10470 | ||||
| 82711-16790 | ||||
| 82711-1E300 | ||||
| 82711-1E340 | ||||
| 82711-2A720 | ||||

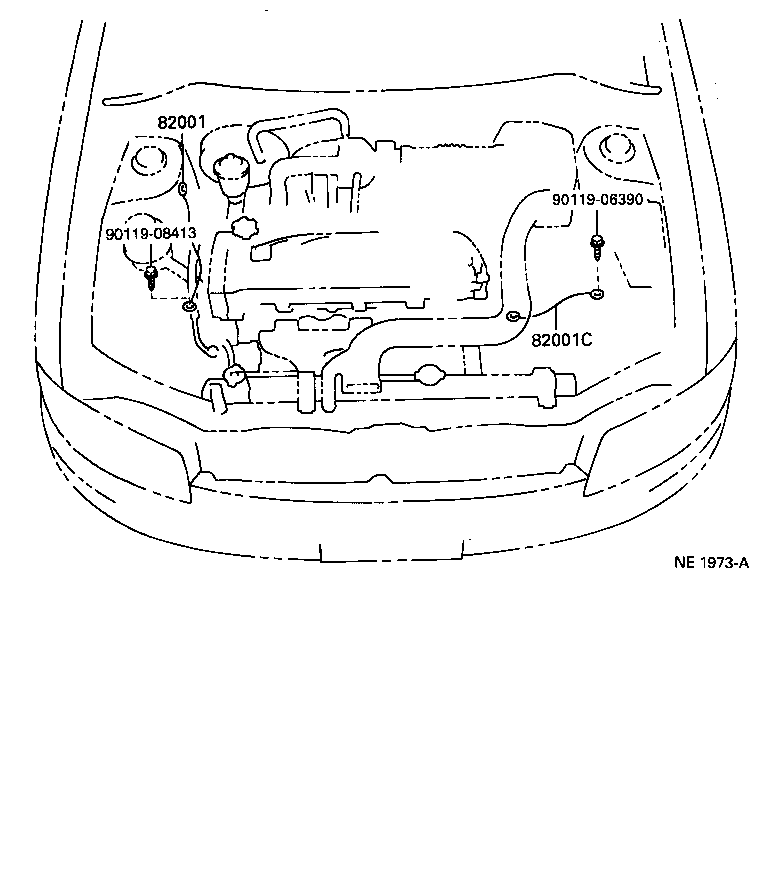

ILLUST NO. 1 OF 7(9601- )CARAT,GLZS,REMIX,RFL,RFLF,RFLX
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07241 |
EP9# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07318 |
EP9# |
1 | ||
| 90980-07318 |
EP9#,NP90 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08413 | ||||
