EP91-AGMEK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

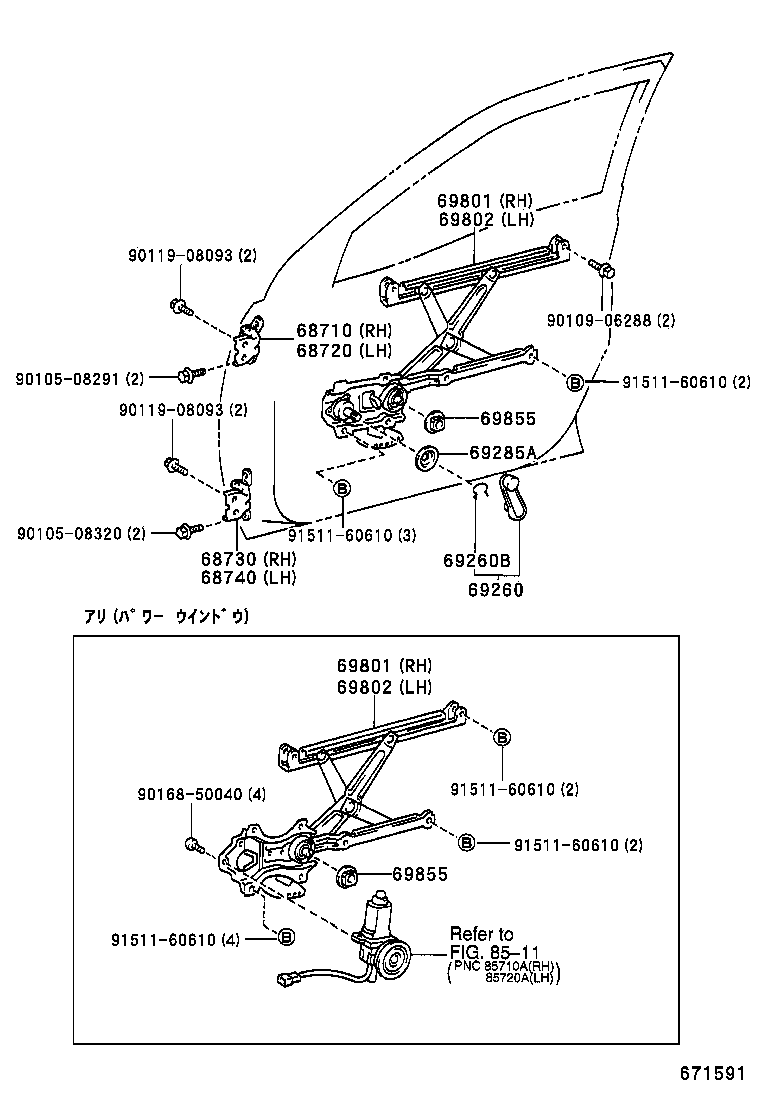

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69285A 69801 69801 69802 69802 69855 69855 9010508291 9010508320 9010906288 9011908093 9011908093 9016850040 9151160610 9151160610 9151160610 9151160610 9151160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12101

EP9#,NP90

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12101

EP9#,NP90

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-12101

EP9#,NP90

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-12101

EP9#,NP90

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-10040B4

EP9#,NP90..RFL,RFLF,RFLX

LT.BLUISH GRAY,TRIM1#

 2
69260-10040B7

EP9#,NP90..RFL,RFLF,RFLX

BLUE GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX

 2
69285A - PLATE, DOOR VENT WINDOW CONTROL HANDLE
69285-2201008

EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX

NATURAL WHITE,TRIM1#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-10140

EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX

 1
69801-10090

EP9#..3D..(GLZS,GLZV,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69801-10110

EP9#..3D..(CARAT,GLZS,GLZV,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-10140

EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX

 1
69801-10090

EP9#..3D..(GLZS,GLZV,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69801-10110

EP9#..3D..(CARAT,GLZS,GLZV,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-10150

EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX

 1
69802-10090

EP9#..3D..(GLZS,GLZV,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-10150

EP9#,NP90..GLZS,GLZV,REMIX,RFL,RFLF,RFLX

 1
69802-10090

EP9#..3D..(GLZS,GLZV,RFLF,RFLX)

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

EP9#,NP90

 2
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

EP9#,NP90

 2
Common parts
90105-08291
90105-08320
90109-06288
90119-08093
90168-50040
91511-60610
