EP91-AGHDK (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

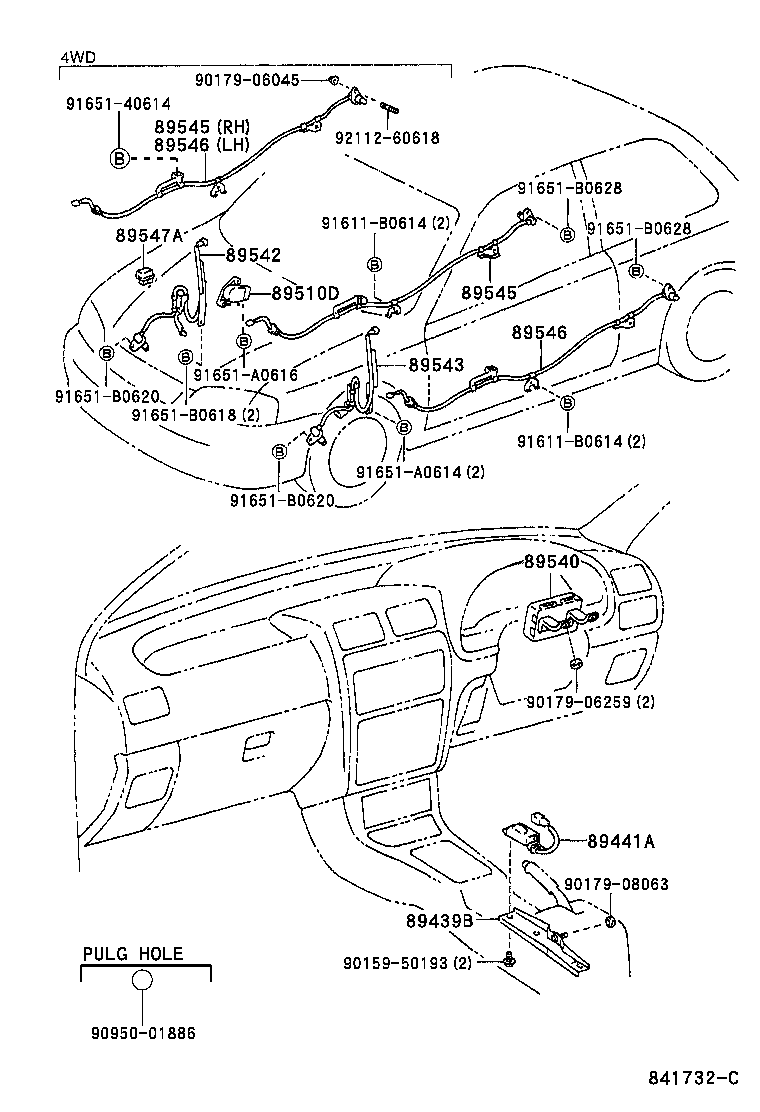

Click highlighted areas on diagram

diagram 89439B 89441A 89510D 89540 89542 89543 89545 89545 89546 89546 89547A 9015950193 9017906045 9017906259 9017908063 9095001886 91611B0614 91611B0614 9165140614 91651A0614 91651A0616 91651B0618 91651B0620 91651B0620 91651B0628 91651B0628 9211260618
Part # Description Qty Price
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-46010

EP9#,NP90

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-16110

EP91,NP90

 1
89540-10070

EP91,NP90

 1
89540-10090

EP91,NP90

 1
89542 - SENSOR, SPEED, FRONT RH
89542-10020

EP9#,NP90

 1
89543 - SENSOR, SPEED, FRONT LH
89543-10020

EP9#,NP90

 1
89545 - SENSOR, SPEED, REAR RH
89545-10020

EP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
89545 - SENSOR, SPEED, REAR RH
89545-10020

EP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
89546 - SENSOR, SPEED, REAR LH
89546-10020

EP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
89546 - SENSOR, SPEED, REAR LH
89546-10020

EP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX

 1
89547A - RELAY, SKID CONTROL W/BRACKET
88263-16010

EP9#,NP90

 1
Common parts
90159-50193
90179-06045
90179-06259
90179-08063
90950-01886
91611-B0614
91651-40614
91651-A0614
91651-A0616
91651-B0618
91651-B0620
91651-B0628
92112-60618
