EP85-AHPYU (1990)

Toyota Starlet

Production Aug 1990 - Jan 1992
Engine 4EF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )

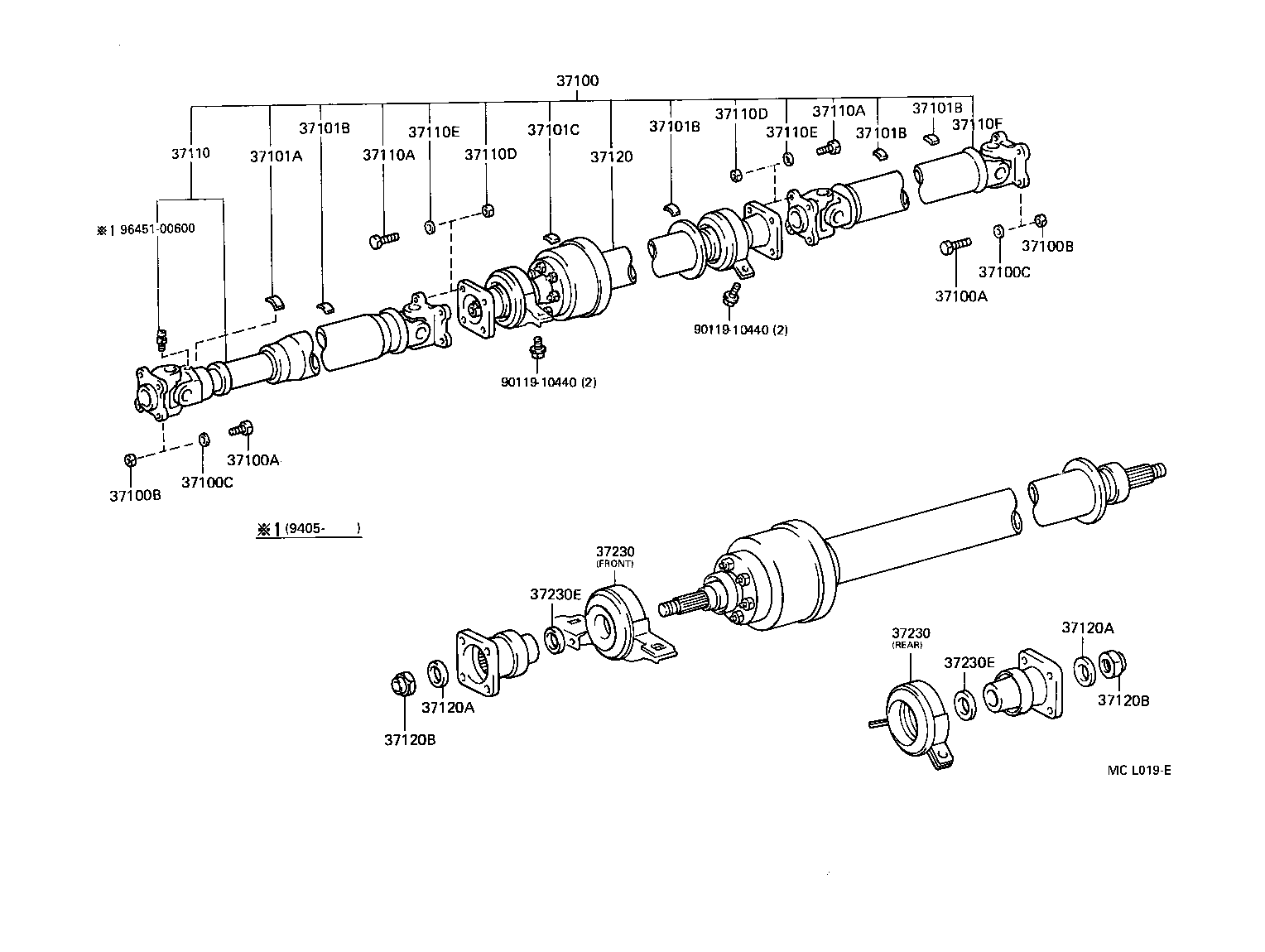

Click highlighted areas on diagram

diagram 37100 37100A 37100A 37100B 37100B 37100C 37100C 37101A 37101B 37101B 37101B 37101B 37101C 37110 37110A 37110A 37110D 37110D 37110E 37110E 37110F 37120 37120A 37120A 37120B 37120B 37230 37230 37230E 37230E 9011910440 9011910440 9645100600
Part # Description Qty Price
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-10030

EP85

REAR

 1
37230-10010

EP85

FRONT

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-10030

EP85

REAR

 1
37230-10010

EP85

FRONT

 1
Common parts
90119-10440
96451-00600
